SAXSdb — 9ui1

▼

1. Structure Basics

entry_id	9ui1
deposition_date	2025-04-15
title	transporter
keywords	Apo, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	27.27 Å
rg_electron	26.00 Å
i0	47512300.00
molecular_weight	59555.0 kDa
excluded_volume	77161 Å³
envelope_volume	97729 Å³
shell_volume	31418 Å³
envelope_diameter	93.3 Å
shell_rg	33.36 Å
envelope_rg	26.34 Å
shape_rg	26.01 Å
total_rg	26.89 Å
total_atoms	4213
n_residues	539
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	89.3 Å
rg_real	27.26 Å
rg_real_error	0.61 Å
i0_real	4.7510e+07
i0_real_error	6.5350e+05
rg_reciprocal	27.27 Å
i0_reciprocal	47510000.0000
total_estimate	0.8972
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	30.8 Å
skewness	0.338
kurtosis	-0.325
angular_range	— – 0.2900 Å⁻¹
current_alpha	0.0000
highest_alpha	7401000.0000
n_real_points	59
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.899; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.965

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Protein NRT1/ PTR FAMILY 2.10
formula_weight	71105.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4213

MKSRVILNHRDRRDKNHNNNNTNHYTQVDTMERKPLEVEPSTTTTNTDVVDSFEEEQRKIVYRGWKVMPFIIGNETFEKLGIIGTLSNLLVYLTSVFNLKSYTAATIINAFSGTINFGTFIAAFLCDTYFGRYKTLSVAVIACFLGSFVILLTAAIPSLHPVACGNKISCEGPSVGQILFLLMGLGFLVVGAGGIRPCNLAFGADQFNPKSESGKKGINSFFNWYFFTFTFAQIISLTAVVYIQSNVSWTIGLIIPVALMFLACVIFFAGDRLYVKVKASGSPLAGIARVIAAAIKKRGLKPVKQPWVNLYNHIPSNYANTTLKYTDQFRFLDKAAIMTPEEKLNSDGTASDPWKLCTLQQVEEVKCIVRVIPIWFASTIYYLAITIQMTYPVFQALQSDRRLGSGGFRIPAATYVVFLMTGMTVFIIFYDRVLVPSLRRVTGLETGISLLQRIGAGFTFAIMSLLVSGFIEERRRNFALTKPTLGMAPRTGEISSMSALWLIPQLTLAGIAEAFAAIGQMEFYYKQFPENMKSFAGSIFYVGAGVSSYLASFLISTVHRTTAHSPSGNWLAEDLNKAKLDYFYFMLTGLMVVNMAYFLLMARWYRYKGGNDEDITEIETNEEETKQQQLQDKNSV

Source

organism	Arabidopsis thaliana
common_name	thale cress
ncbi_taxonomy_id	3702
host_organism	Homo sapiens

Entity 2 non-polymer

description	(2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate
formula_weight	760.1 kDa
src_method	syn
entity_count	6

Entity 3 non-polymer

description	CHOLESTEROL
formula_weight	386.7 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.540 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.54 Å
resolution_method	—
num_particles	54982

fit	/app/data/saxs_computation/ui/9ui1/9ui1.fit
pddf	/app/data/pr_computation/ui/9ui1/9ui1.pr.out
profile	/app/data/saxs_computation/ui/9ui1/9ui1.dat

transporter

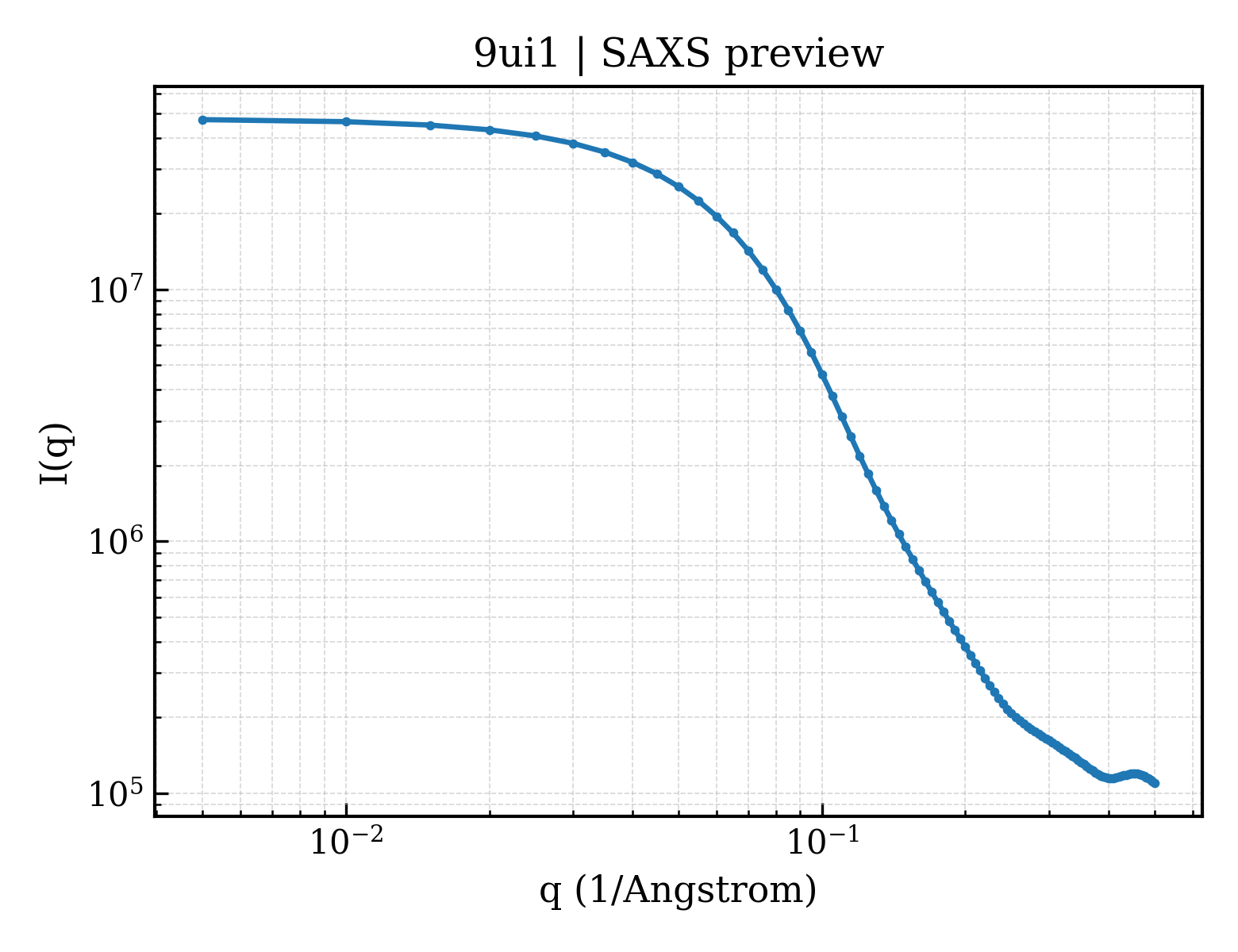

SAXS Profile

P(r) Distribution
