SAXSdb — 9ui4

▼

1. Structure Basics

entry_id	9ui4
deposition_date	2025-04-15
title	Rad51 presynaptic complex
keywords	homologous recombination, strand exchange, D-loop, RECOMBINATION, DNA BINDING PROTEIN-DNA complex; DNA BINDING PROTEIN/DNA
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	53.08 Å
rg_electron	53.20 Å
i0	1546240000.00
molecular_weight	315590.0 kDa
excluded_volume	389860 Å³
envelope_volume	541640 Å³
shell_volume	84205 Å³
envelope_diameter	194.8 Å
shell_rg	57.55 Å
envelope_rg	52.28 Å
shape_rg	53.20 Å
total_rg	53.28 Å
total_atoms	22055
n_residues	2783
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	184.3 Å
rg_real	53.18 Å
rg_real_error	1.99 Å
i0_real	1.5460e+09
i0_real_error	3.1490e+07
rg_reciprocal	52.99 Å
i0_reciprocal	1546000000.0000
total_estimate	0.8628
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	73.7 Å
skewness	0.343
kurtosis	-0.352
angular_range	— – 0.1500 Å⁻¹
current_alpha	0.0000
highest_alpha	520200000.0000
n_real_points	31
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.802; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.816

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	DNA (27-MER)
formula_weight	8147.2 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	L
atom_count	22055

TTTCGTCGCCCACGCTTTTTTTTTTTT

Entity 2 polymer

description	DNA repair protein RAD51 homolog 1
formula_weight	39557.8 kDa
mutation	S208E/A209D
src_method	man
entity_count	9

Polymer

type	polypeptide(L)
strand_id	C,B,A,F,I,E,H,D,G

MASWSHPQFEKGADDDDKVPDPMAMQMQLEASADTSVEEESFGPQPISRLEQCGINANDVKKLEEAGYHTVEAVAYAPKKELINIKGISEAKADKILTEAAKLVPMGFTTATEFHQRRSEIIQITTGSKELDKLLQGGIETGSITEMFGEFRTGKTQICHTLAVTCQLPIDRGGGEGKAMYIDTEGTFRPERLLAVAERYGLSGSDVLDNVAYARGFNTDHQTQLLYQAEDMMVESRYALLIVDSATALYRTDYSGRGELSARQMHLARFLRMLLRLADEFGVAVVITNQVVAQVDGAAMFAADPKKPIGGNIIAHASTTRLYLRKGRGETRICKIYDSPCLPEAEAMFAINADGVGDAKD

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Escherichia coli

Entity 3 non-polymer

description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
formula_weight	506.2 kDa
src_method	syn
entity_count	9

Entity 4 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	9

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.91 Å
resolution_method	—
num_particles	67329

fit	/app/data/saxs_computation/ui/9ui4/9ui4.fit
pddf	/app/data/pr_computation/ui/9ui4/9ui4.pr.out
profile	/app/data/saxs_computation/ui/9ui4/9ui4.dat

Rad51 presynaptic complex

SAXS Profile

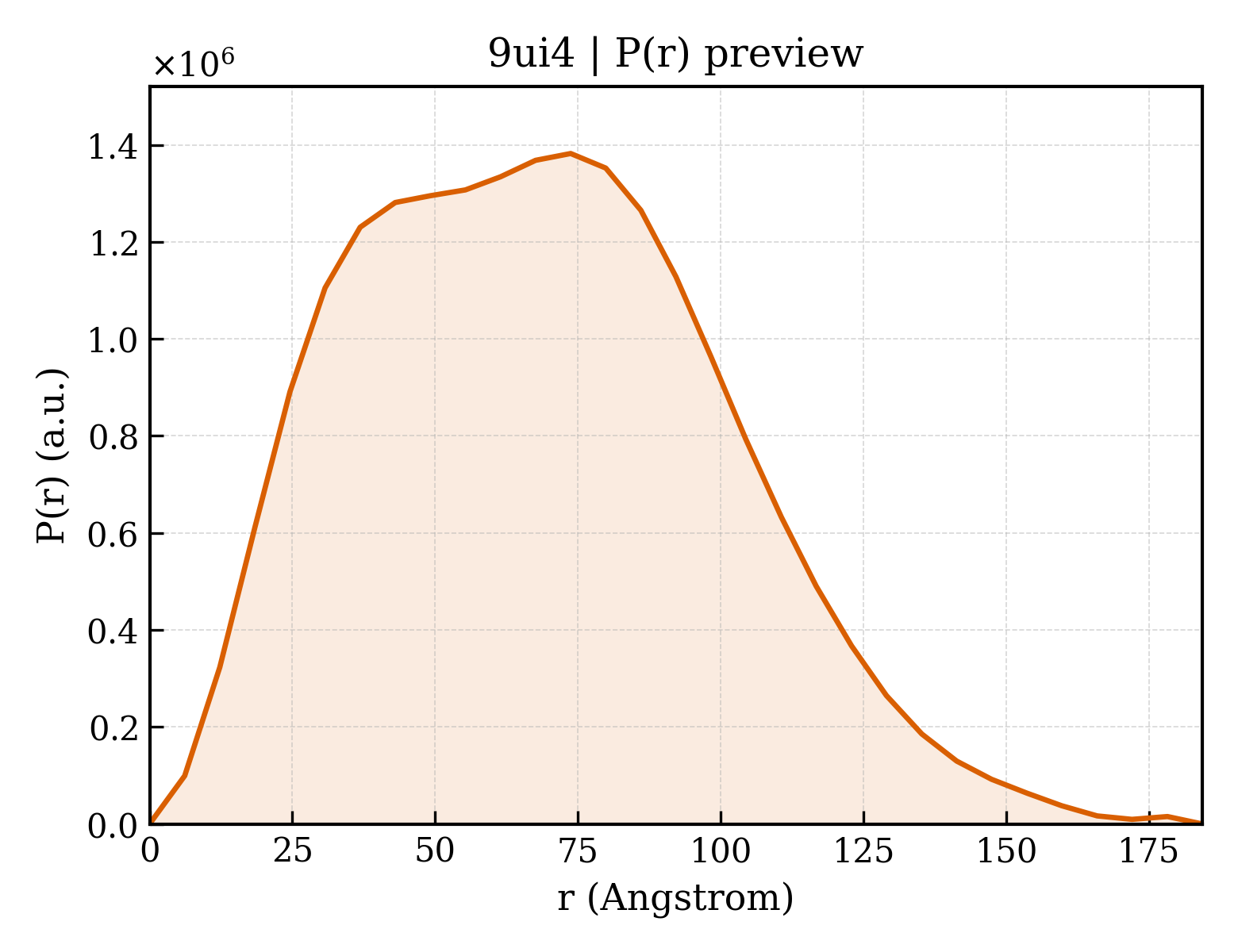

P(r) Distribution
