9ui8

structure of an 8 base pair Rad51 D-loop complex

Method: ELECTRON MICROSCOPY D_max: 186.2 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9ui8
deposition_date	2025-04-15
title	structure of an 8 base pair Rad51 D-loop complex
keywords	homologous recombination, strand exchange, D-loop, RECOMBINATION, DNA BINDING PROTEIN-DNA complex; DNA BINDING PROTEIN/DNA
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	51.20 Å
rg_electron	51.81 Å
i0	1775420000.00
molecular_weight	330330.0 kDa
excluded_volume	404810 Å³
envelope_volume	549080 Å³
shell_volume	88374 Å³
envelope_diameter	196.3 Å
shell_rg	55.27 Å
envelope_rg	51.28 Å
shape_rg	51.84 Å
total_rg	51.82 Å
total_atoms	23041
n_residues	2856
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

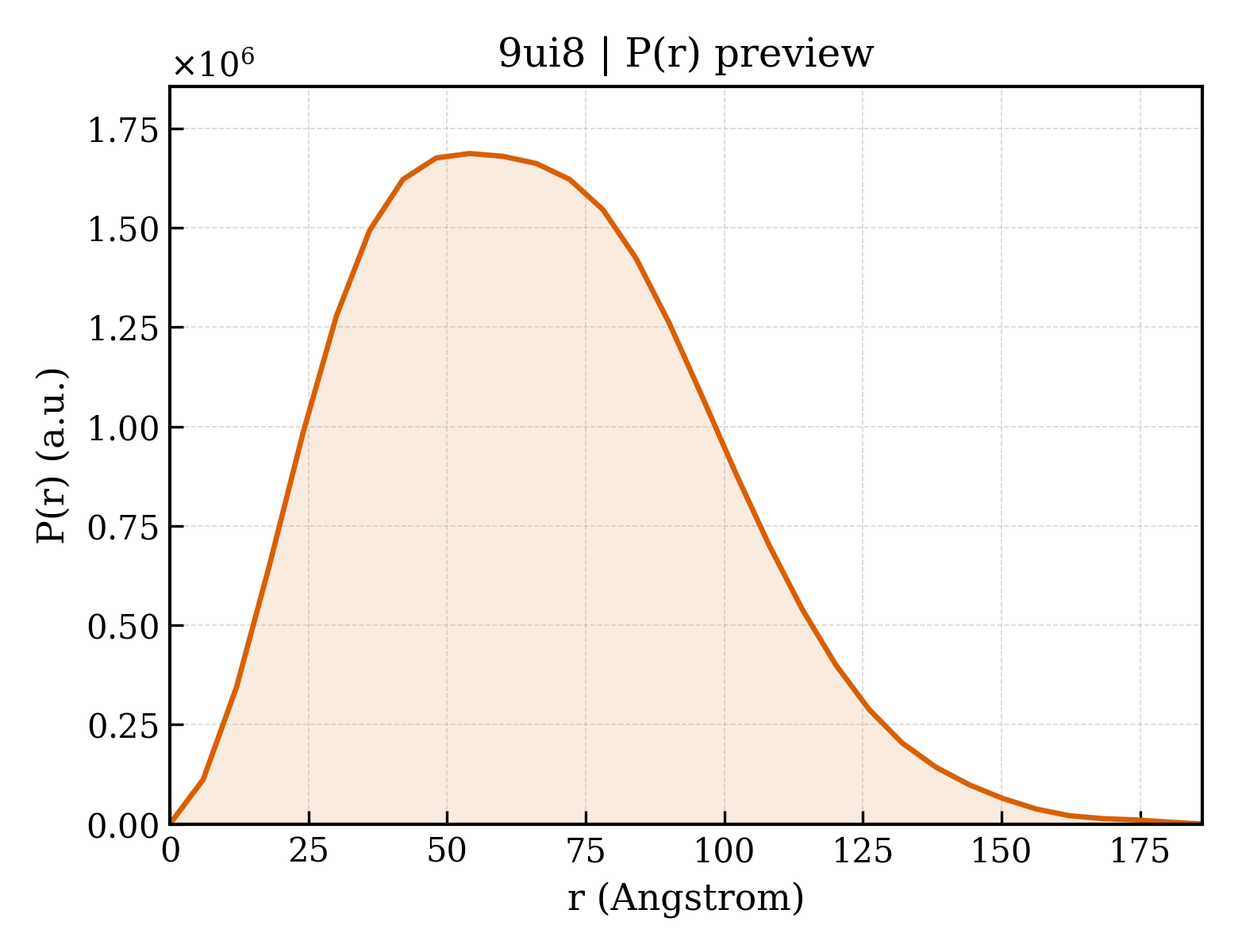

3. P(r) Analysis (GNOM)

dmax	186.2 Å
rg_real	51.30 Å
rg_real_error	1.93 Å
i0_real	1.7750e+09
i0_real_error	3.5280e+07
rg_reciprocal	51.11 Å
i0_reciprocal	1775000000.0000
total_estimate	0.8498
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	54.1 Å
skewness	0.402
kurtosis	-0.242
angular_range	— – 0.1550 Å⁻¹
current_alpha	0.0001
highest_alpha	514200000.0000
n_real_points	32
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.737; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.886; Smooth: 0.946

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	DNA repair protein RAD51 homolog 1
formula_weight	39557.8 kDa
mutation	S208E/A209D
src_method	man
entity_count	9

Polymer

type	polypeptide(L)
strand_id	E,G,C,B,A,F,I,H,D
atom_count	23041

MASWSHPQFEKGADDDDKVPDPMAMQMQLEASADTSVEEESFGPQPISRLEQCGINANDVKKLEEAGYHTVEAVAYAPKKELINIKGISEAKADKILTEAAKLVPMGFTTATEFHQRRSEIIQITTGSKELDKLLQGGIETGSITEMFGEFRTGKTQICHTLAVTCQLPIDRGGGEGKAMYIDTEGTFRPERLLAVAERYGLSGSDVLDNVAYARGFNTDHQTQLLYQAEDMMVESRYALLIVDSATALYRTDYSGRGELSARQMHLARFLRMLLRLADEFGVAVVITNQVVAQVDGAAMFAADPKKPIGGNIIAHASTTRLYLRKGRGETRICKIYDSPCLPEAEAMFAINADGVGDAKD

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Escherichia coli

Entity 2 polymer

description	DNA (27-MER)
formula_weight	8147.2 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	L

TTTTTTTTTTTTCGTCGCCCACGCTTT

Entity 3 polymer

description	DNA (48-MER)
formula_weight	14857.6 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	T

GTACTTGCTTAATTGAATAAAAGGGCGACGTAGGCTGACTCGACACCG

Entity 4 polymer

description	DNA (48-MER)
formula_weight	14720.5 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	U

CGGTGTCGAGTCAGCCTATTCTTTTTTTTTATTCAATTAAGCAAGTAC

Entity 5 non-polymer

description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
formula_weight	506.2 kDa
src_method	syn
entity_count	9

Entity 6 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	9

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.20 Å
resolution_method	—
num_particles	53493

fit	/app/data/saxs_computation/ui/9ui8/9ui8.fit
pddf	/app/data/pr_computation/ui/9ui8/9ui8.pr.out
profile	/app/data/saxs_computation/ui/9ui8/9ui8.dat
