9ujg
Crystal structure of the BTB domain mouse Keap1
SAXS Profile

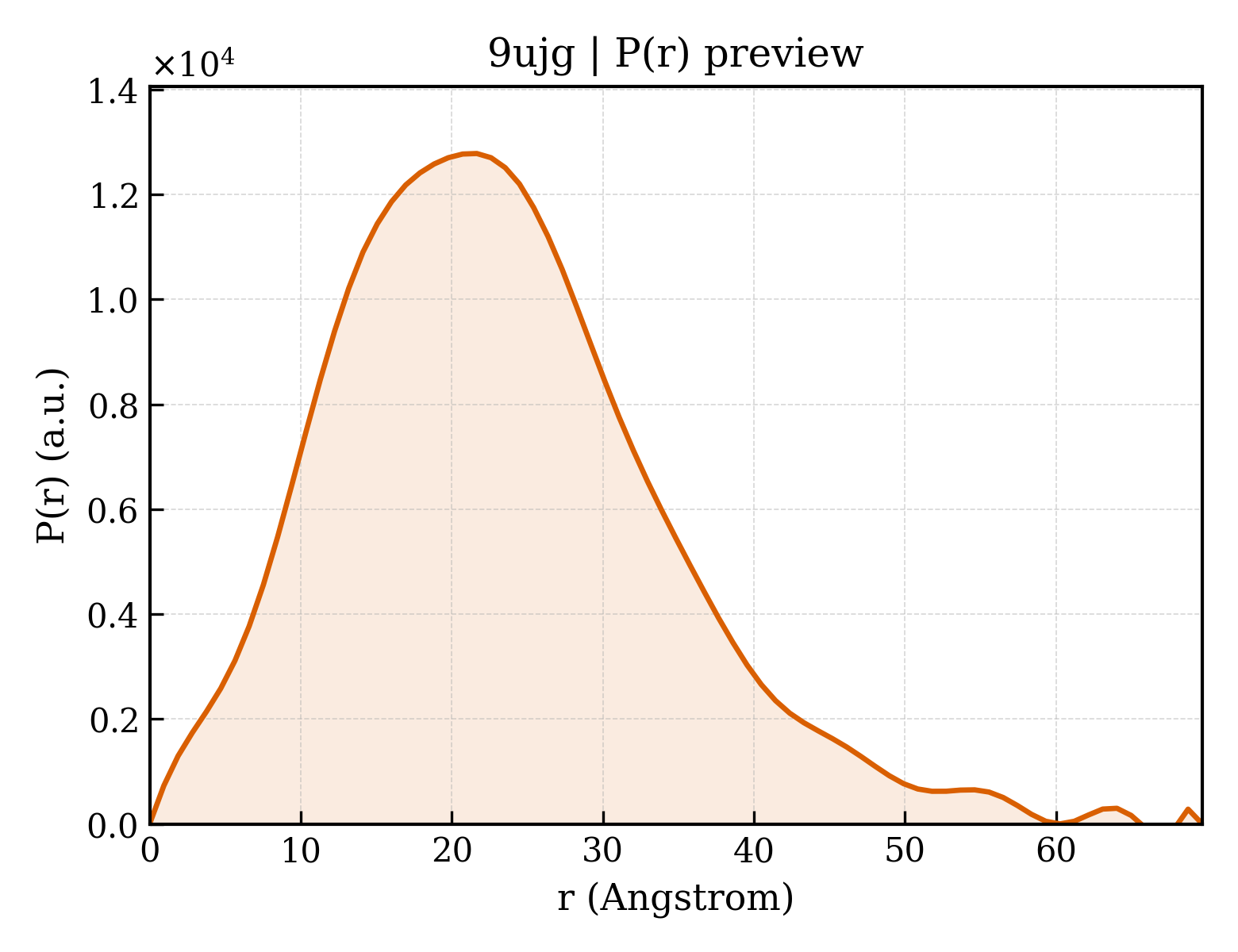

P(r) Distribution
1. Structure Basics
| entry_id | 9ujg |
| deposition_date | 2025-04-17 |
| title | Crystal structure of the BTB domain mouse Keap1 |
| keywords | stress sensor, TRANSCRIPTION; TRANSCRIPTION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.80 Å |
| rg_electron | 16.89 Å |
| i0 | 4162490.00 |
| molecular_weight | 14556.0 kDa |
| excluded_volume | 18300 ų |
| envelope_volume | 23436 ų |
| shell_volume | 12611 ų |
| envelope_diameter | 71.5 Å |
| shell_rg | 21.79 Å |
| envelope_rg | 18.21 Å |
| shape_rg | 16.91 Å |
| total_rg | 17.83 Å |
| total_atoms | 1018 |
| n_residues | 130 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 69.7 Å |
| rg_real | 17.93 Å |
| rg_real_error | 0.78 Å |
| i0_real | 4.1620e+06 |
| i0_real_error | 5.7780e+04 |
| rg_reciprocal | 17.92 Å |
| i0_reciprocal | 4162000.0000 |
| total_estimate | 0.6945 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 4 |
| r_peak_primary | 21.7 Å |
| skewness | 0.622 |
| kurtosis | 0.491 |
| angular_range | — – 0.4450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 644700.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.435; Stabil: 0.994; Sysdev: 1.000; Positv: 1.000; Valcen: 0.737; Smooth: 0.000 |
