9ujj
Crystal structure of the BTB domain mouse Keap1 in complex with CDDO-Me
SAXS Profile

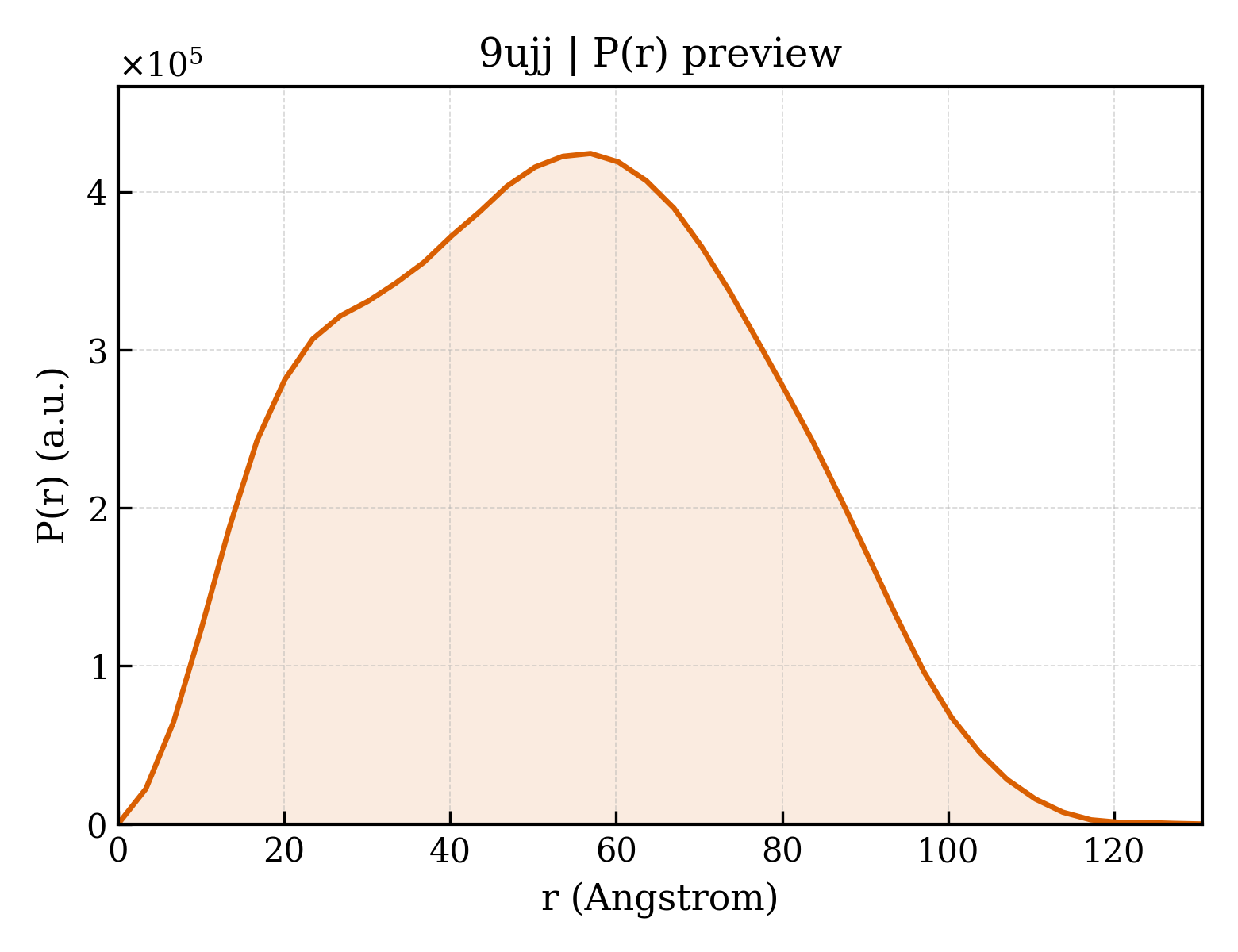

P(r) Distribution
1. Structure Basics
| entry_id | 9ujj |
| deposition_date | 2025-04-17 |
| title | Crystal structure of the BTB domain mouse Keap1 in complex with CDDO-Me |
| keywords | stress sensor, TRANSCRIPTION; TRANSCRIPTION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 40.85 Å |
| rg_electron | 40.52 Å |
| i0 | 358196000.00 |
| molecular_weight | 103640.0 kDa |
| excluded_volume | 100710 ų |
| envelope_volume | 210420 ų |
| shell_volume | 44023 ų |
| envelope_diameter | 138.2 Å |
| shell_rg | 45.62 Å |
| envelope_rg | 39.38 Å |
| shape_rg | 40.52 Å |
| total_rg | 40.75 Å |
| total_atoms | 7812 |
| n_residues | 976 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 130.6 Å |
| rg_real | 40.79 Å |
| rg_real_error | 1.48 Å |
| i0_real | 3.5820e+08 |
| i0_real_error | 6.8250e+06 |
| rg_reciprocal | 40.85 Å |
| i0_reciprocal | 358200000.0000 |
| total_estimate | 0.9007 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 1 |
| r_peak_primary | 56.9 Å |
| skewness | 0.094 |
| kurtosis | -0.743 |
| angular_range | — – 0.1950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 11770000.0000 |
| n_real_points | 40 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.934; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.961; Smooth: 0.943 |
