9ukt

CryoEM structure of the T.thermophilus transcription initiation complex bound to Gp4A-C-U and CTP, -1 dC in the template DNA strand

Method: ELECTRON MICROSCOPY D_max: 181.8 Å Quality: GOOD

SAXS Profile

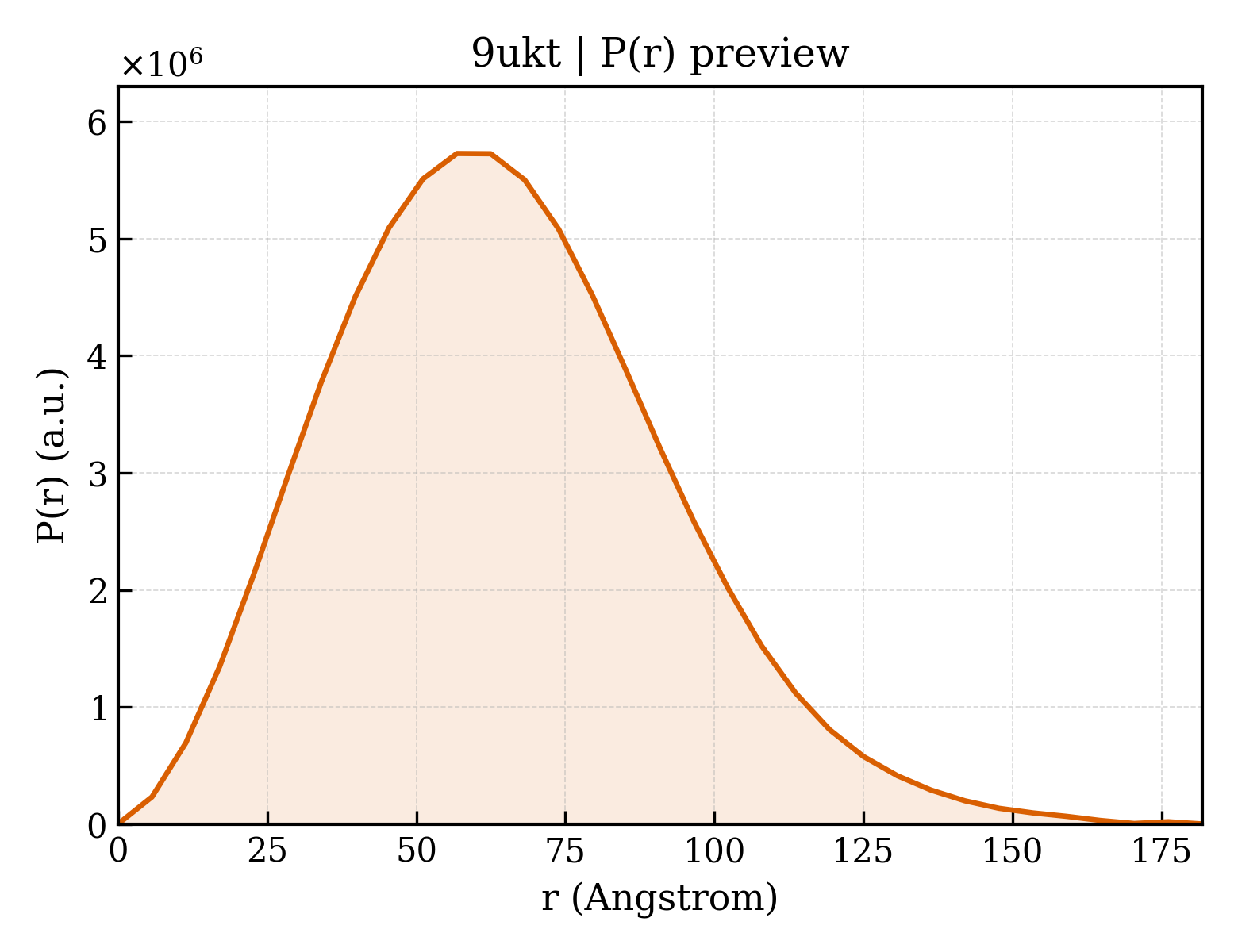

P(r) Distribution

▼

1. Structure Basics

entry_id	9ukt
deposition_date	2025-04-18
title	CryoEM structure of the T.thermophilus transcription initiation complex bound to Gp4A-C-U and CTP, -1 dC in the template DNA strand
keywords	Complex, TRANSCRIPTION; TRANSCRIPTION
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	49.42 Å
rg_electron	49.25 Å
i0	4979180000.00
molecular_weight	378920.0 kDa
excluded_volume	359660 Å³
envelope_volume	688740 Å³
shell_volume	112270 Å³
envelope_diameter	195.6 Å
shell_rg	56.01 Å
envelope_rg	49.34 Å
shape_rg	49.25 Å
total_rg	49.39 Å
total_atoms	28582
n_residues	3452
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	181.8 Å
rg_real	49.38 Å
rg_real_error	1.91 Å
i0_real	4.9790e+09
i0_real_error	8.8510e+07
rg_reciprocal	49.42 Å
i0_reciprocal	4979000000.0000
total_estimate	0.8291
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	56.8 Å
skewness	0.438
kurtosis	0.080
angular_range	— – 0.1600 Å⁻¹
current_alpha	0.0000
highest_alpha	506900000.0000
n_real_points	33
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.604; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.962

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (13)

Entity 1 polymer

description	DNA-directed RNA polymerase subunit alpha
formula_weight	35056.2 kDa
ec_number	2.7.7.6
src_method	nat
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	28608

MLDSKLKAPVFTVRTQGREYGEFVLEPLERGFGVTLGNPLRRILLSSIPGTAVTSVYIEDVLHEFSTIPGVKEDVVEIILNLKELVVRFLNPSLQTVTLLLKAEGPKEVKARDFLPVADVEIMNPDLHIATLEEGGRLNMEVRVDRGVGYVPAEKHGIKDRINAIPVDAVFSPVRRVAFQVEDTRLGQRTDLDKLTLRIWTDGSVTPLEALNQAVEILREHLTYFSNPQAAAVAAPEEAKEPEAPPEQEEELDLPLEELGLSTRVLHSLKEEGIESVRALLALNLKDLKNIPGIGERSLEEIKEALEKKGFTLKE

Entity 2 polymer

description	DNA-directed RNA polymerase subunit beta
formula_weight	125436.5 kDa
ec_number	2.7.7.6
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MEIKRFGRIREVIPLPPLTEIQVESYRRALQADVPPEKRENVGIQAAFRETFPIEEEDKGKGGLVLDFLEYRLGEPPFPQDECREKDLTYQAPLYARLQLIHKDTGLIKEDEVFLGHIPLMTEDGSFIINGADRVIVSQIHRSPGVYFTPDPARPGRYIASIIPLPKRGPWIDLEVEPNGVVSMKVNKRKFPLVLLLRVLGYDQETLARELGAYGELVQGLMDESVFAMRPEEALIRLFTLLRPGDPPKRDKAVAYVYGLIADPRRYDLGEAGRYKAEEKLGIRLSGRTLARFEDGEFKDEVFLPTLRYLFALTAGVPGHEVDDIDHLGNRRIRTVGELMTDQFRVGLARLARGVRERMLMGSEDSLTPAKLVNSRPLEAAIREFFSRSQLSQFKDETNPLSSLRHKRRISALGPGGLTRERAGFDVRDVHRTHYGRICPVETPEGANIGLITSLAAYARVDELGFIRTPYRRVVGGVVTDEVVYMTATEEDRYTIAQANTPLEGNRIAAERVVARRKGEPVIVSPEEVEFMDVSPKQVFSVNTNLIPFLEHDDANRALMGSNMQTQAVPLIRAQAPVVMTGLEERVVRDSLAALYAEEDGEVAKVDGNRIVVRYEDGRLVEYPLRRFYRSNQGTALDQRPRVVVGQRVRKGDLLADGPASENGFLALGQNVLVAIMPFDGYNFEDAIVISEELLKRDFYTSIHIERYEIEARDTKLGPERITRDIPHLSEAALRDLDEEGVVRIGAEVKPGDILVGRTSFKGESEPTPEERLLRSIFGEKARDVKDTSLRVPPGEGGIVVRTVRLRRGDPGVELKPGVREVVRVYVAQKRKLQVGDKLANRHGNKGVVAKILPVEDMPHLPDGTPVDVILNPLGVPSRMNLGQILETHLGLAGYFLGQRYISPIFDGAKEPEIKELLAQAFEVYFGKRKGEGFGVDKREVEVLRRAEKLGLVTPGKTPEEQLKELFLQGKVVLYDGRTGEPIEGPIVVGQMFIMKLYHMVEDKMHARSTGPYSLITQQPLGGKAQFGGQRFGEMEVWALEAYGAAHTLQEMLTLKSDDIEGRNAAYEAIIKGEDVPEPSVPESFRVLVKELQALALDVQTLDEKDNPVDIFEGLASKR

Entity 3 polymer

description	;DNA-directed RNA polymerase subunit beta' ;
formula_weight	170997.4 kDa
ec_number	2.7.7.6
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

MKKEVRKVRIALASPEKIRSWSYGEVEKPETINYRTLKPERDGLFDERIFGPIKDYECACGKYKRQRFEGKVCERCGVEVTKSIVRRYRMGHIELATPAAHIWFVKDVPSKIGTLLDLSATELEQVLYFSKYIVLDPKGAILNGVPVEKRQLLTDEEYRELRYGKQETYPLPPGVDALVKDGEEVVKGQELAPGVVSRLDGVALYRFPRRVRVEYVKKERAGLRLPLAAWVEKEAYKPGEILAELPEPYLFRAEEEGVVELKELEEGAFLVLRREDEPVATYFLPVGMTPLVVHGEIVEKGQPLAEAKGLLRMPRQVRAAQVEAEEEGETVYLTLFLEWTEPKDYRVQPHMNVVVPEGARVEAGDKIVAAIDPEEEVIAEAEGVVHLHEPASILVVKARVYPFEDDVEVSTGDRVAPGDVLADGGKVKSDVYGRVEVDLVRNVVRVVESYDIDARMGAEAIQQLLKELDLEALEKELLEEMKHPSRARRAKARKRLEVVRAFLDSGNRPEWMILEAVPVLPPDLRPMVQVDGGRFATSDLNDLYRRLINRNNRLKKLLAQGAPEIIIRNEKRMLQEAVDALLDNGRRGAPVTNPGSDRPLRSLTDILSGKQGRFRQNLLGKRVDYSGRSVIVVGPQLKLHQCGLPKRMALELFKPFLLKKMEEKGIAPNVKAARRMLERQRDIKDEVWDALEEVIHGKVVLLNRAPTLHRLGIQAFQPVLVEGQSIQLHPLVCEAFNADFDGDQMAVHVPLSSFAQAEARIQMLSAHNLLSPASGEPLAKPSRDIILGLYYITQVRKEKKGAGLEFATPEEALAAHERGEVALNAPIKVAGRETSVGRLKYVFANPDEALLAVAHGIVDLQDVVTVRYMGKRLETSPGRILFARIVAEAVEDEKVAWELIQLDVPQEKNSLKDLVYQAFLRLGMEKTARLLDALKYYGFTFSTTSGITIGIDDAVIPEEKKQYLEEADRKLLQIEQAYEMGFLTDRERYDQILQLWTETTEKVTQAVFKNFEENYPFNPLYVMAQSGARGNPQQIRQLCGLRGLMQKPSGETFEVPVRSSFREGLTVLEYFISSHGARKGGADTALRTADSGYLTRKLVDVTHEIVVREADCGTTNYISVPLFQPDEVTRSLRLRKRADIEAGLYGRVLAREVEVLGVRLEEGRYLSMDDVHLLIKAAEAGEIQEVPVRSPLTCQTRYGVCQKCYGYDLSMARPVSIGEAVGIVAAQSIGEPGTQLTMRTFHTGGVAGAADITQGLPRVIELFEARRPKAKAVISEIDGVVRIEETEEKLSVFVESEGFSKEYKLPKEARLLVKDGDYVEAGQPLTRGAIDPHQLLEAKGPEAVERYLVEEIQKVYRAQGVKLHDKHIEIVVRQMMKYVEVTDPGDSRLLEGQVLEKWDVEALNERLIAEGKTPVAWKPLLMGVTKSALSTKSWLSAASFQNTTHVLTEAAIAGKKDELIGLKENVILGRLIPAGTGSDFVRFTQVVDQKTLKAIEEARKEAVEAKERPAARRGVKREQPGKQA

Entity 4 polymer

description	DNA-directed RNA polymerase subunit omega
formula_weight	11533.3 kDa
ec_number	2.7.7.6
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

MAEPGIDKLFGMVDSKYRLTVVVAKRAQQLLRHGFKNTVLEPEERPKMQTLEGLFDDPNAVTWAMKELLTGRLVFGENLVPEDRLQKEMERLYPVEREE

Entity 5 polymer

description	RNA polymerase sigma factor SigA
formula_weight	50900.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	F

MGSSHHHHHHSSGLVPRGSHMMKKSKRKNAQAQEAQETEVLVQEEAEELPEFPEGEPDPDLEDPDLTLEDDLLDLPEEGEGLDLEEEEEDLPIPKISTSDPVRQYLHEIGQVPLLTLEEEVELARKVEEGMEAIKKLSEITGLDPDLIREVVRAKILGSARVRHIPGLKETLDPKTVEEIDQKLKSLPKEHKRYLHIAREGEAARQHLIEANLRLVVSIAKKYTGRGLSFLDLIQEGNQGLIRAVEKFEYKRRFKFSTYATWWIRQAINRAIADQARTIRIPVHMVETINKLSRTARQLQQELGREPTYEEIAEAMGPGWDAKRVEETLKIAQEPVSLETPIGDEKDSFYGDFIPDEHLPSPVDAATQSLLSEELEKALSKLSEREAMVLKLRKGLIDGREHTLEEVGAFFGVTRERIRQIENKALRKLKYHESRTRKLRDFLD

Source

organism	Thermus thermophilus HB8
ncbi_taxonomy_id	300852
host_organism	Escherichia coli BL21(DE3)

Entity 6 polymer

description	template DNA strand
formula_weight	14831.5 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	G

GCATCCGTGAGTCGAGGGTAATAAGCACAATTTAACACTTTTGTCAAG

Entity 7 polymer

description	non-template DNA strand
formula_weight	14863.5 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	H

CTTGACAAAAGTGTTAAATTGTGCTATACTGGGAGCCGTCACGGATGC

Entity 8 polymer

description	RNA chain
formula_weight	1400.8 kDa
src_method	syn
entity_count	1

Polymer

type	polyribonucleotide
strand_id	I

XCU

Entity 9 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	5

Entity 10 non-polymer

description	CHAPSO
formula_weight	631.9 kDa
src_method	syn
entity_count	1

Entity 11 non-polymer

description	CYTIDINE-5'-TRIPHOSPHATE
formula_weight	483.2 kDa
src_method	syn
entity_count	1

Entity 12 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	2

Entity 13 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	5

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.770 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.77 Å
resolution_method	—
num_particles	300851

fit	/app/data/saxs_computation/uk/9ukt/9ukt.fit
pddf	/app/data/pr_computation/uk/9ukt/9ukt.pr.out
profile	/app/data/saxs_computation/uk/9ukt/9ukt.dat
