9um3
CaPETaseM9 SEC loop of 6CLb variant
SAXS Profile

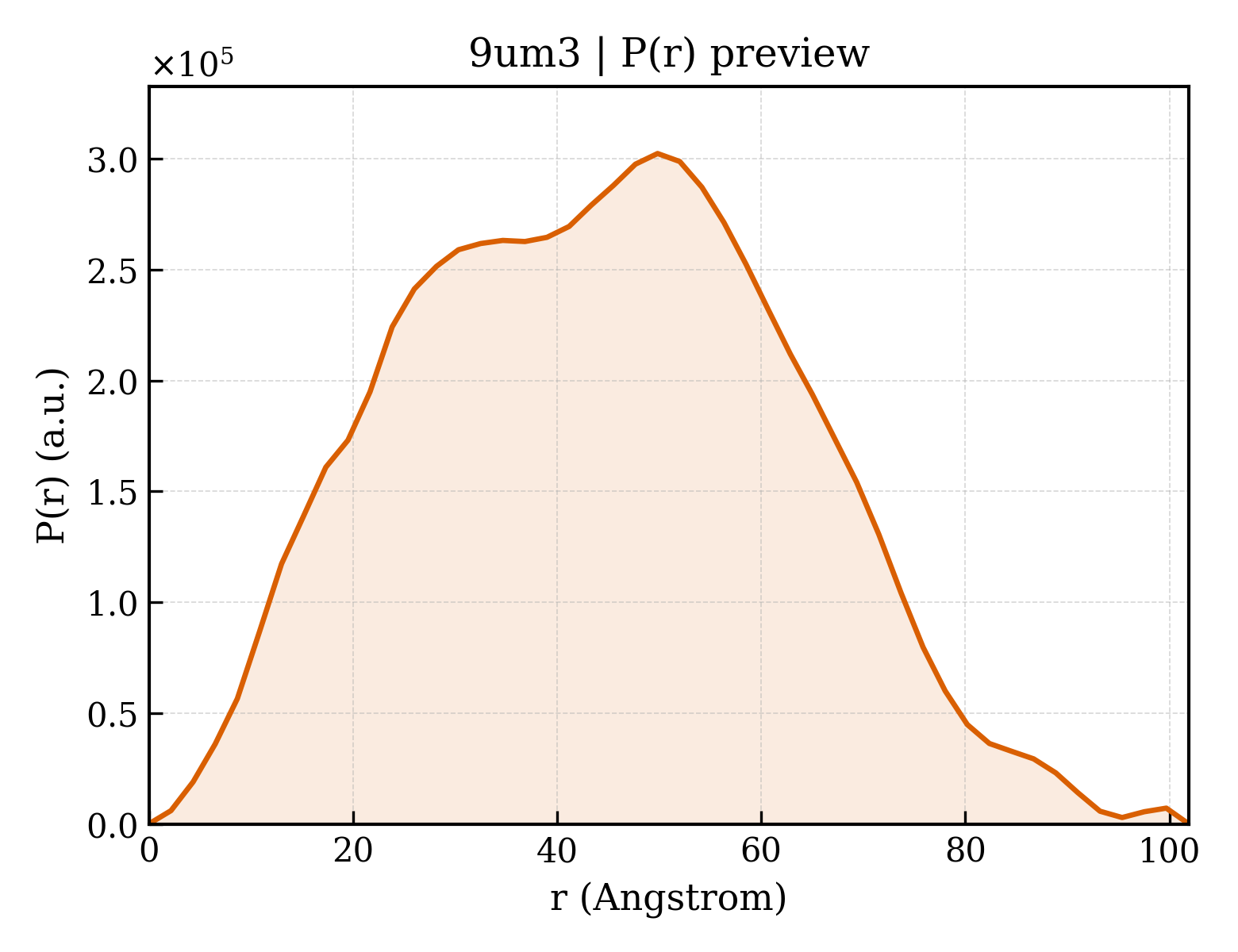

P(r) Distribution
1. Structure Basics
| entry_id | 9um3 |
| deposition_date | 2025-04-21 |
| last_revision | 2026-04-29 |
| title | CaPETaseM9 SEC loop of 6CLb variant |
| keywords | PETase, Cryptosporangium, aurantiacum, CaPETase, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 34.01 Å |
| rg_electron | 33.08 Å |
| i0 | 193540000.00 |
| molecular_weight | 110010.0 kDa |
| excluded_volume | 136800 ų |
| envelope_volume | 167750 ų |
| shell_volume | 42382 ų |
| envelope_diameter | 110.5 Å |
| shell_rg | 39.67 Å |
| envelope_rg | 32.61 Å |
| shape_rg | 33.05 Å |
| total_rg | 33.66 Å |
| total_atoms | 7759 |
| n_residues | 1018 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 101.9 Å |
| rg_real | 33.89 Å |
| rg_real_error | 0.83 Å |
| i0_real | 1.9350e+08 |
| i0_real_error | 3.4000e+06 |
| rg_reciprocal | 33.97 Å |
| i0_reciprocal | 193600000.0000 |
| total_estimate | 0.8847 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 3 |
| r_peak_primary | 49.9 Å |
| skewness | 0.125 |
| kurtosis | -0.574 |
| angular_range | — – 0.2350 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 77450000.0000 |
| n_real_points | 48 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.929; Stabil: 0.991; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.739 |
