9um4
CaPETaseM9 SEC loop of 9CL variant
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9um4 |
| deposition_date | 2025-04-21 |
| last_revision | 2026-04-29 |
| title | CaPETaseM9 SEC loop of 9CL variant |
| keywords | PETase, Cryptosporangium, aurantiacum, CaPETase, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 34.75 Å |
| rg_electron | 34.24 Å |
| i0 | 192890000.00 |
| molecular_weight | 110150.0 kDa |
| excluded_volume | 136890 ų |
| envelope_volume | 161490 ų |
| shell_volume | 40229 ų |
| envelope_diameter | 126.3 Å |
| shell_rg | 39.65 Å |
| envelope_rg | 34.16 Å |
| shape_rg | 34.23 Å |
| total_rg | 34.65 Å |
| total_atoms | 7768 |
| n_residues | 1020 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

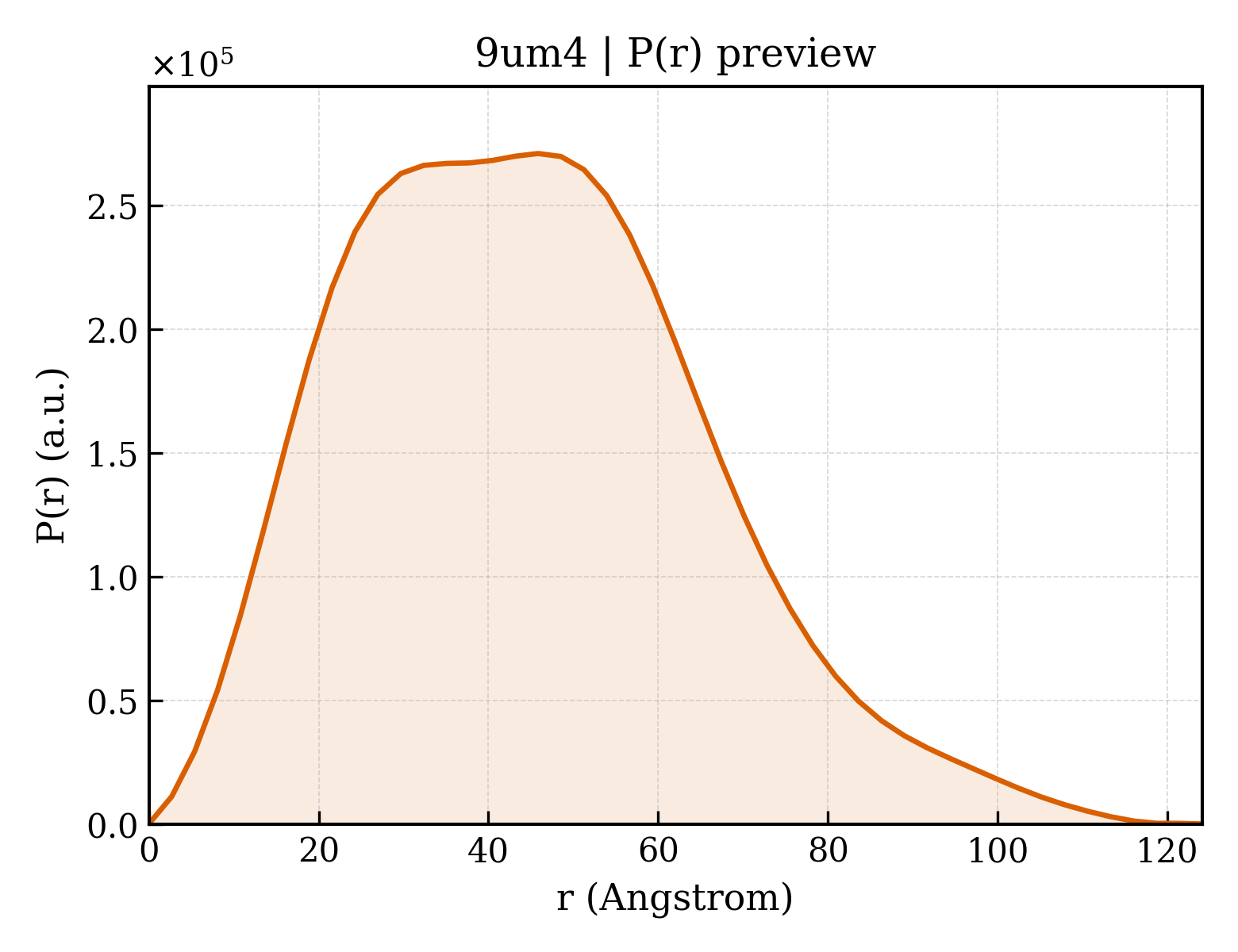

3. P(r) Analysis (GNOM)
| dmax | 124.1 Å |
| rg_real | 34.86 Å |
| rg_real_error | 1.19 Å |
| i0_real | 1.9290e+08 |
| i0_real_error | 3.5860e+06 |
| rg_reciprocal | 34.79 Å |
| i0_reciprocal | 192900000.0000 |
| total_estimate | 0.8462 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 45.9 Å |
| skewness | 0.450 |
| kurtosis | -0.119 |
| angular_range | — – 0.2300 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 110200000.0000 |
| n_real_points | 47 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.729; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.926; Smooth: 0.883 |
