9um5
CaPETaseM9 SEC loop of 10CL variant
SAXS Profile

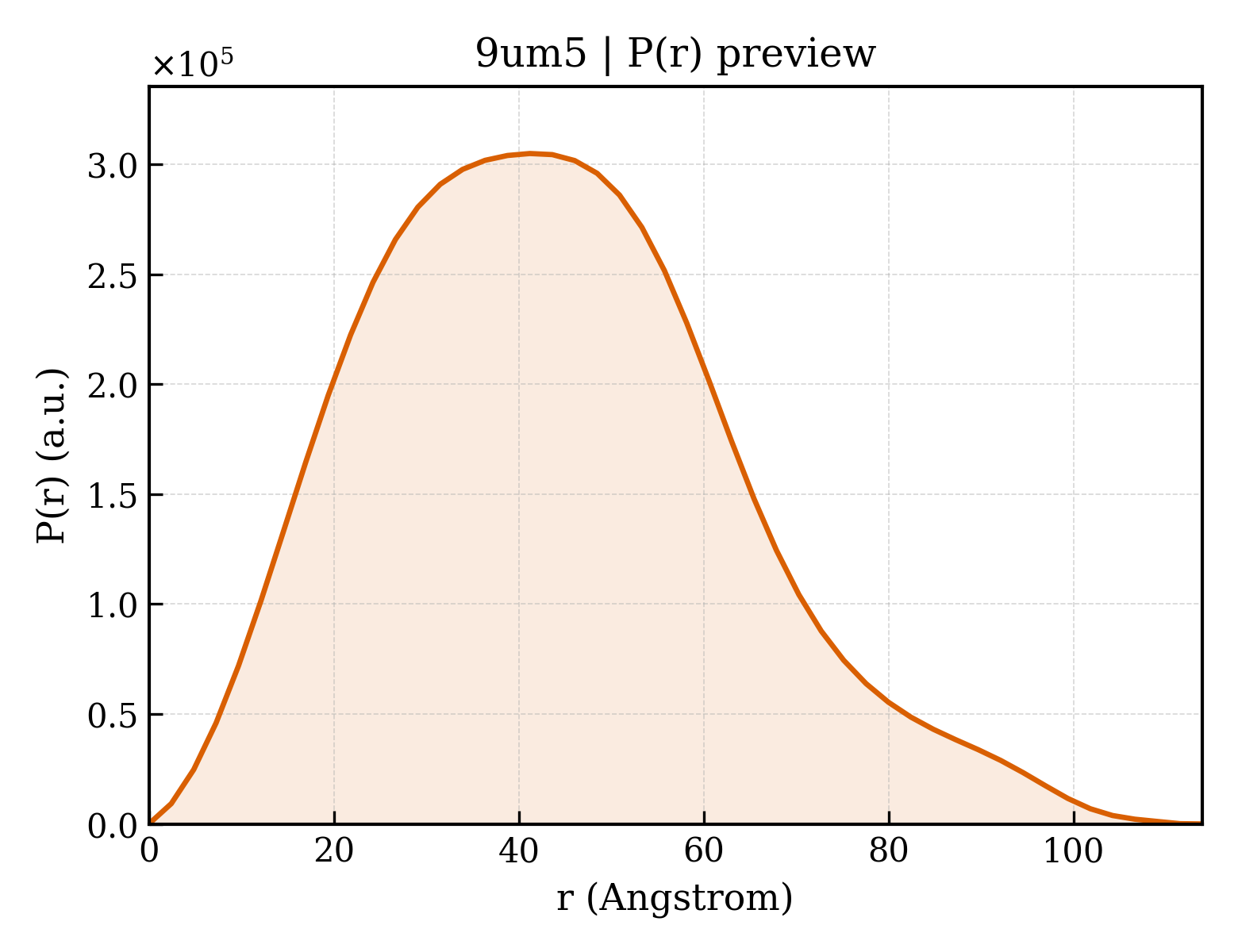

P(r) Distribution
1. Structure Basics
| entry_id | 9um5 |
| deposition_date | 2025-04-21 |
| last_revision | 2026-04-29 |
| title | CaPETaseM9 SEC loop of 10CL variant |
| keywords | PETase, Cryptosporangium, aurantiacum, CaPETase, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 33.60 Å |
| rg_electron | 33.15 Å |
| i0 | 197681000.00 |
| molecular_weight | 111720.0 kDa |
| excluded_volume | 139090 ų |
| envelope_volume | 167920 ų |
| shell_volume | 43098 ų |
| envelope_diameter | 117.2 Å |
| shell_rg | 39.10 Å |
| envelope_rg | 32.82 Å |
| shape_rg | 33.15 Å |
| total_rg | 33.58 Å |
| total_atoms | 7881 |
| n_residues | 1036 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 113.9 Å |
| rg_real | 33.64 Å |
| rg_real_error | 1.04 Å |
| i0_real | 1.9770e+08 |
| i0_real_error | 3.7260e+06 |
| rg_reciprocal | 33.62 Å |
| i0_reciprocal | 197700000.0000 |
| total_estimate | 0.8645 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 1 |
| r_peak_primary | 41.2 Å |
| skewness | 0.417 |
| kurtosis | -0.143 |
| angular_range | — – 0.2350 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 61480000.0000 |
| n_real_points | 48 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.812; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.959; Smooth: 0.840 |
