9unw

mouse PDCD5-TRiC complex

Method: ELECTRON MICROSCOPY D_max: 155.1 Å Quality: GOOD

SAXS Profile

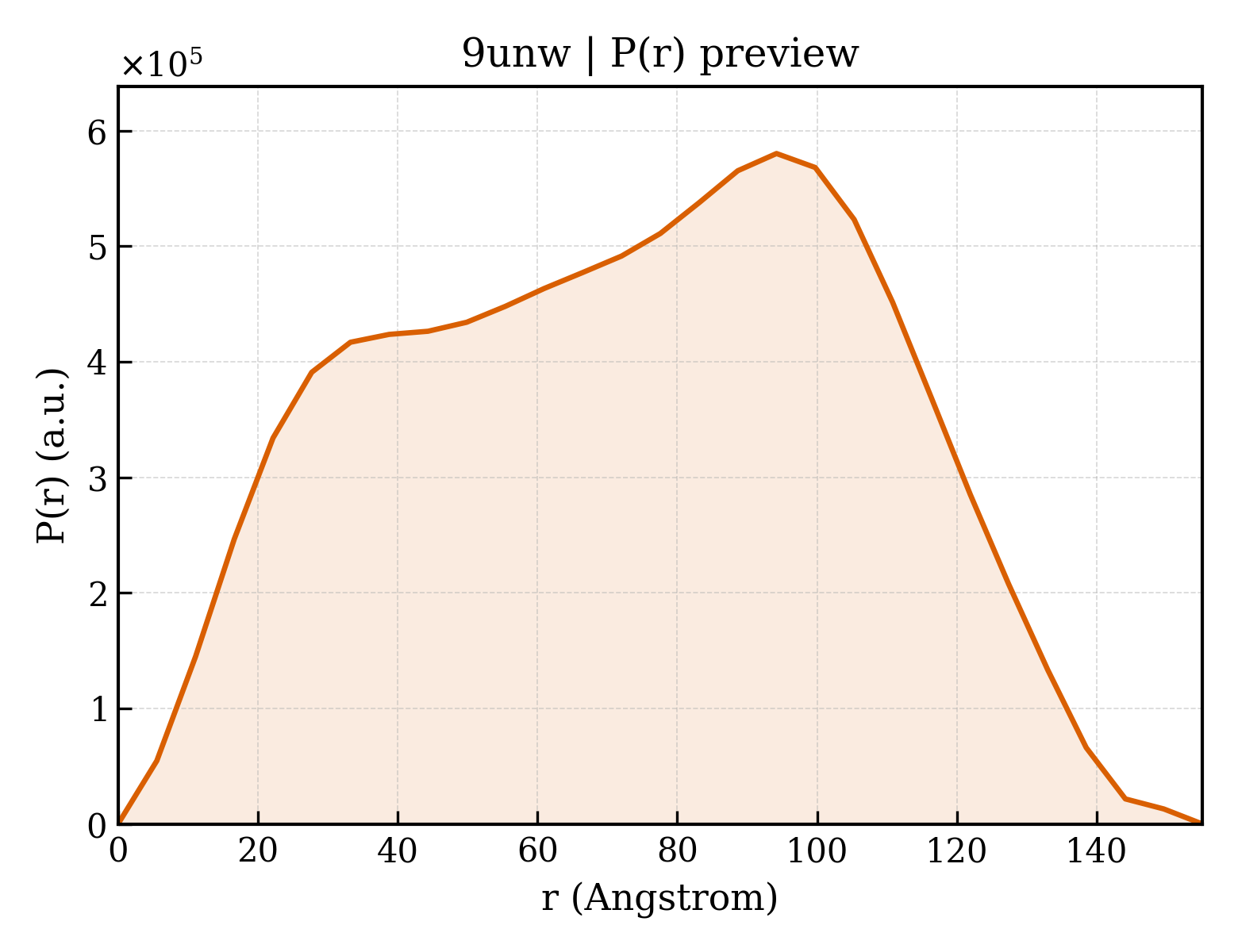

P(r) Distribution

▼

1. Structure Basics

entry_id	9unw
deposition_date	2025-04-24
title	mouse PDCD5-TRiC complex
keywords	Complex, cofactor, CHAPERONE; CHAPERONE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	56.91 Å
rg_electron	56.53 Å
i0	667147000.00
molecular_weight	217410.0 kDa
excluded_volume	273270 Å³
envelope_volume	443360 Å³
shell_volume	65184 Å³
envelope_diameter	168.4 Å
shell_rg	62.04 Å
envelope_rg	52.43 Å
shape_rg	56.57 Å
total_rg	56.54 Å
total_atoms	15218
n_residues	2020
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	155.1 Å
rg_real	56.71 Å
rg_real_error	1.16 Å
i0_real	6.6710e+08
i0_real_error	1.3010e+07
rg_reciprocal	57.03 Å
i0_reciprocal	667400000.0000
total_estimate	0.8377
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	94.2 Å
skewness	-0.080
kurtosis	-0.945
angular_range	— – 0.1400 Å⁻¹
current_alpha	0.0000
highest_alpha	20030000.0000
n_real_points	29
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.979; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.949; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (9)

Entity 1 polymer

description	T-complex protein 1 subunit alpha
formula_weight	60524.5 kDa
ec_number	3.6.1.-
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C
atom_count	15218

MEGPLSVFGDRSTGEAVRSQNVMAAASIANIVKSSFGPVGLDKMLVDDIGDVTITNDGATILKLLEVEHPAAKVLCELADLQDKEVGDGTTSVVIIAAELLKNADELVKQKIHPTSVISGYRLACKEAVRYINENLIINTDELGRDCLINAAKTSMSSKIIGINGDYFANMVVDAVLAVKYTDARGQPRYPVNSVNILKAHGRSQIESMLINGYALNCVVGSQGMPKRIVNAKIACLDFSLQKTKMKLGVQVVITDPEKLDQIRQRESDITKERIQKILATGANVILTTGGIDDMYLKYFVEAGAMAVRRVLKRDLKHVAKASGASILSTLANLEGEETFEVTMLGQAEEVVQERICDDELILIKNTKARTSASIILRGANDFMCDEMERSLHDALCVVKRVLELKSVVPGGGAVEAALSIYLENYATSMGSREQLAIAEFARSLLVIPNTLAVNAAQDSTDLVAKLRAFHNEAQVNPERKNLKWIGLDLVHGKPRDNKQAGVFEPTIVKVKSLKFATEAAITILRIDDLIKLHPESKDDKHGSYENAVHSGALDD

Entity 2 polymer

description	T-complex protein 1 subunit beta
formula_weight	57556.1 kDa
ec_number	3.6.1.-
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	G

MASLSLAPVNIFKAGADEERAETARLSSFIGAIAIGDLVKSTLGPKGMDKILLSSGRDAALMVTNDGATILKNIGVDNPAAKVLVDMSRVQDDEVGDGTTSVTVLAAELLREAESLIAKKIHPQTIISGWREATKAAREALLSSAVDHGSDEARFWQDLMNIAGTTLSSKLLTHHKDHFTKLAVEAVLRLKGSGNLEAIHVIKKLGGSLADSYLDEGFLLDKKIGVNQPKRIENAKILIANTGMDTDKIKIFGSRVRVDSTAKVAEIEHAEKEKMKEKVERILKHGINCFINRQLIYNYPEQLFGAAGVMAIEHADFAGVERLALVTGGEIASTFDHPELVKLGSCKLIEEVMIGEDKLIHFSGVALGEACTIVLRGATQQILDEAERSLHDALCVLAQTVKDPRTVYGGGCSEMLMAHAVTQLANRTPGKEAVAMESFAKALRMLPTIIADNAGYDSADLVAQLRAAHSEGHITAGLDMKEGTIGDMAVLGITESFQVKRQVLLSAAEAAEVILRVDNIIKAAPRKRVPDHHPC

Entity 3 polymer

description	T-complex protein 1 subunit gamma
formula_weight	60710.9 kDa
ec_number	3.6.1.-
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

MMGHRPVLVLSQNTKRESGRKVQSGNINAAKTIADIIRTCLGPKSMMKMLLDPMGGIVMTNDGNAILREIQVQHPAAKSMIEISRTQDEEVGDGTTSVIILAGEMLSVAEHFLEQQMHPTVVISAYRMALDDMISTLKKISTPVDVNNREMMLSIINSSITTKVISRWSSLACNIALDAVKTVQFEENGRKEIDIKKYARVEKIPGGIIEDSCVLRGVMINKDVTHPRMRRYIKNPRIVLLDSSLEYKKGESQTDIEITREEDFTRILQMEEEYIHQLCEDIIQLKPDVVITEKGISDLAQHYLMRANVTAIRRVRKTDNNRIARACGARIVSRPEELREDDVGTGAGLLEIKKIGDEYFTFITDCKDPKACTILLRGASKEILSEVERNLQDAMQVCRNVLLDPQLVPGGGASEMAVAHALTEKSKAMTGVEQWPYRAVAQALEVIPRTLIQNCGASTIRLLTSLRAKHTQESCETWGVNGETGTLVDMKELGIWEPLAVKLQTYKTAVETAVLLLRIDDIVSGHKKKGDDQNRQTGAPDAGQE

Entity 4 polymer

description	T-complex protein 1 subunit delta
formula_weight	58138.2 kDa
ec_number	3.6.1.-
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	I

MPENVASRSGAPTAGPGSRGKSAYQDRDKPAQIRFSNISAAKAVADAIRTSLGPKGMDKMIQDGKGDVTITNDGATILKQMQVLHPAARMLVELSKAQDIEAGDGTTSVVIIAGSLLDSCTKLLQKGIHPTIISESFQKALEKGLEILTDMSRPVQLSDRETLLNSATTSLNSKVVSQYSSLLSPMSVNAVMKVIDPATATSVDLRDIKIVKKLGGTIDDCELVEGLVLTQKVANSGITRVEKAKIGLIQFCLSAPKTDMDNQIVVSDYAQMDRVLREERAYILNLVKQIKKTGCNVLLIQKSILRDALSDLALHFLNKMKIMVVKDVEREDIEFICKTIGTKPVAHIDQFTADMLGSAELAEEVSLNGSGKLFKITGCTSPGKTVTIVVRGSNKLVIEEAERSIHDALCVIRCLVKKRALIAGGGAPEIELALRLTEYSRTLSGMESYCVRAFADAMEVIPSTLAENAGLNPISTVTELRNRHAQGEKTTGINVRKGGISNILEEMVVQPLLVSVSALTLATETVRSILKIDDVVNTR

Entity 5 polymer

description	T-complex protein 1 subunit epsilon
formula_weight	59704.0 kDa
ec_number	3.6.1.-
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	F

MASVGTLAFDEYGRPFLIIKDQDRKSRLMGLEALKSHIMAAKAVANTMRTSLGPNGLDKMMVDKDGDVTITNDGATILSMMDVDHQIAKLMVELSKSQDDEIGDGTTGVVVLAGALLEEAEQLLDRGIHPIRIADGYEQAARIAIQHLDKISDKVLVDINNPEPLIQTAKTTLGSKVINSCHRQMAEIAVNAVLTVADMERRDVDFELIKVEGKVGGRLEDTKLIKGVIVDKDFSHPQMPKKVVDAKIAILTCPFEPPKPKTKHKLDVMSVEDYKALQKYEKEKFEEMIKQIKETGANLAICQWGFDDEANHLLLQNGLPAVRWVGGPEIELIAIATGGRIVPRFSELTSEKLGFAGVVQEISFGTTKDKMLVIEKCKNSRAVTIFIRGGNKMIIEEAKRSLHDALCVIRNLIRDNRVVYGGGAAEISCALAVSQEADKCPTLEQYAMRAFADALEVIPMALSENSGMNPIQTMTEVRARQVKESNPALGIDCLHKGSNDMQYQHVIETLIGKKQQISLATQMVRMILKIDDIRKPGESEE

Entity 6 polymer

description	T-complex protein 1 subunit zeta
formula_weight	58086.2 kDa
ec_number	3.6.1.-
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A

MAAVKTLNPKAEVARAQAALAVNISAARGLQDVLRTNLGPKGTMKMLVSGAGDIKLTKDGNVLLHEMQIQHPTASLIAKVATAQDDITGDGTTSNVLIIGELLKQADLYISEGLHPRIITEGFEAAKEKALQFLEQVKVSKEMDRETLIDVARTSLRTKVHAELADVLTEAVVDSILAIRKKDEPIDLFMVEIMEMKHKSETDTSLIRGLVLDHGARHPDMKKRVENAYILTCNVSLEYEKTEVNSGFFYKSAEEREKLVKAERKFIEDRVKKIIELKKKVCGDSDKGFVVINQKGIDPFSLDALAKEGIVALRRAKRRNMERLTLACGGIALNSFDDLNPDCLGHAGLVYEYTLGEEKFTFIEKCNNPRSVTLLVKGPNKHTLTQIKDAIRDGLRAVKNAIDDGCVVPGAGAVEVALAEALIKYKPSVKGRAQLGVQAFADALLIIPKVLAQNSGFDLQETLVKVQAEHSESGQLVGVDLSTGEPMVAAEMGVWDNYCVKKQLLHSCTVIATNILLVDEIMRAGMSSLKG

Entity 7 polymer

description	T-complex protein 1 subunit eta
formula_weight	59727.1 kDa
ec_number	3.6.1.-
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MMPTPVILLKEGTDSSQGIPQLVSNISACQVIAEAVRTTLGPRGMDKLIVDGRGKATISNDGATILKLLDVVHPAAKTLVDIAKSQDAEVGDGTTSVTLLAAEFLKQVKPYVEEGLHPQIIIRAFRTATQLAVNKIKEIAVTVKKQDKVEQRKMLEKCAMTALSSKLISQQKVFFAKMVVDAVMMLDELLQLKMIGIKKVQGGALEESQLVAGVAFKKTFSYAGFEMQPKKYKNPKIALLNVELELKAEKDNAEIRVHTVEDYQAIVDAEWNILYDKLEKIHQSGAKVILSKLPIGDVATQYFADRDMFCAGRVPEEDLKRTMMACGGSIQTSVNALVPDVLGHCQVFEETQIGGERYNFFTGCPKAKTCTIILRGGAEQFMEETERSLHDAIMIVRRAIKNDSVVAGGGAIEMELSKYLRDYSRTIPGKQQLLIGAYAKALEIIPRQLCDNAGFDATNILNKLRARHAQGGMWYGVDINNENIADNFQAFVWEPAMVRINALTAASEAACLIVSVDETIKNPRSTVDPPAPSAGRGRGQARFH

Entity 8 polymer

description	T-complex protein 1 subunit theta
formula_weight	59625.3 kDa
ec_number	3.6.1.-
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	E

MALHVPKAPGFAQMLKDGAKHFSGLEEAVYRNIQACKELAQTTRTAYGPNGMNKMVINRLEKLFVTNDAATILRELEVQHPAAKMIVMASHMQEQEVGDGTNFVLVFAGALLELAEELLRIGLSVSEVISGYEIACKKAHEILPELVCCSAKNLRDVDEVSSLLRTSIMSKQYGSETFLAKLIAQACVSIFPDSGNFNVDNIRVCKILGSGIYSSSVLHGMVFKKETEGDVTSVKDAKIAVYSCPFDGMITETKGTVLIKTAEELMNFSKGEENLMDAQVKAIAGTGANVIVTGGKVADIALHYANKYNIMLVRLNSKWDLRRLCKTVGATALPKLTPPVQEEMGHCDSVYLSEVGDTQVVVFKHEKEDGAISTIVLRGSTDNLMDDIERAVDDGVNTFKVLTRDKRLVPGGGATEIELAKQITSYGETCPGLEQYAIKKFAEAFEAIPRALAENSGVKANEVISKLYSVHQEGNKNVGLDIEAEVPAVKDMLEASILDTYLGKYWAIKLATNAAVTVLRVDQIIMAKPAGGPKPPSGKKDWDDDQND

Entity 9 polymer

description	Programmed cell death protein 5
formula_weight	19048.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

MGSSHHHHHHSSGLVPRGSHMASMTGGQQMGRGSMADEELEALRKQRLAELQAKHGDPGDAAQQEAKQREAEMRNSILAQVLDQSARARLSNLALVKPEKTKAVENYLIQMARYGQLSGKVSEQGLIEILEKVSQQTEKKTTVKFNRRKVMDSDEDDADYGSGDYKDDDDK

Source

organism	Mus musculus
common_name	house mouse
ncbi_taxonomy_id	10090
host_organism	Escherichia coli BL21(DE3)

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.55 Å
resolution_method	—
num_particles	659930

fit	/app/data/saxs_computation/un/9unw/9unw.fit
pddf	/app/data/pr_computation/un/9unw/9unw.pr.out
profile	/app/data/saxs_computation/un/9unw/9unw.dat
