9uwz

Crystal structure of the type III secretion chaperone VecA from Vibrio parahaemolyticus

Method: X-RAY DIFFRACTION D_max: 69.3 Å Quality: GOOD

SAXS Profile

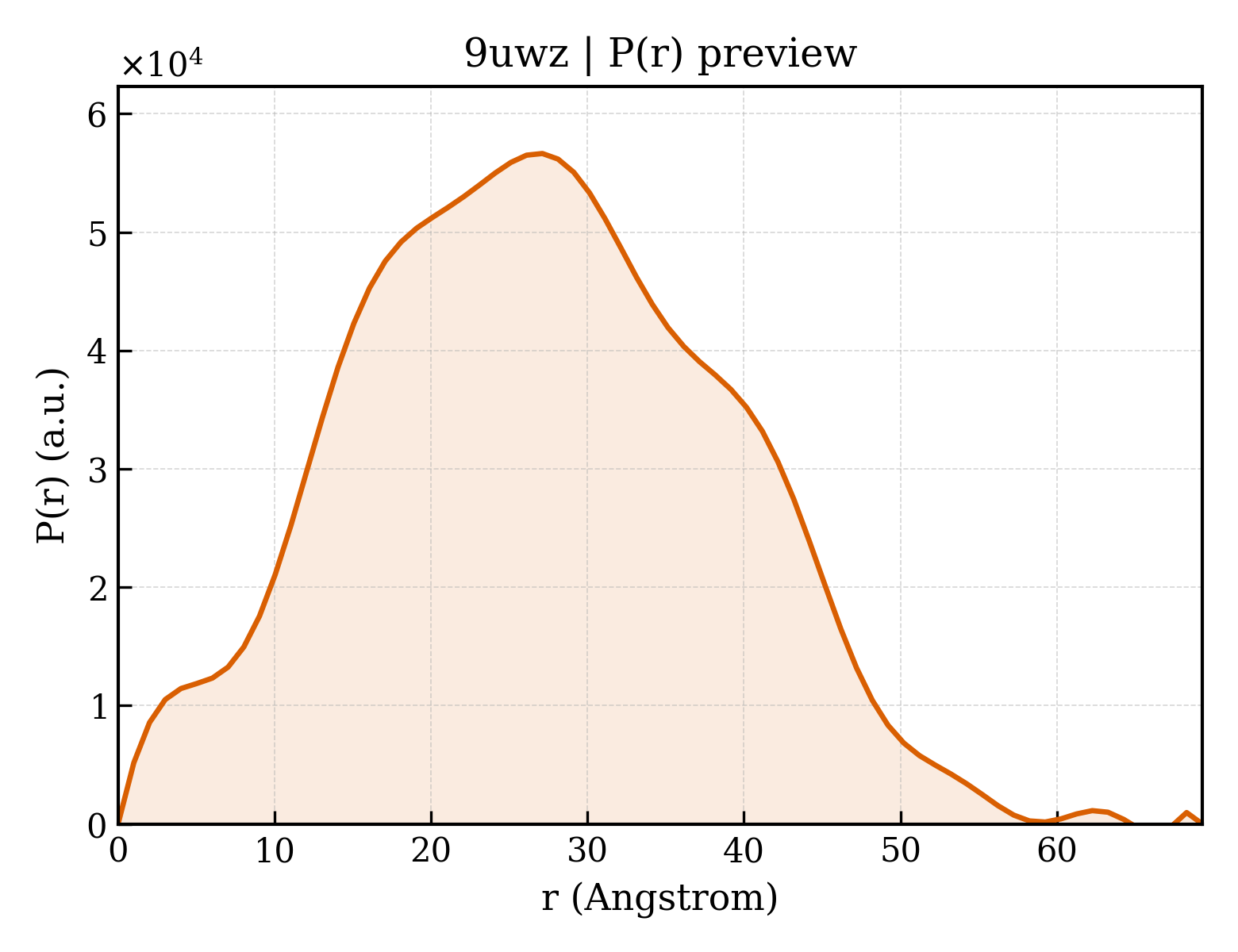

P(r) Distribution

▼

1. Structure Basics

entry_id	9uwz
deposition_date	2025-05-13
title	Crystal structure of the type III secretion chaperone VecA from Vibrio parahaemolyticus
keywords	Vibrio parahaemolyticus, Type 3 secretion system, chaperone; CHAPERONE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	20.68 Å
rg_electron	19.74 Å
i0	21787500.00
molecular_weight	31886.0 kDa
excluded_volume	37907 Å³
envelope_volume	46540 Å³
shell_volume	19948 Å³
envelope_diameter	74.3 Å
shell_rg	25.96 Å
envelope_rg	20.07 Å
shape_rg	19.64 Å
total_rg	20.79 Å
total_atoms	2119
n_residues	264
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	69.3 Å
rg_real	20.61 Å
rg_real_error	0.59 Å
i0_real	2.1790e+07
i0_real_error	3.0220e+05
rg_reciprocal	20.62 Å
i0_reciprocal	21790000.0000
total_estimate	0.7786
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	27.1 Å
skewness	0.108
kurtosis	-0.455
angular_range	— – 0.3850 Å⁻¹
current_alpha	0.0000
highest_alpha	369500.0000
n_real_points	70
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.708; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	CesT family type III secretion system chaperone
formula_weight	17553.8 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	2137

GPLGSMNTIQPLLDEFCRLNELPPLILEDGNRCQLLVDDRFVLYFTATEDDALMLSVAFGGLEKSGELRVRGLELLARANYQRVGSGNLALSLAPNGRQLVLAGRQPTEHLNSANLTVWFHEIIEQTELWQARFAMLDQDLSATSNHEQSHVQPLRV

Source

organism	Vibrio parahaemolyticus
ncbi_taxonomy_id	670
host_organism	Escherichia coli

Entity 2 non-polymer

description	PHOSPHATE ION
formula_weight	95.0 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	HEXATANTALUM DODECABROMIDE
formula_weight	2044.5 kDa
src_method	nat
entity_count	1

Entity 4 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	18

▶

6. Citations (1)

▶

length_a	73.754 Å
length_b	73.754 Å
length_c	109.906 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	16

space_group	P 41 21 2
int_tables_number	92
crystal_system	tetragonal

resolution	2.200 Å
resolution_low	32.810 Å
r_factor	0.2448
r_work	0.2393
r_free	0.2949
