9uze

Crystal structure of Kasokero virus cap- snatching endonuclease (E682A mutant)

Method: X-RAY DIFFRACTION D_max: 123.6 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9uze
deposition_date	2025-05-16
title	Crystal structure of Kasokero virus cap- snatching endonuclease (E682A mutant)
keywords	cap-snatching endonuclease, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	35.86 Å
rg_electron	36.45 Å
i0	86764700.00
molecular_weight	74371.0 kDa
excluded_volume	92999 Å³
envelope_volume	122590 Å³
shell_volume	31804 Å³
envelope_diameter	131.5 Å
shell_rg	37.64 Å
envelope_rg	36.35 Å
shape_rg	36.43 Å
total_rg	36.60 Å
total_atoms	5238
n_residues	677
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

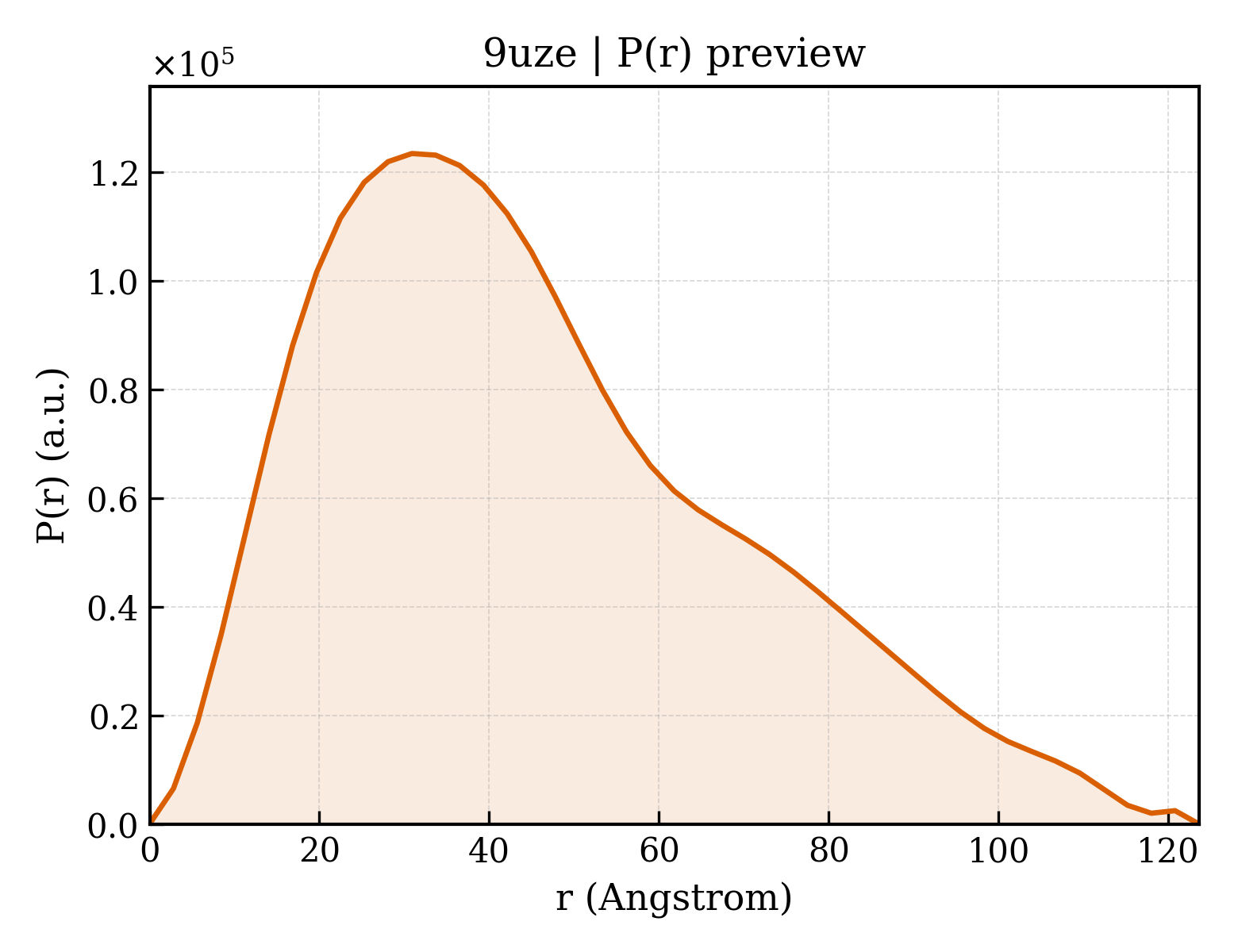

3. P(r) Analysis (GNOM)

dmax	123.6 Å
rg_real	36.41 Å
rg_real_error	1.38 Å
i0_real	8.6760e+07
i0_real_error	1.4870e+06
rg_reciprocal	36.07 Å
i0_reciprocal	86740000.0000
total_estimate	0.7581
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	30.9 Å
skewness	0.652
kurtosis	-0.210
angular_range	— – 0.2200 Å⁻¹
current_alpha	0.0000
highest_alpha	7594000.0000
n_real_points	45
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.665; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.546; Smooth: 0.310

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	RNA-directed RNA polymerase L
formula_weight	34297.0 kDa
ec_number	2.7.7.48
mutation	E682A
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	5414

GPLGSKKPIALICAELYKPFQDLFAALPKDCSEECQTLFEDIRNSESHASAWSSALRIKGVAYEGFFSLTNSWRYIPADLKPTLGMAIQTVFPDKFEKFLERTHLHPEYRDFTPDYLMCRSRIFKSDRLNRSNVAVSRGKDKGGKKKETTVNKDQDDDAQSAVLLSHKKRFPMPEIAVQEVSSVSAVVDRFKSKSSEKGRPIRQEESRPKTESMQEDIEVDELLIVEVGYQTDIEGKVISDIEKWKGVVNLMSHLGIKVNVLTCADNSQTPRTDWWIDEKYVRLLLNSISYLFKELLENS

Source

organism	Kasokero virus
ncbi_taxonomy_id	1712570
host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

description	mAb 2E9 Fab heavy chain
formula_weight	24722.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

EVKLEESGGGLVRPGGSRKLSCAASGFTFSSYGMQWVRQAPEKGLEWVAYISSGSRTIYYADTVKGRFTISRDNPKNTLFLQMTSLRSEDTAMYYCATGYGGTWFAYWGQGTLVTVSAASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHHHHHH

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Homo sapiens

Entity 3 polymer

description	mAb 2E9 Fab light chain
formula_weight	23971.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L

QIVLSQSPLSLPVSLGDQASISCRSSQSLLHSNGNTYLHWYLQKPGQSPKLLIYKVSNRFSGVPDRFSGSGSGTDFTLKISRVEAEDLGVYFCSQSTHVPYTFGGGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Homo sapiens

Entity 4 non-polymer

description	MANGANESE (II) ION
formula_weight	54.9 kDa
src_method	syn
entity_count	1

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	176

▶

6. Citations (1)

▶

length_a	37.176 Å
length_b	81.108 Å
length_c	115.871 Å
angle_alpha	90.00 °
angle_beta	93.38 °
angle_gamma	90.00 °
z_pdb	2

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.410 Å
resolution_low	29.850 Å
r_factor	0.1810
r_work	0.1782
r_free	0.2334

fit	/app/data/saxs_computation/uz/9uze/9uze.fit
pddf	/app/data/pr_computation/uz/9uze/9uze.pr.out
profile	/app/data/saxs_computation/uz/9uze/9uze.dat
