9uzi

Crystal structure of Kasokero virus cap- snatching endonuclease in complex with baloxavir acid (BXA)

Method: X-RAY DIFFRACTION D_max: 122.8 Å Quality: GOOD

SAXS Profile

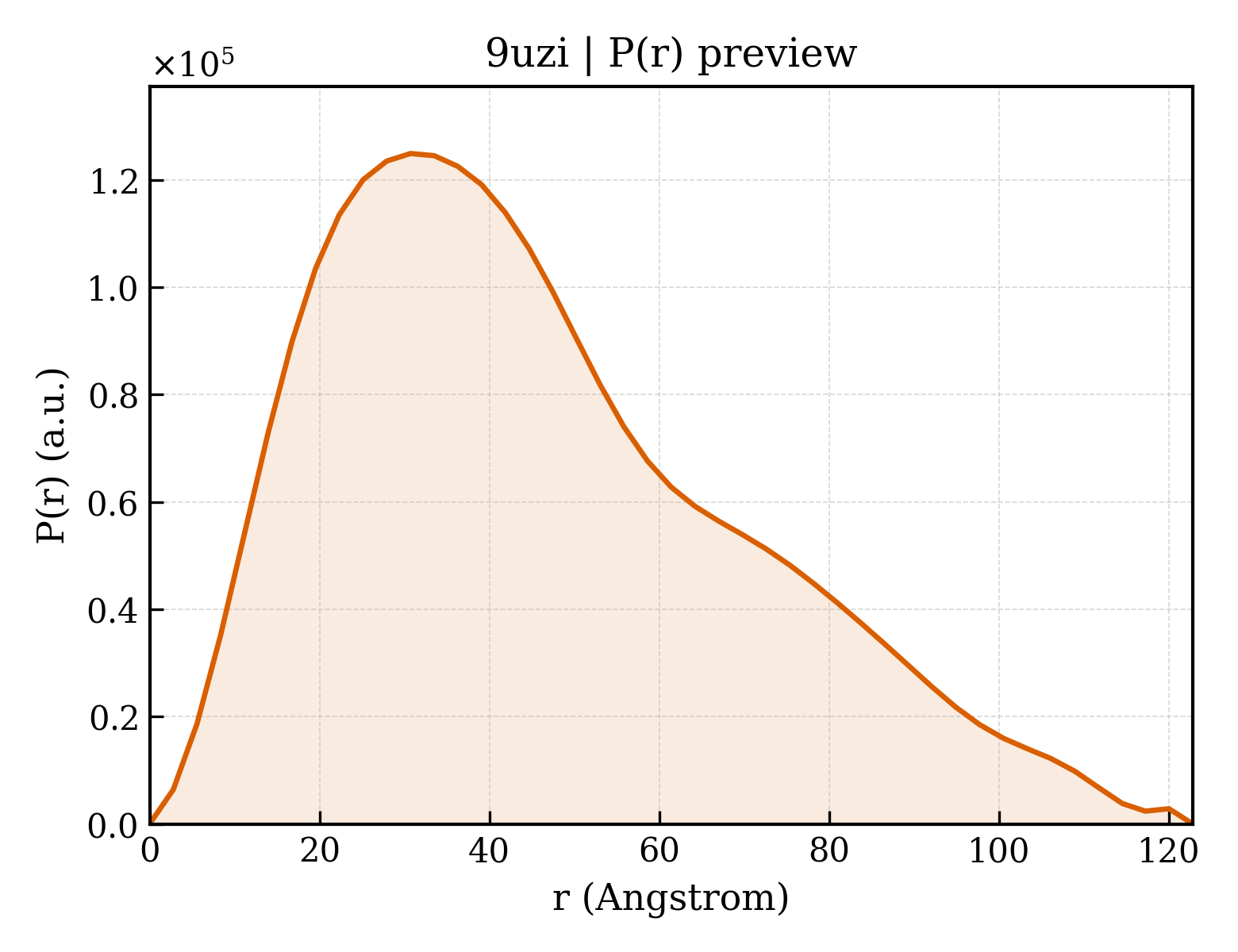

P(r) Distribution

▼

1. Structure Basics

entry_id	9uzi
deposition_date	2025-05-16
title	Crystal structure of Kasokero virus cap- snatching endonuclease in complex with baloxavir acid (BXA)
keywords	cap-snatching endonuclease, HYDROLASE; HYDROLASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	35.87 Å
rg_electron	36.45 Å
i0	88207900.00
molecular_weight	75049.0 kDa
excluded_volume	93805 Å³
envelope_volume	123320 Å³
shell_volume	31867 Å³
envelope_diameter	130.1 Å
shell_rg	37.77 Å
envelope_rg	36.42 Å
shape_rg	36.44 Å
total_rg	36.60 Å
total_atoms	5283
n_residues	677
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	122.8 Å
rg_real	36.42 Å
rg_real_error	1.39 Å
i0_real	8.8210e+07
i0_real_error	1.5720e+06
rg_reciprocal	36.08 Å
i0_reciprocal	88180000.0000
total_estimate	0.7597
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	30.7 Å
skewness	0.644
kurtosis	-0.238
angular_range	— – 0.2200 Å⁻¹
current_alpha	0.0000
highest_alpha	7906000.0000
n_real_points	45
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.672; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.546; Smooth: 0.311

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	RNA-directed RNA polymerase L
formula_weight	34355.0 kDa
ec_number	2.7.7.48
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	5662

GPLGSKKPIALICAELYKPFQDLFAALPKDCSEECQTLFEDIRNSESHASAWSSALRIKGVAYEGFFSLTNSWRYIPEDLKPTLGMAIQTVFPDKFEKFLERTHLHPEYRDFTPDYLMCRSRIFKSDRLNRSNVAVSRGKDKGGKKKETTVNKDQDDDAQSAVLLSHKKRFPMPEIAVQEVSSVSAVVDRFKSKSSEKGRPIRQEESRPKTESMQEDIEVDELLIVEVGYQTDIEGKVISDIEKWKGVVNLMSHLGIKVNVLTCADNSQTPRTDWWIDEKYVRLLLNSISYLFKELLENS

Source

organism	Kasokero virus
ncbi_taxonomy_id	1712570
host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

description	mAb 2E9 Fab heavy chain
formula_weight	24722.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

EVKLEESGGGLVRPGGSRKLSCAASGFTFSSYGMQWVRQAPEKGLEWVAYISSGSRTIYYADTVKGRFTISRDNPKNTLFLQMTSLRSEDTAMYYCATGYGGTWFAYWGQGTLVTVSAASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHHHHHH

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Homo sapiens

Entity 3 polymer

description	mAb 2E9 Fab light chain
formula_weight	23971.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L

QIVLSQSPLSLPVSLGDQASISCRSSQSLLHSNGNTYLHWYLQKPGQSPKLLIYKVSNRFSGVPDRFSGSGSGTDFTLKISRVEAEDLGVYFCSQSTHVPYTFGGGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source

organism	Mus musculus
ncbi_taxonomy_id	10090
host_organism	Homo sapiens

Entity 4 non-polymer

description	MANGANESE (II) ION
formula_weight	54.9 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	Baloxavir acid
formula_weight	483.5 kDa
src_method	syn
entity_count	1

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	379

▶

6. Citations (1)

▶

length_a	37.514 Å
length_b	80.108 Å
length_c	115.756 Å
angle_alpha	90.00 °
angle_beta	93.41 °
angle_gamma	90.00 °
z_pdb	2

space_group	P 1 21 1
int_tables_number	4
crystal_system	—

resolution	2.160 Å
resolution_low	26.020 Å
r_factor	0.1763
r_work	0.1736
r_free	0.2271

fit	/app/data/saxs_computation/uz/9uzi/9uzi.fit
pddf	/app/data/pr_computation/uz/9uzi/9uzi.pr.out
profile	/app/data/saxs_computation/uz/9uzi/9uzi.dat
