membrane protein S6A8 apo

Method: ELECTRON MICROSCOPY D_max: 71.2 Å Quality: EXCELLENT

SAXS Profile

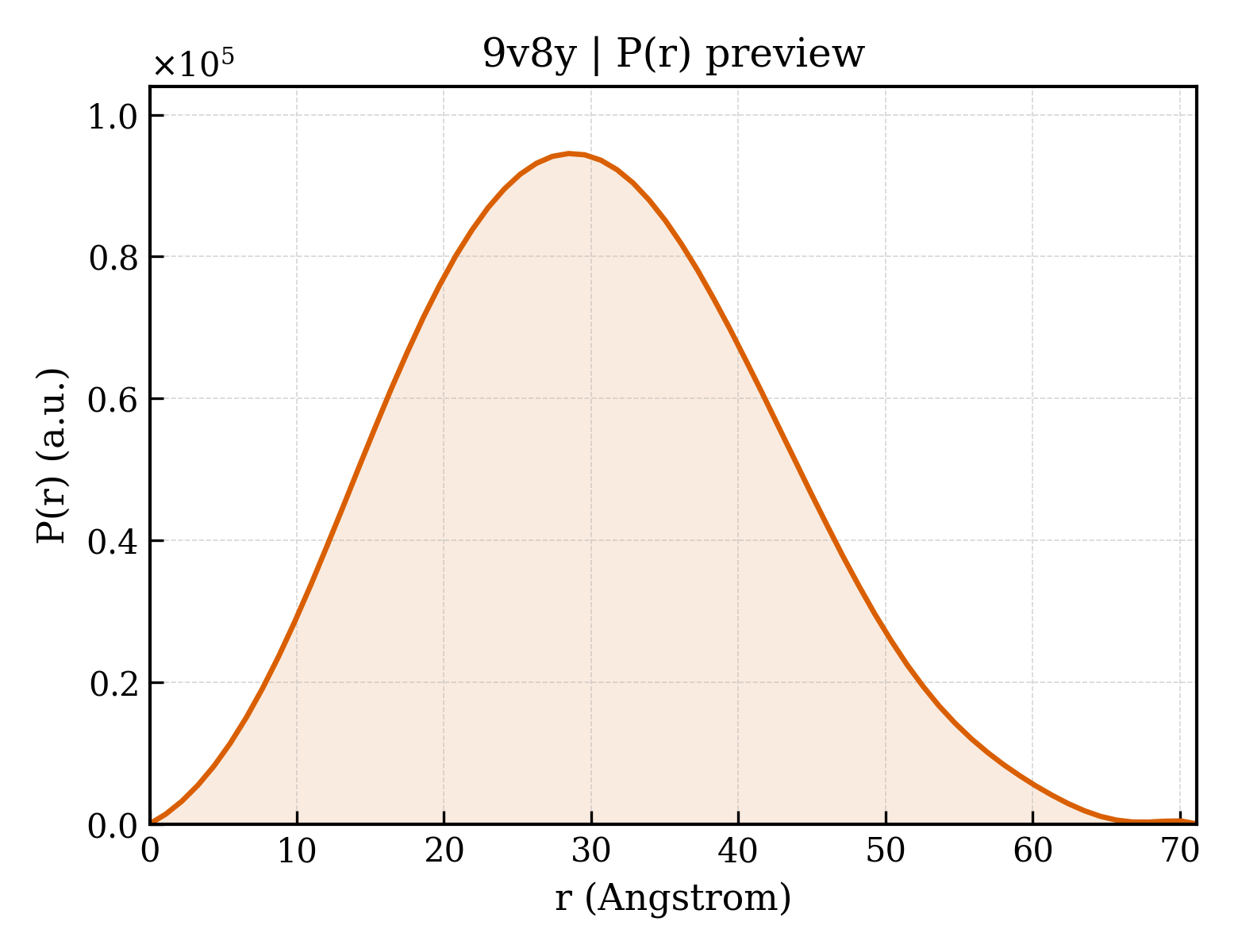

P(r) Distribution

▼

1. Structure Basics

entry_id	9v8y
deposition_date	2025-05-30
title	membrane protein S6A8 apo
keywords	membrane protein S6A8 apo, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	22.95 Å
rg_electron	21.93 Å
i0	37872500.00
molecular_weight	53343.0 kDa
excluded_volume	68999 Å³
envelope_volume	79473 Å³
shell_volume	28950 Å³
envelope_diameter	74.6 Å
shell_rg	29.97 Å
envelope_rg	22.26 Å
shape_rg	21.90 Å
total_rg	23.04 Å
total_atoms	3766
n_residues	476
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	71.2 Å
rg_real	22.83 Å
rg_real_error	0.35 Å
i0_real	3.7870e+07
i0_real_error	4.4660e+05
rg_reciprocal	22.86 Å
i0_reciprocal	37870000.0000
total_estimate	0.9012
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	28.5 Å
skewness	0.191
kurtosis	-0.401
angular_range	— – 0.3450 Å⁻¹
current_alpha	0.0000
highest_alpha	9582000.0000
n_real_points	66
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.911; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.992

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Sodium- and chloride-dependent creatine transporter 1
formula_weight	70568.3 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3766

MAKKSAENGIYSVSGDEKKGPLIAPGPDGAPAKGDGPVGLGTPGGRLAVPPRETWTRQMDFIMSCVGFAVGLGNVWRFPYLCYKNGGGVFLIPYVLIALVGGIPIFFLEISLGQFMKAGSINVWNICPLFKGLGYASMVIVFYCNTYYIMVLAWGFYYLVKSFTTTLPWATCGHTWNTPDCVEIFRHEDCANASLANLTCDQLADRRSPVIEFWENKVLRLSGGLEVPGALNWEVTLCLLACWVLVYFCVWKGVKSTGKIVYFTATFPYVVLVVLLVRGVLLPGALDGIIYYLKPDWSKLGSPQVWIDAGTQIFFSYAIGLGALTALGSYNRFNNNCYKDAIILALINSGTSFFAGFVVFSILGFMAAEQGVHISKVAESGPGLAFIAYPRAVTLMPVAPLWAALFFFMLLLLGLDSQFVGVEGFITGLLDLLPASYYFRFQREISVALCCALCFVIDLSMVTDGGMYVFQLFDYYSASGTTLLWQAFWECVVVAWVYGADRFMDDIACMIGYRPCPWMKWCWSFFTPLVCMGIFIFNVVYYEPLVYNNTYVYPWWGEAMGWAFALSSMLCVPLHLLGCLLRAKGTMAERWQHLTQPIWGLHHLEYRAQDADVRGLTTLTPVSESSKVVVVESVM

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

resolution	3.28 Å
resolution_method	—
num_particles	132400

fit	/app/data/saxs_computation/v8/9v8y/9v8y.fit
pddf	/app/data/pr_computation/v8/9v8y/9v8y.pr.out
profile	/app/data/saxs_computation/v8/9v8y/9v8y.dat
