SAXSdb — 9va1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Angiotensin-converting enzyme 2

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Sodium-dependent neutral amino acid transporter B(0)AT1 × 2 （Q695T7） TRYPTOPHAN × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACE2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 9–796； UniProt 18–805 Author chain C； PDBConstruct 9–796； UniProt 18–805

Sodium-dependent neutral amino acid transporter B(0)AT1

Homo sapiens

UniProt Q695T7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Angiotensin-converting enzyme 2 × 2 （Q9BYF1） TRYPTOPHAN × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	S6A19_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 20–652； UniProt 2–634 Author chain D； PDBConstruct 20–652； UniProt 2–634

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9va1
Deposition date deposition_date	2025-06-02
Structure title title	Structure of the ACE2-B0AT1 bound with tryptophan
Keywords keywords	complex, membrane protein, amino acid; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9va1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9va1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

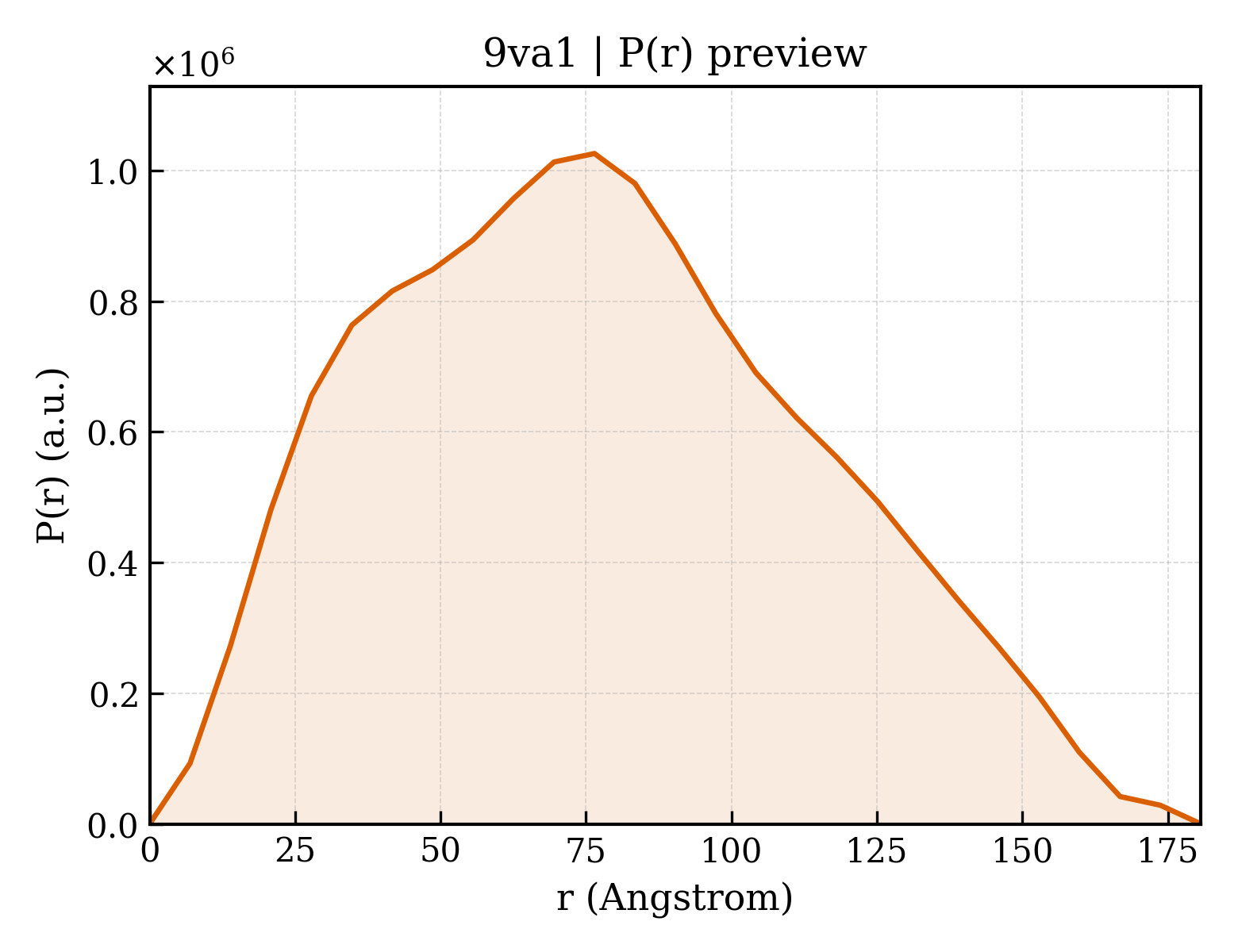

9va1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	60.23 Å
Rg (electron density)	60.58 Å
Total Rg	60.54 Å
Atom count	21820
Residues	2708
Excluded volume	391510 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9va1__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Angiotensin-converting enzyme 2
Molecular weight formula_weight	93504.6 kDa
EC 编号 ec_number	3.4.17.23,3.4.17.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,A
Atom count atom_count	21820

WSHPQFEKQSTIEEQAKTFLDKFNHEAEDLFYQSSLASWNYNTNITEENVQNMNNAGDKWSAFLKEQSTLAQMYPLQEIQNLTVKLQLQALQQNGSSVLSEDKSKRLNTILNTMSTIYSTGKVCNPDNPQECLLLEPGLNEIMANSLDYNERLWAWESWRSEVGKQLRPLYEEYVVLKNEMARANHYEDYGDYWRGDYEVNGVDGYDYSRGQLIEDVEHTFEEIKPLYEHLHAYVRAKLMNAYPSYISPIGCLPAHLLGDMWGRFWTNLYSLTVPFGQKPNIDVTDAMVDQAWDAQRIFKEAEKFFVSVGLPNMTQGFWENSMLTDPGNVQKAVCHPTAWDLGKGDFRILMCTKVTMDDFLTAHHEMGHIQYDMAYAAQPFLLRNGANEGFHEAVGEIMSLSAATPKHLKSIGLLSPDFQEDNETEINFLLKQALTIVGTLPFTYMLEKWRWMVFKGEIPKDQWMKKWWEMKREIVGVVEPVPHDETYCDPASLFHVSNDYSFIRYYTRTLYQFQFQEALCQAAKHEGPLHKCDISNSTEAGQKLFNMLRLGKSEPWTLALENVVGAKNMNVRPLLNYFEPLFTWLKDQNKNSFVGWSTDWSPYADQSIKVRISLKSALGDKAYEWNDNEMYLFRSSVAYAMRQYFLKVKNQMILFGEEDVRVANLKPRISFNFFVTAPKNVSDIIPRTEVEKAIRMSRSRINDAFRLNDNSLEFLGIQPTLGPPNQPPVSIWLIVFGVVMGVIVVGIVILIFTGIRDRKKKNKARSGENPYASIDISKGENNPGFQNTDDVQTSFLEHHHHHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Sodium-dependent neutral amino acid transporter B(0)AT1
Molecular weight formula_weight	73087.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,B

DYKDDDDKSGPDEVDASGRVRLVLPNPGLDARIPSLAELETIEQEEASSRPKWDNKAQYMLTCLGFCVGLGNVWRFPYLCQSHGGGAFMIPFLILLVLEGIPLLYLEFAIGQRLRRGSLGVWSSIHPALKGLGLASMLTSFMVGLYYNTIISWIMWYLFNSFQEPLPWSDCPLNENQTGYVDECARSSPVDYFWYRETLNISTSISDSGSIQWWMLLCLACAWSVLYMCTIRGIETTGKAVYITSTLPYVVLTIFLIRGLTLKGATNGIVFLFTPNVTELAQPDTWLDAGAQVFFSFSLAFGGLISFSSYNSVHNNCEKDSVIVSIINGFTSVYVAIVVYSVIGFRATQRYDDCFSTNILTLINGFDLPEGNVTQENFVDMQQRCNASDPAAYAQLVFQTCDINAFLSEAVEGTGLAFIVFTEAITKMPLSPLWSVLFFIMLFCLGLSSMFGNMEGVVVPLQDLRVIPPKWPKEVLTGLICLGTFLIGFIFTLNSGQYWLSLLDSYAGSIPLLIIAFCEMFSVVYVYGVDRFNKDIEFMIGHKPNIFWQVTWRVVSPLLMLIIFLFFFVVEVSQELTYSIWDPGYEEFPKSQKISYPNWVYVVVVIVAGVPSLTIPGYAIYKLIRNHCQKPGDHQGLVSTLSTASMNGDLKY

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 non-polymer

Description description	TRYPTOPHAN
Molecular weight formula_weight	204.2 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.24 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	140545
