SAXSdb — 2ajf

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Angiotensin-converting enzyme-Related Carboxypeptidase (Ace2)

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 1	SARS-coronavirus spike protein × 1 （P59594） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ZINC ION × 1 CHLORIDE ION × 1 water × 2	Consistent with protein count
2	Other combination	Heteromer	Protein 2 其他Polymer 1	SARS-coronavirus spike protein × 1 （P59594） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ZINC ION × 1 CHLORIDE ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACE2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–597； UniProt 19–615 Author chain B； PDBConstruct 1–597； UniProt 19–615

SARS-coronavirus spike protein

SARS coronavirus

UniProt P59594

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 1	Angiotensin-converting enzyme-Related Carboxypeptidase (Ace2) × 1 （Q9BYF1） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ZINC ION × 1 CHLORIDE ION × 1 water × 2	Consistent with protein count
2	Other combination	Heteromer	Protein 2 其他Polymer 1	Angiotensin-converting enzyme-Related Carboxypeptidase (Ace2) × 1 （Q9BYF1） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ZINC ION × 1 CHLORIDE ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPIKE_CVHSA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–180； UniProt 323–502 Author chain F； PDBConstruct 1–180； UniProt 323–502

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ajf
Deposition date deposition_date	2005-08-01
Structure title title	Structure of SARS coronavirus spike receptor-binding domain complexed with its receptor
Keywords keywords	antiparallel beta sheet, extended loop, hydrolase-viral protein COMPLEX; hydrolase/viral protein
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ajf__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ajf__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

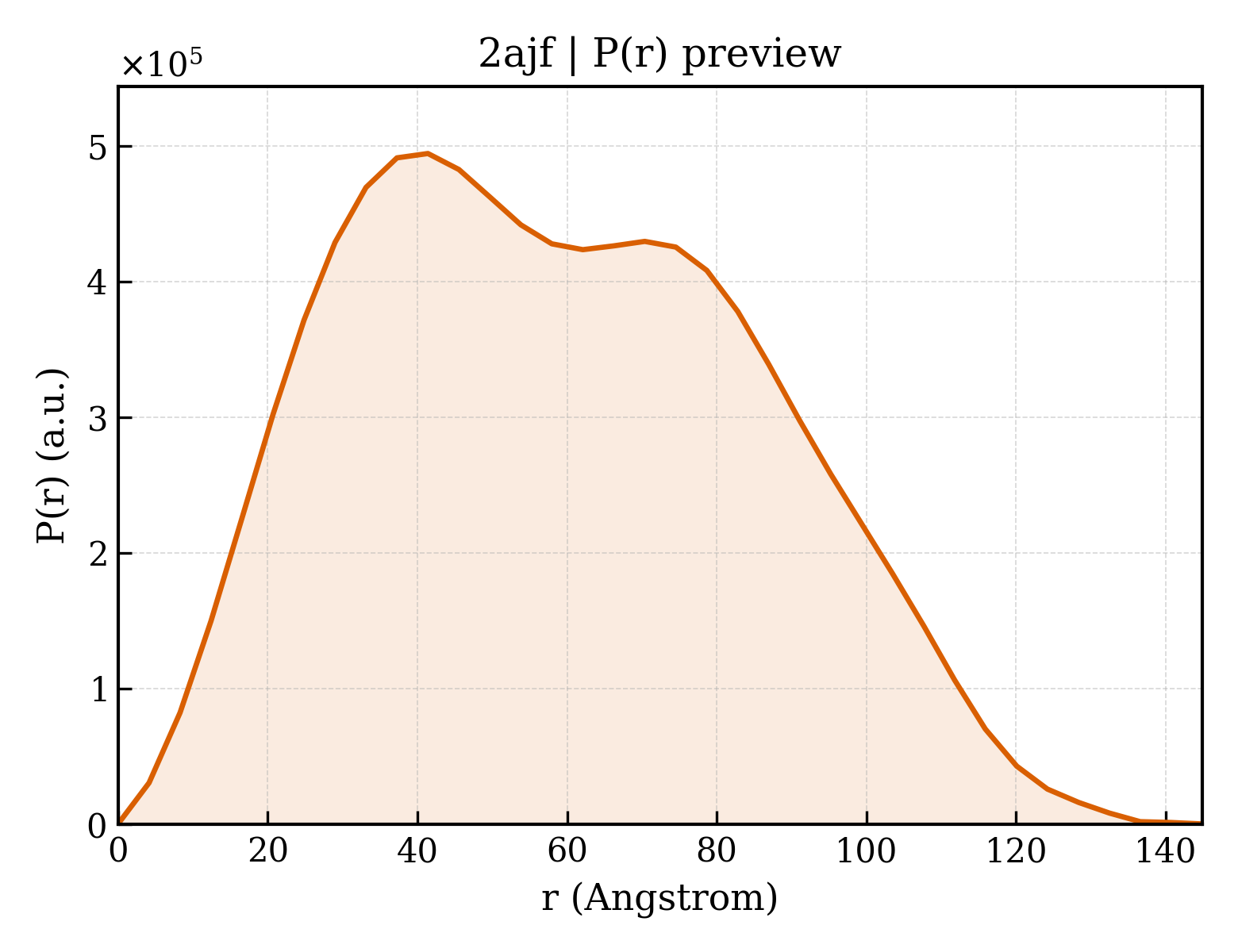

2ajf__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.84 Å
Rg (electron density)	30.34 Å
Total Rg	30.99 Å
Atom count	6370
Residues	771
Excluded volume	112910 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ajf__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2ajf__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Angiotensin-converting enzyme-Related Carboxypeptidase (Ace2)
Molecular weight formula_weight	69153.7 kDa
EC 编号 ec_number	3.4.17.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	12777

STIEEQAKTFLDKFNHEAEDLFYQSSLASWNYNTNITEENVQNMNNAGDKWSAFLKEQSTLAQMYPLQEIQNLTVKLQLQALQQNGSSVLSEDKSKRLNTILNTMSTIYSTGKVCNPDNPQECLLLEPGLNEIMANSLDYNERLWAWESWRSEVGKQLRPLYEEYVVLKNEMARANHYEDYGDYWRGDYEVNGVDGYDYSRGQLIEDVEHTFEEIKPLYEHLHAYVRAKLMNAYPSYISPIGCLPAHLLGDMWGRFWTNLYSLTVPFGQKPNIDVTDAMVDQAWDAQRIFKEAEKFFVSVGLPNMTQGFWENSMLTDPGNVQKAVCHPTAWDLGKGDFRILMCTKVTMDDFLTAHHEMGHIQYDMAYAAQPFLLRNGANEGFHEAVGEIMSLSAATPKHLKSIGLLSPDFQEDNETEINFLLKQALTIVGTLPFTYMLEKWRWMVFKGEIPKDQWMKKWWEMKREIVGVVEPVPHDETYCDPASLFHVSNDYSFIRYYTRTLYQFQFQEALCQAAKHEGPLHKCDISNSTEAGQKLFNMLRLGKSEPWTLALENVVGAKNMNVRPLLNYFEPLFTWLKDQNKNSFVGWSTDWSPYAD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	SARS-coronavirus spike protein
Molecular weight formula_weight	20523.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

CPFGEVFNATKFPSVYAWERKKISNCVADYSVLYNSTFFSTFKCYGVSATKLNDLCFSNVYADSFVVKGDDVRQIAPGQTGVIADYNYKLPDDFMGCVLAWNTRNIDATSTGNYNYKYRYLRHGKLRPFERDISNVPFSPDGKPCTPPALNCYWPLNDYGFYTTTGIGYQPYRVVVLSFE

Source Source

Source organism organism	SARS coronavirus
NCBI taxonomy ID ncbi_taxonomy_id	227859
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	65

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2ajfa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.92 — Zincin-like
Superfamily Superfamily superfamily	d.92.1 — Metalloproteases ('zincins'), catalytic domain
Family Family family	d.92.1.5 — Neurolysin-like

Domain ID domain_id	d2ajfb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.92 — Zincin-like
Superfamily Superfamily superfamily	d.92.1 — Metalloproteases ('zincins'), catalytic domain
Family Family family	d.92.1.5 — Neurolysin-like

Domain ID domain_id	d2ajfe1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.318 — SARS receptor-binding domain-like
Superfamily Superfamily superfamily	d.318.1 — SARS receptor-binding domain-like
Family Family family	d.318.1.1 — SARS receptor-binding domain-like

Domain ID domain_id	d2ajff_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.318 — SARS receptor-binding domain-like
Superfamily Superfamily superfamily	d.318.1 — SARS receptor-binding domain-like
Family Family family	d.318.1.1 — SARS receptor-binding domain-like

CATH v4.4 (2 domains)

Domain ID domain_id	2ajfE01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1840 — Spike protein, C-terminal core receptor binding subdomain

Domain ID domain_id	2ajfF01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1840 — Spike protein, C-terminal core receptor binding subdomain

▶

Unit-cell length a length_a	82.299 Å
Unit-cell length b length_b	119.429 Å
Unit-cell length c length_c	113.237 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	91.97 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	47.400 Å
R factor r_factor	0.2210
R_work r_work	0.2180
R_free r_free	0.2750

Structure of SARS coronavirus spike receptor-binding domain complexed with its receptor
