2fxp
Solution Structure of the SARS-Coronavirus HR2 Domain
SAXS 散射曲线 SAXS Profile

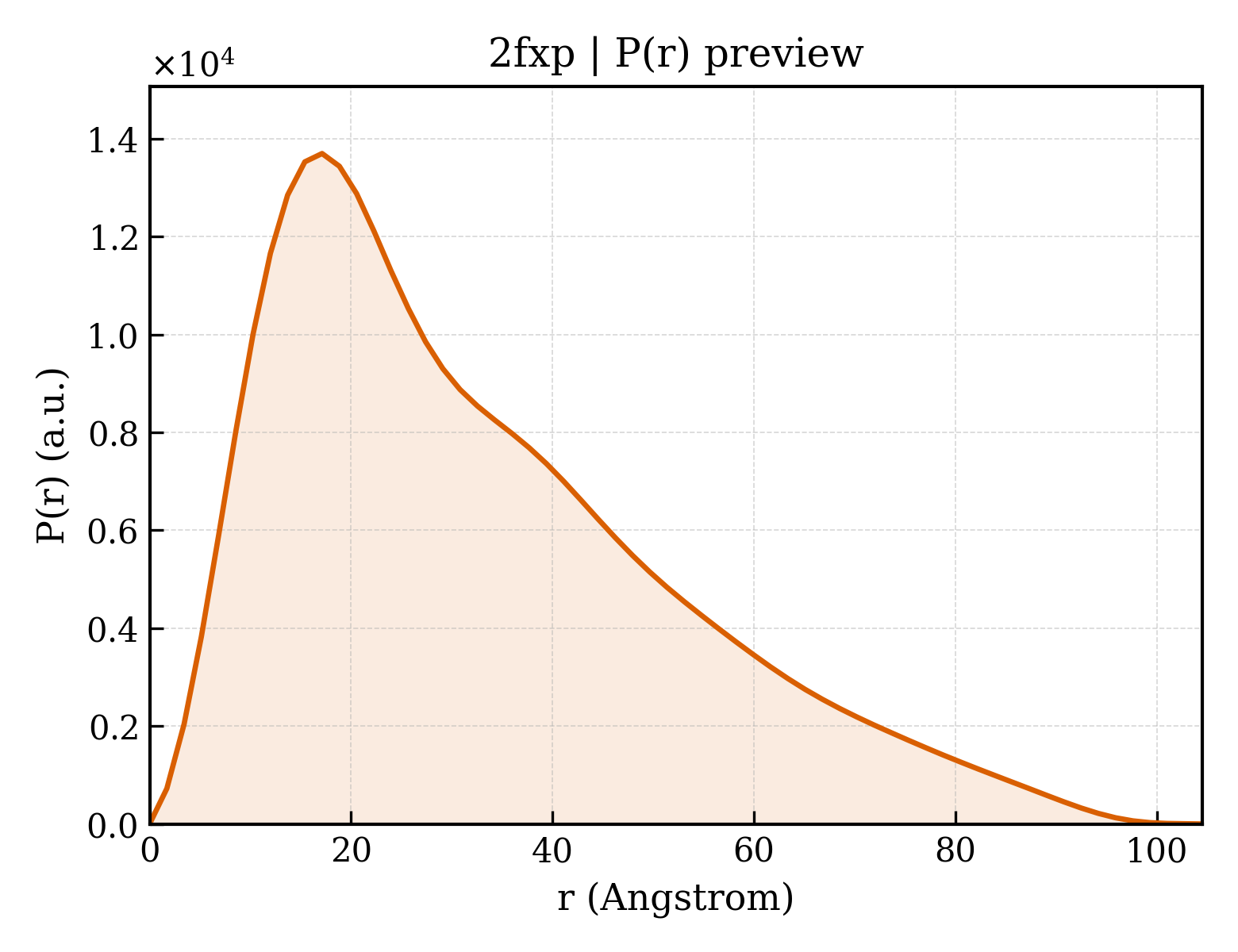

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 2fxp |
| 沉积日期 deposition_date | 2006-02-06 |
| 结构标题 title | Solution Structure of the SARS-Coronavirus HR2 Domain |
| 关键词 keywords | Prefusion Intermediate, Trimer, Coiled-coil, VIRAL PROTEIN; VIRAL PROTEIN |
| 实验方法 method | SOLUTION NMR |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 26.02 Å |
| 回转半径 Rg (电子) rg_electron | 26.43 Å |
| 零角强度 I(0) i0 | 6517650.00 |
| 分子量 molecular_weight | 18239.0 kDa |
| 排除体积 excluded_volume | 22660 ų |
| 包络体积 envelope_volume | 30649 ų |
| 水化壳体积 shell_volume | 12561 ų |
| 包络直径 envelope_diameter | 98.8 Å |
| 壳层 Rg shell_rg | 26.49 Å |
| 包络 Rg envelope_rg | 27.72 Å |
| 形状 Rg shape_rg | 26.48 Å |
| 总 Rg total_rg | 26.28 Å |
| 总原子数 total_atoms | 2562 |
| 残基数 n_residues | 165 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 104.5 Å |
| Rg (实空间) rg_real | 26.81 Å |
| Rg 误差 (实空间) rg_real_error | 1.55 Å |
| I(0) (实空间) i0_real | 6.5180e+06 |
| I(0) 误差 (实空间) i0_real_error | 1.1930e+05 |
| Rg (倒空间) rg_reciprocal | 26.56 Å |
| I(0) (倒空间) i0_reciprocal | 6517000.0000 |
| 解质量估计 total_estimate | 0.4537 |
| 解质量评级 solution_quality | SUSPICIOUS a SUSPICIOUS solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 17.1 Å |
| 偏度 Skewness skewness | 0.817 |
| 峰度 Kurtosis kurtosis | 0.023 |
| 角度范围 angular_range | — – 0.3050 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 1196000.0000 |
| 实空间数据点数 n_real_points | 62 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.091; Stabil: 1.000; Sysdev: 0.221; Positv: 1.000; Valcen: 0.006; Smooth: 0.954 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (1)
6. 折叠分类 (SCOP + CATH) 9 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d2fxpa1 |
| 类 Class class | h — Coiled coil proteins |
| 折叠类型 Fold fold | h.3 — Stalk segment of viral fusion proteins |
| 超家族 Superfamily superfamily | h.3.3 — Coronavirus S2 glycoprotein |
| 家族 Family family | h.3.3.1 — Coronavirus spike glycoprotein S2 fragments |
| 结构域编号 domain_id | d2fxpa2 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d2fxpb2 |
| 类 Class class | h — Coiled coil proteins |
| 折叠类型 Fold fold | h.3 — Stalk segment of viral fusion proteins |
| 超家族 Superfamily superfamily | h.3.3 — Coronavirus S2 glycoprotein |
| 家族 Family family | h.3.3.1 — Coronavirus spike glycoprotein S2 fragments |
| 结构域编号 domain_id | d2fxpb3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
| 结构域编号 domain_id | d2fxpc2 |
| 类 Class class | h — Coiled coil proteins |
| 折叠类型 Fold fold | h.3 — Stalk segment of viral fusion proteins |
| 超家族 Superfamily superfamily | h.3.3 — Coronavirus S2 glycoprotein |
| 家族 Family family | h.3.3.1 — Coronavirus spike glycoprotein S2 fragments |
| 结构域编号 domain_id | d2fxpc3 |
| 类 Class class | l — Artifacts |
| 折叠类型 Fold fold | l.1 — Tags |
| 超家族 Superfamily superfamily | l.1.1 — Tags |
| 家族 Family family | l.1.1.1 — Tags |
CATH v4.4 (3 domains)
| 结构域编号 domain_id | 2fxpA01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 790 — Single helix bin |
| 结构域编号 domain_id | 2fxpB01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 790 — Single helix bin |
| 结构域编号 domain_id | 2fxpC01 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 20 — Up-down Bundle |
| 拓扑 Topology topology | 5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces |
| 同源超家族 H-superfamily homologous superfamily | 790 — Single helix bin |
