2ghw

Crystal structure of SARS spike protein receptor binding domain in complex with a neutralizing antibody, 80R

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Spike glycoprotein

SARS coronavirus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	anti-sars scFv antibody, 80R × 1 （Q65ZC9） CHLORIDE ION × 4 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	anti-sars scFv antibody, 80R × 1 （Q65ZC9） CHLORIDE ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SPIKE_CVHSA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–197； UniProt 317–510 Author chain C； PDBConstruct 4–197； UniProt 317–510

anti-sars scFv antibody, 80R

Homo sapiens

UniProt Q65ZC9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Spike glycoprotein × 1 （P59594） CHLORIDE ION × 4 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Spike glycoprotein × 1 （P59594） CHLORIDE ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q65ZC9_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 4–237； UniProt 2–235 Author chain D； PDBConstruct 4–237； UniProt 2–235

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2ghw
Deposition date deposition_date	2006-03-27
Structure title title	Crystal structure of SARS spike protein receptor binding domain in complex with a neutralizing antibody, 80R
Keywords keywords	SARS, S protein, neutralizing antibody, VIRUS-VIRAL PROTEIN-ANTIBIOTIC COMPLEX; VIRUS/VIRAL PROTEIN/ANTIBIOTIC
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2ghw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2ghw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

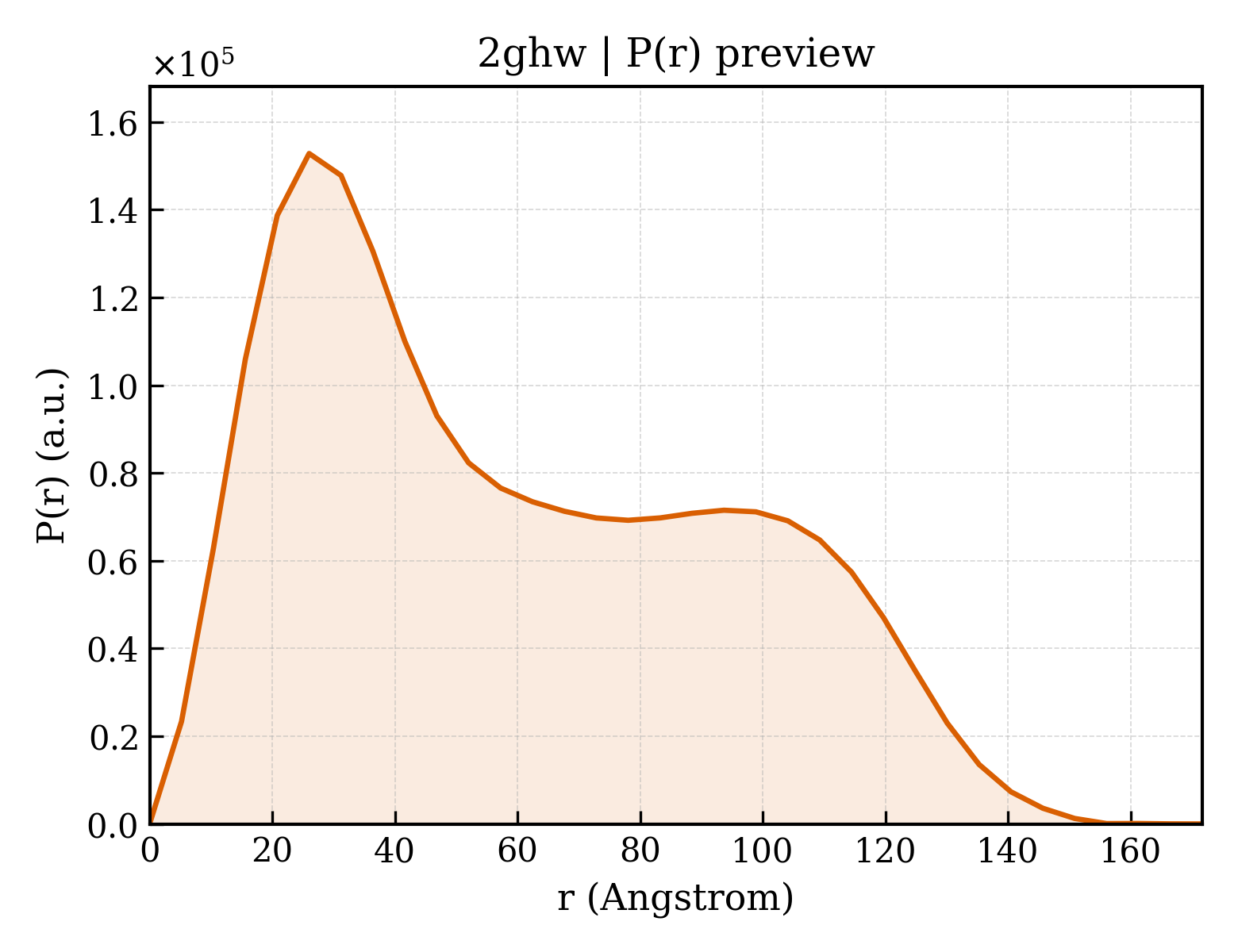

2ghw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.91 Å
Rg (electron density)	24.62 Å
Total Rg	25.51 Å
Atom count	3317
Residues	423
Excluded volume	58640 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2ghw__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`2ghw__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Spike glycoprotein
Molecular weight formula_weight	22883.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	7089

MADPNITNLCPFGEVFNATKFPSVYAWERKKISNCVADYSVLYNSTFFSTFKCYGVSATKLNDLCFSNVYADSFVVKGDDVRQIAPGQTGVIADYNYKLPDDFMGCVLAWNTRNIDATSTGNYNYKYRYLRHGKLRPFERDISNVPFSPDGKPCTPPALNCYWPLNDYGFYTTTGIGYQPYRVVVLSFELLNAPATVSGLVPR

Source Source

Source organism organism	SARS coronavirus
NCBI taxonomy ID ncbi_taxonomy_id	227859
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	anti-sars scFv antibody, 80R
Molecular weight formula_weight	26454.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MAEVQLVQSGGGVVQPGKSLRLSCAASGFAFSSYAMHWVRQAPGKGLEWVAVISYDGSNKYYADSVKGRFTISRDNSKNTLYLQMNSLRAEDTAVYYCARDRSYYLDYWGQGTLVTVSSGGGGSGGGGSGGGGSETTLTQSPATLSLSPGERATLSCRASQSVRSNLAWYQQKPGQAPRPLIYDASTRATGIPDRFSGSGSGTDFTLTISRLEPEDFAVYYCQQRSNWPPTFGQGTKVEVKSGLVPR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	470

▼

6. Fold Classification (SCOP + CATH) 13 domains

SCOP 2.08 (7 domains)

Domain ID domain_id	d2ghwa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.318 — SARS receptor-binding domain-like
Superfamily Superfamily superfamily	d.318.1 — SARS receptor-binding domain-like
Family Family family	d.318.1.1 — SARS receptor-binding domain-like

Domain ID domain_id	d2ghwb1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2ghwb2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2ghwc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.318 — SARS receptor-binding domain-like
Superfamily Superfamily superfamily	d.318.1 — SARS receptor-binding domain-like
Family Family family	d.318.1.1 — SARS receptor-binding domain-like

Domain ID domain_id	d2ghwd1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2ghwd2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2ghwd3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (6 domains)

Domain ID domain_id	2ghwA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1840 — Spike protein, C-terminal core receptor binding subdomain

Domain ID domain_id	2ghwB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ghwB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ghwC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1840 — Spike protein, C-terminal core receptor binding subdomain

Domain ID domain_id	2ghwD01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2ghwD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Unit-cell length a length_a	47.453 Å
Unit-cell length b length_b	175.902 Å
Unit-cell length c length_c	67.561 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	96.55 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	45.550 Å
R factor r_factor	0.2509
R_work r_work	0.2484
R_free r_free	0.2954
