SAXSdb — 9va2

▼

1. Structure Basics

entry_id	9va2
deposition_date	2025-06-02
title	Structure of the ACE2-B0AT1 bound with Phenylalanine
keywords	complex, membrane protein, amino acid; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	60.13 Å
rg_electron	60.50 Å
i0	1279840000.00
molecular_weight	313150.0 kDa
excluded_volume	396470 Å³
envelope_volume	590860 Å³
shell_volume	84913 Å³
envelope_diameter	192.8 Å
shell_rg	56.96 Å
envelope_rg	58.83 Å
shape_rg	60.49 Å
total_rg	60.46 Å
total_atoms	22094
n_residues	2708
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	180.4 Å
rg_real	60.27 Å
rg_real_error	1.58 Å
i0_real	1.2800e+09
i0_real_error	2.5110e+07
rg_reciprocal	59.97 Å
i0_reciprocal	1279000000.0000
total_estimate	0.8408
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	76.3 Å
skewness	0.275
kurtosis	-0.637
angular_range	— – 0.1300 Å⁻¹
current_alpha	0.0000
highest_alpha	64090000.0000
n_real_points	27
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.982; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.001

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Angiotensin-converting enzyme 2
formula_weight	93504.6 kDa
ec_number	3.4.17.23,3.4.17.-
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,C
atom_count	22094

WSHPQFEKQSTIEEQAKTFLDKFNHEAEDLFYQSSLASWNYNTNITEENVQNMNNAGDKWSAFLKEQSTLAQMYPLQEIQNLTVKLQLQALQQNGSSVLSEDKSKRLNTILNTMSTIYSTGKVCNPDNPQECLLLEPGLNEIMANSLDYNERLWAWESWRSEVGKQLRPLYEEYVVLKNEMARANHYEDYGDYWRGDYEVNGVDGYDYSRGQLIEDVEHTFEEIKPLYEHLHAYVRAKLMNAYPSYISPIGCLPAHLLGDMWGRFWTNLYSLTVPFGQKPNIDVTDAMVDQAWDAQRIFKEAEKFFVSVGLPNMTQGFWENSMLTDPGNVQKAVCHPTAWDLGKGDFRILMCTKVTMDDFLTAHHEMGHIQYDMAYAAQPFLLRNGANEGFHEAVGEIMSLSAATPKHLKSIGLLSPDFQEDNETEINFLLKQALTIVGTLPFTYMLEKWRWMVFKGEIPKDQWMKKWWEMKREIVGVVEPVPHDETYCDPASLFHVSNDYSFIRYYTRTLYQFQFQEALCQAAKHEGPLHKCDISNSTEAGQKLFNMLRLGKSEPWTLALENVVGAKNMNVRPLLNYFEPLFTWLKDQNKNSFVGWSTDWSPYADQSIKVRISLKSALGDKAYEWNDNEMYLFRSSVAYAMRQYFLKVKNQMILFGEEDVRVANLKPRISFNFFVTAPKNVSDIIPRTEVEKAIRMSRSRINDAFRLNDNSLEFLGIQPTLGPPNQPPVSIWLIVFGVVMGVIVVGIVILIFTGIRDRKKKNKARSGENPYASIDISKGENNPGFQNTDDVQTSFLEHHHHHHHHHH

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Sodium-dependent neutral amino acid transporter B(0)AT1
formula_weight	73087.1 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	B,D

DYKDDDDKSGPDEVDASGRVRLVLPNPGLDARIPSLAELETIEQEEASSRPKWDNKAQYMLTCLGFCVGLGNVWRFPYLCQSHGGGAFMIPFLILLVLEGIPLLYLEFAIGQRLRRGSLGVWSSIHPALKGLGLASMLTSFMVGLYYNTIISWIMWYLFNSFQEPLPWSDCPLNENQTGYVDECARSSPVDYFWYRETLNISTSISDSGSIQWWMLLCLACAWSVLYMCTIRGIETTGKAVYITSTLPYVVLTIFLIRGLTLKGATNGIVFLFTPNVTELAQPDTWLDAGAQVFFSFSLAFGGLISFSSYNSVHNNCEKDSVIVSIINGFTSVYVAIVVYSVIGFRATQRYDDCFSTNILTLINGFDLPEGNVTQENFVDMQQRCNASDPAAYAQLVFQTCDINAFLSEAVEGTGLAFIVFTEAITKMPLSPLWSVLFFIMLFCLGLSSMFGNMEGVVVPLQDLRVIPPKWPKEVLTGLICLGTFLIGFIFTLNSGQYWLSLLDSYAGSIPLLIIAFCEMFSVVYVYGVDRFNKDIEFMIGHKPNIFWQVTWRVVSPLLMLIIFLFFFVVEVSQELTYSIWDPGYEEFPKSQKISYPNWVYVVVVIVAGVPSLTIPGYAIYKLIRNHCQKPGDHQGLVSTLSTASMNGDLKY

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 branched

description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	424.4 kDa
src_method	man
entity_count	4

Entity 4 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	12

Entity 5 non-polymer

description	PHENYLALANINE
formula_weight	165.2 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.87 Å
resolution_method	—
num_particles	361209

fit	/app/data/saxs_computation/va/9va2/9va2.fit
pddf	/app/data/pr_computation/va/9va2/9va2.pr.out
profile	/app/data/saxs_computation/va/9va2/9va2.dat

Structure of the ACE2-B0AT1 bound with Phenylalanine

SAXS Profile

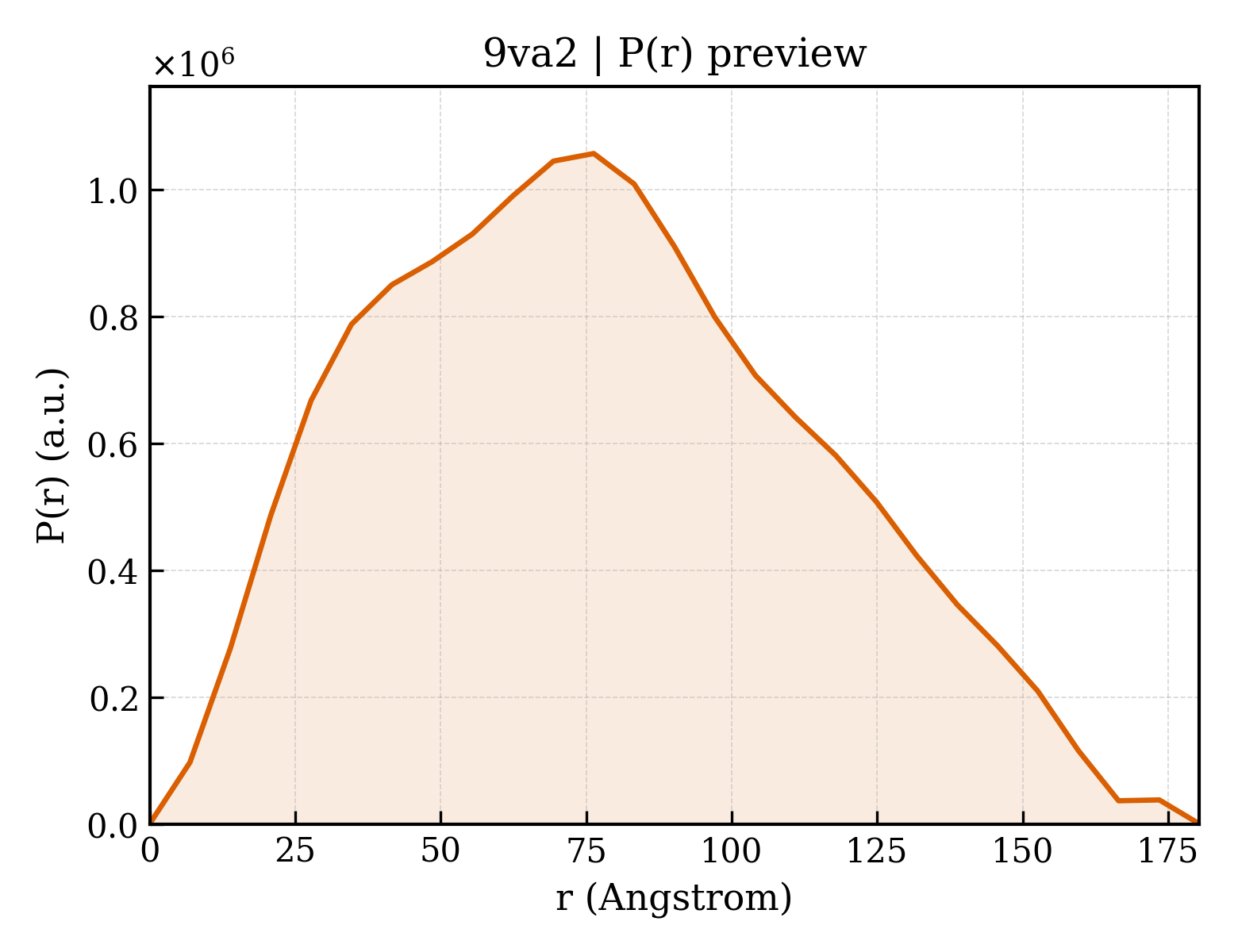

P(r) Distribution
