9vc0

Lectin FRIL from Lablab purpureus complexed to oligomannose

Method: ELECTRON MICROSCOPY D_max: 90.5 Å Quality: EXCELLENT

SAXS Profile

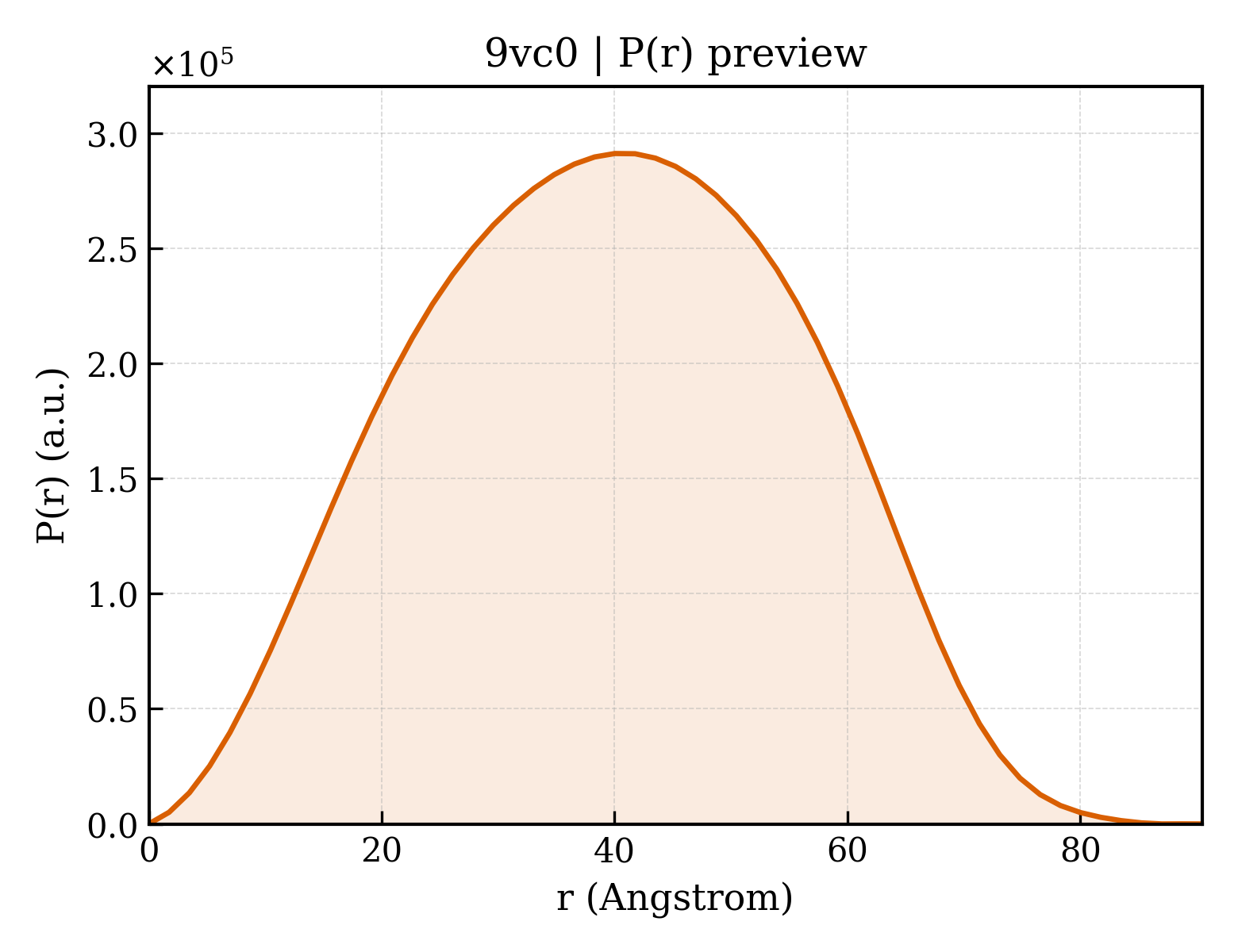

P(r) Distribution

▼

1. Structure Basics

entry_id	9vc0
deposition_date	2025-06-05
title	Lectin FRIL from Lablab purpureus complexed to oligomannose
keywords	;Flt3 receptor-interacting lectin, carbohydrate binding protein, lectin, glycoprotein, high-mannose type glycan. OMS-FRIL, FRIL, PLANT PROTEIN ;; PLANT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	30.40 Å
rg_electron	28.99 Å
i0	165793000.00
molecular_weight	103480.0 kDa
excluded_volume	129450 Å³
envelope_volume	151390 Å³
shell_volume	42362 Å³
envelope_diameter	89.1 Å
shell_rg	37.49 Å
envelope_rg	28.97 Å
shape_rg	28.95 Å
total_rg	29.83 Å
total_atoms	7320
n_residues	924
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	90.5 Å
rg_real	30.18 Å
rg_real_error	0.47 Å
i0_real	1.6580e+08
i0_real_error	2.2810e+06
rg_reciprocal	30.28 Å
i0_reciprocal	165800000.0000
total_estimate	0.9103
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	40.0 Å
skewness	0.005
kurtosis	-0.690
angular_range	— – 0.2600 Å⁻¹
current_alpha	0.0000
highest_alpha	27040000.0000
n_real_points	53
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.962; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.957

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Flt3 receptor-interacting lectin
formula_weight	28610.4 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,D,C
atom_count	7370

AQSLSFSFTKFDPNQEDLIFQGHATSTNNVLQLTKLDSAGNPVSSSAGRVLYSAPLRLWEDSAVLTSFDTIINFEISTPYTSRIADGLAFFIAPPDSVISYHGGFLGLFPNANTLNNSSTSENQTTTKAASSNVVAVEFDTYLNPDYGDPNYIHIGIDVNSIRSKVTAKWDWQNGKIATAHISYNSVSKRLSVTTYYPGSKPATLSYDIELHTVLPEWVRVGLSASTGQDKERNTVHSWSFTSSLWTNVAVDLGHHHHHH

Source

organism	Lablab purpureus
ncbi_taxonomy_id	35936
host_organism	Homo sapiens

Entity 2 branched

description	alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose
formula_weight	342.3 kDa
src_method	man
entity_count	4

Entity 3 non-polymer

description	CALCIUM ION
formula_weight	40.1 kDa
src_method	syn
entity_count	4

Entity 4 non-polymer

description	MANGANESE (II) ION
formula_weight	54.9 kDa
src_method	syn
entity_count	4

Entity 5 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	50

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.48 Å
resolution_method	—
num_particles	703218
