9vdp

Cryo-EM structure of the hexameric DRT4

Method: ELECTRON MICROSCOPY D_max: 133.4 Å Quality: GOOD

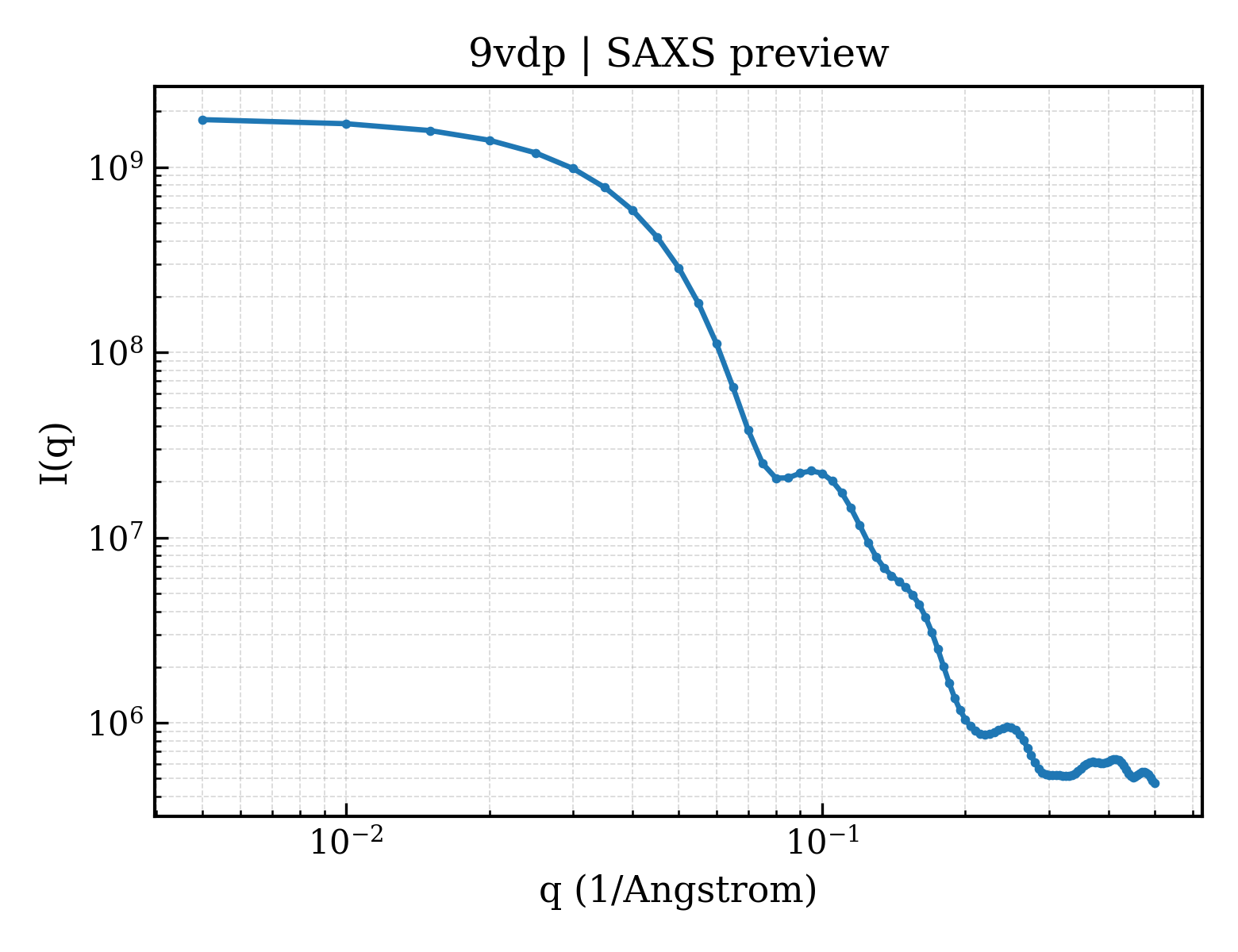

SAXS Profile

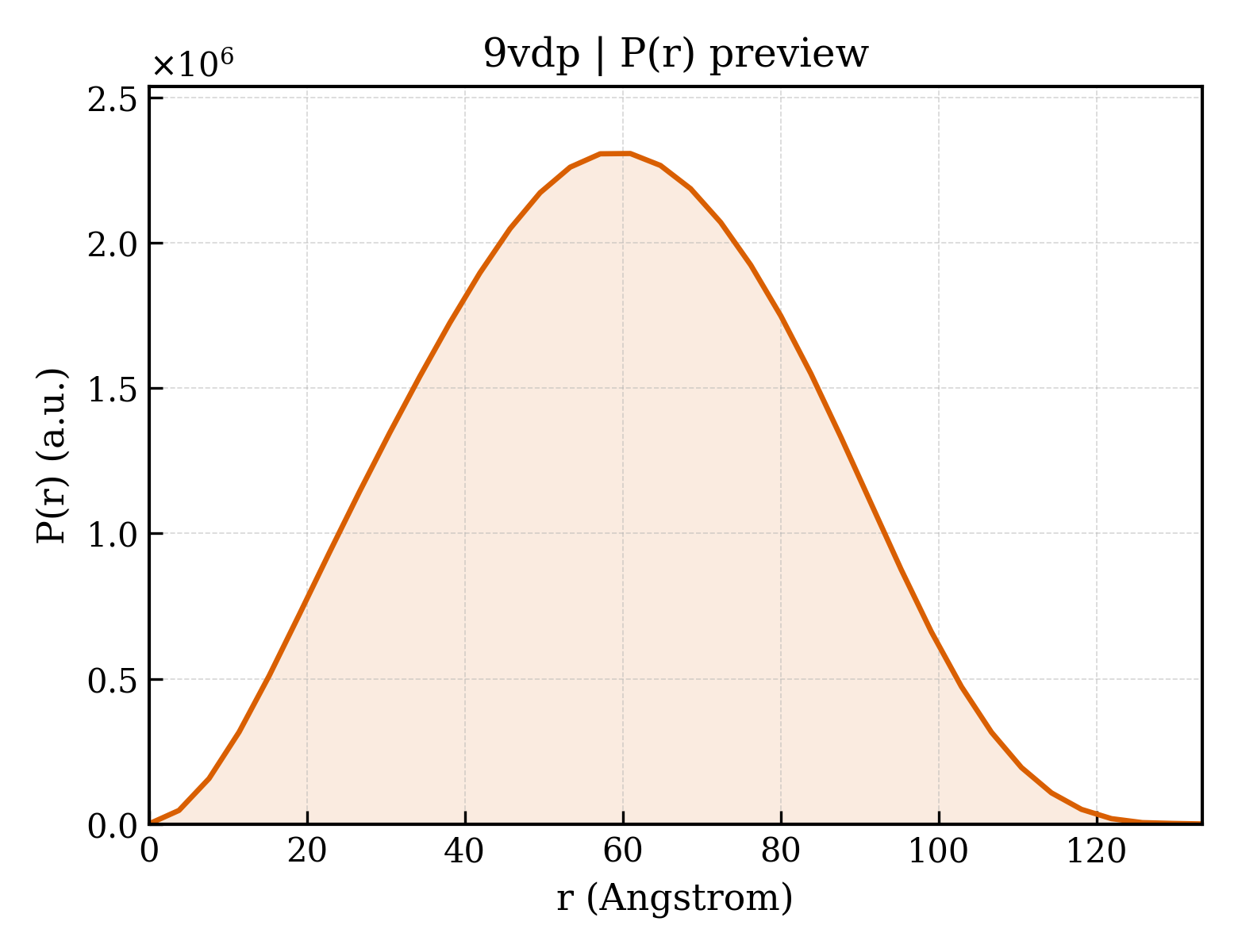

P(r) Distribution

▼

1. Structure Basics

entry_id	9vdp
deposition_date	2025-06-09
title	Cryo-EM structure of the hexameric DRT4
keywords	UG15, DRT4, Reverse transcriptases, UG/Abi system, DNA BINDING PROTEIN/DNA, DNA BINDING PROTEIN-DNA complex; DNA BINDING PROTEIN/DNA
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	45.18 Å
rg_electron	44.61 Å
i0	1835180000.00
molecular_weight	353660.0 kDa
excluded_volume	440760 Å³
envelope_volume	567470 Å³
shell_volume	101320 Å³
envelope_diameter	135.1 Å
shell_rg	52.99 Å
envelope_rg	43.41 Å
shape_rg	44.64 Å
total_rg	44.81 Å
total_atoms	24888
n_residues	2994
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	133.4 Å
rg_real	44.84 Å
rg_real_error	0.67 Å
i0_real	1.8350e+09
i0_real_error	3.0600e+07
rg_reciprocal	45.18 Å
i0_reciprocal	1836000000.0000
total_estimate	0.8848
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	61.0 Å
skewness	0.034
kurtosis	-0.593
angular_range	— – 0.1750 Å⁻¹
current_alpha	0.0000
highest_alpha	230400000.0000
n_real_points	36
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.959; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.962; Smooth: 0.658

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (2)

Entity 1 polymer

description	Reverse transcriptase domain-containing protein
formula_weight	63911.0 kDa
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,B,D,F,H,K
atom_count	24888

HHHHHHSSGMVIFDEKRHLYEALLRHNYFPNQKGSISEIPPCFSSRTFTPEIAELISSDTSGRRSLQGYDCVEYYATRYNNFPRTLSIIHPKAYSKLAKHIHDNWEEIRFIKENENSMIKPDMHADGRIIIMNYEDAETKTIRELNDGFGRRFKVNADISGCFTNIYSHSIPWAVIGVNNAKIALNTKVKNQDKHWSDKLDYFQRQAKRNETHGVPIGPATSSIVCEIILSAVDKRLRDDGFLFRRYIDDYTCYCKTHDDAKEFLHLLGMELSKYKLSLNLHKTKITNLPGTLNDNWVSLLNVNSPTKKRFTDQDLNKLSSSEVINFLDYAVQLNTQVGGGSILKYAISLVINNLDEYTITQVYDYLLNLSWHYPMLIPYLGVLIEHVYLDDGDEYKNKFNEILSMCAENKCSDGMAWTLYFCIKNNIDIDDDVIEKIICFGDCLSLCLLDSSDIYEEKINNFVSDIIKLDYEYDIDRYWLLFYQRFFKDKAPSPYNDKCFDIMKGYGVDFMPDENYKTKAESYCHVVNNPFLEDGDEIVSFNDYMAIA

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli

Entity 2 polymer

description	;DNA (5'-D(PCPCPCPAP*A)-3') ;
formula_weight	1449.0 kDa
src_method	man
entity_count	6

Polymer

type	polydeoxyribonucleotide
strand_id	I,C,E,G,J,L

CCCAA

Source

organism	Escherichia coli
ncbi_taxonomy_id	562
host_organism	Escherichia coli

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.270 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.27 Å
resolution_method	—
num_particles	306468

fit	/app/data/saxs_computation/vd/9vdp/9vdp.fit
pddf	/app/data/pr_computation/vd/9vdp/9vdp.pr.out
profile	/app/data/saxs_computation/vd/9vdp/9vdp.dat
