9vj4

Structure of a membrane-bound inositol phosphorylceramide synthase and ceramide complex

Method: ELECTRON MICROSCOPY D_max: 80.6 Å Quality: GOOD

SAXS Profile

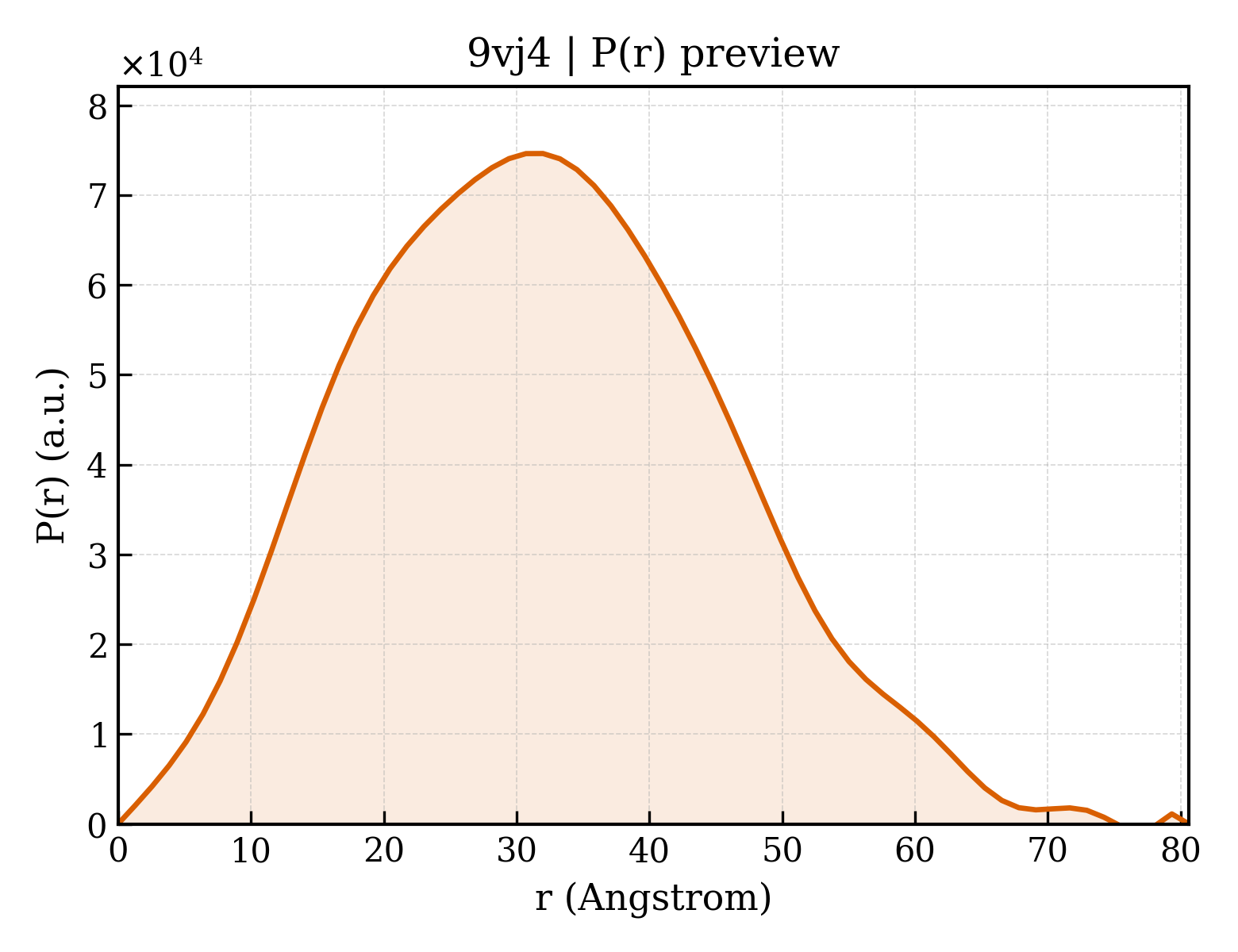

P(r) Distribution

▼

1. Structure Basics

entry_id	9vj4
deposition_date	2025-06-19
title	Structure of a membrane-bound inositol phosphorylceramide synthase and ceramide complex
keywords	membrane protein, inositol phosphorylceramide synthase, LIPID BINDING PROTEIN; LIPID BINDING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	24.53 Å
rg_electron	23.60 Å
i0	33509400.00
molecular_weight	52639.0 kDa
excluded_volume	69156 Å³
envelope_volume	83000 Å³
shell_volume	28894 Å³
envelope_diameter	87.4 Å
shell_rg	31.20 Å
envelope_rg	23.90 Å
shape_rg	23.60 Å
total_rg	24.66 Å
total_atoms	3735
n_residues	445
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	80.6 Å
rg_real	24.44 Å
rg_real_error	0.56 Å
i0_real	3.3510e+07
i0_real_error	4.5170e+05
rg_reciprocal	24.46 Å
i0_reciprocal	33510000.0000
total_estimate	0.8114
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	32.0 Å
skewness	0.244
kurtosis	-0.350
angular_range	— – 0.3250 Å⁻¹
current_alpha	0.0000
highest_alpha	8385000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.853; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Inositol phosphorylceramide synthase catalytic subunit AUR1
formula_weight	45223.0 kDa
ec_number	2.7.1.227
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	3735

MANPFSRWFLSERPPNCHVADLETSLDPHQTLLKVQKYKPALSDWVHYIFLGSIMLFVFITNPAPWIFKILFYCFLGTLFIIPATSQFFFNALPILTWVALYFTSSYFPDDRRPPITVKVLPAVETILYGDNLSDILATSTNSFLDILAWLPYGLFHFGAPFVVAAILFVFGPPTVLQGYAFAFGYMNLFGVIMQNVFPAAPPWYKILYGLQSANYDMHGSPGGLARIDKLLGINMYTTAFSNSSVIFGAFPSLHSGCATMEALFFCYCFPKLKPLFIAYVCWLWWSTMYLTHHYFVDLMAGSVLSYVIFQYTKYTHLPIVDTSLFCRWSYTSIEKYDISKSDPLAADSNDIESVPLSNLELDFDLNMTDEPSVSPSLFDGSTSVSRSSATSITSLGVKRA

Source

organism	Saccharomyces cerevisiae S288C
ncbi_taxonomy_id	559292
host_organism	Homo sapiens

Entity 2 polymer

description	Inositol phosphorylceramide synthase regulatory subunit KEI1
formula_weight	25505.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MRSSLLTLPKSFLGFMPLYLAVEIVLGISILNKCSGAYGILALFTGHPLDFMQWIAYLWSVFTLIVFSQGLYLIHKPNLLVFSQICVLYTIDTISTCFFTLWFTTQWFTLEDTANIDGNNALQSNPISTGKLTERGIDISKQSATESYEYTMTILITLVSLIFRFYFNFILASFVQELLHHPKYLVDRDDVEQNLKNKPIWKRLWAKSQKGCYKLCKNLLE

Source

organism	Saccharomyces cerevisiae S288C
ncbi_taxonomy_id	559292
host_organism	Homo sapiens

Entity 3 non-polymer

description	~{N}-[(~{Z},2~{S},3~{R})-1,3-bis(oxidanyl)heptadec-4-en-2-yl]dodecanamide
formula_weight	467.8 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	TETRADECANE
formula_weight	198.4 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	(2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl tetradecanoate
formula_weight	635.9 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

resolution	3.500 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.50 Å
resolution_method	—
num_particles	162123

fit	/app/data/saxs_computation/vj/9vj4/9vj4.fit
pddf	/app/data/pr_computation/vj/9vj4/9vj4.pr.out
profile	/app/data/saxs_computation/vj/9vj4/9vj4.dat
