9vjx

Structure of the plant diacylglycerol O-acyltransferase 1 H447A mutant

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Diacylglycerol O-acyltransferase 1

Arabidopsis thaliana

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	OLEIC ACID × 9 COENZYME A × 1 2,3-bis[[(Z)-octadec-9-enoyl]oxy]propyl (Z)-octadec-9-enoate × 1 2-(HEXADECANOYLOXY)-1-[(PHOSPHONOOXY)METHYL]ETHYL HEXADECANOATE × 2 [(2~{S})-2-[(~{Z})-octadec-9-enoyl]oxy-3-oxidanyl-propyl] (~{Z})-octadec-9-enoate × 4 ;S-{(3R,5R,9R)-1-[(2R,3S,4R,5R)-5-(6-amino-9H-purin-9-yl)-4-hydroxy-3-(phosphonooxy)tetrahydrofuran-2-yl]-3,5,9-trihydroxy-8,8-dimethyl-3,5-dioxido-10,14-dioxo-2,4,6-trioxa-11,15-diaza-3lambda~5~,5lambda~5~-diphosphaheptadecan-17-yl} (9Z)-octadec-9-enethioate (non-preferred name) ; × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DGAT1_ARATH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–520； UniProt 1–520 Author chain B； PDBConstruct 1–520； UniProt 1–520

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9vjx
Deposition date deposition_date	2025-06-21
Structure title title	Structure of the plant diacylglycerol O-acyltransferase 1 H447A mutant
Keywords keywords	TAG synthysis, activity regulation, FFA, intramembrane enzyme, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9vjx__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9vjx__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

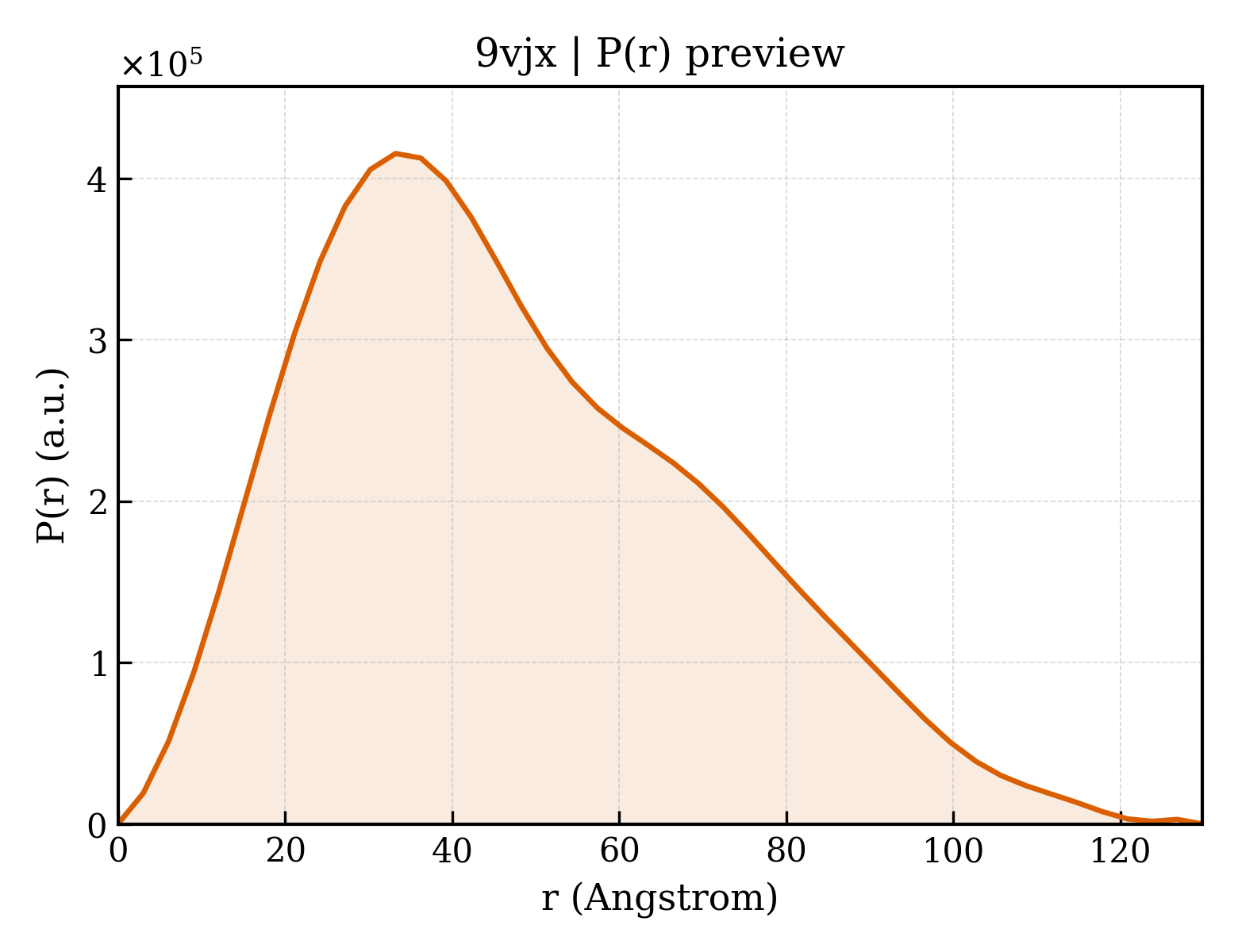

9vjx__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.12 Å
Rg (electron density)	37.04 Å
Total Rg	37.59 Å
Atom count	7530
Residues	841
Excluded volume	138350 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9vjx__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Diacylglycerol O-acyltransferase 1
Molecular weight formula_weight	59962.6 kDa
EC 编号 ec_number	2.3.1.20
Mutation mutation	H447A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,A
Atom count atom_count	7556

MAILDSAGVTTVTENGGGEFVDLDRLRRRKSRSDSSNGLLLSGSDNNSPSDDVGAPADVRDRIDSVVNDDAQGTANLAGDNNGGGDNNGGGRGGGEGRGNADATFTYRPSVPAHRRARESPLSSDAIFKQSHAGLFNLCVVVLIAVNSRLIIENLMKYGWLIRTDFWFSSRSLRDWPLFMCCISLSIFPLAAFTVEKLVLQKYISEPVVIFLHIIITMTEVLYPVYVTLRCDSAFLSGVTLMLLTCIVWLKLVSYAHTSYDIRSLANAADKANPEVSYYVSLKSLAYFMVAPTLCYQPSYPRSACIRKGWVARQFAKLVIFTGFMGFIIEQYINPIVRNSKHPLKGDLLYAIERVLKLSVPNLYVWLCMFYCFFHLWLNILAELLCFGDREFYKDWWNAKSVGDYWRMWNMPVHKWMVRHIYFPCLRSKIPKTLAIIIAFLVSAVFAELCIAVPCRLFKLWAFLGIMFQVPLVFITNYLQERFGSTVGNMIFWFIFCIFGQPMCVLLYYHDLMNRKGSMSGPHHHHHH

Source Source

Source organism organism	Arabidopsis thaliana
Common name common_name	thale cress
NCBI taxonomy ID ncbi_taxonomy_id	3702
Host organism host_organism	Komagataella pastoris

Entity 2 Entity 2 non-polymer

Description description	OLEIC ACID
Molecular weight formula_weight	282.5 kDa
EC 编号 ec_number	2.3.1.20
Source method src_method	man
Copy count entity_count	9

Entity 3 Entity 3 non-polymer

Description description	COENZYME A
Molecular weight formula_weight	767.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2,3-bis[[(Z)-octadec-9-enoyl]oxy]propyl (Z)-octadec-9-enoate
Molecular weight formula_weight	885.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	2-(HEXADECANOYLOXY)-1-[(PHOSPHONOOXY)METHYL]ETHYL HEXADECANOATE
Molecular weight formula_weight	648.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	[(2~{S})-2-[(~{Z})-octadec-9-enoyl]oxy-3-oxidanyl-propyl] (~{Z})-octadec-9-enoate
Molecular weight formula_weight	621.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 7 Entity 7 non-polymer

Description description	;S-{(3R,5R,9R)-1-[(2R,3S,4R,5R)-5-(6-amino-9H-purin-9-yl)-4-hydroxy-3-(phosphonooxy)tetrahydrofuran-2-yl]-3,5,9-trihydroxy-8,8-dimethyl-3,5-dioxido-10,14-dioxo-2,4,6-trioxa-11,15-diaza-3lambda~5~,5lambda~5~-diphosphaheptadecan-17-yl} (9Z)-octadec-9-enethioate (non-preferred name) ;
Molecular weight formula_weight	1032.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	6

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.60 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	67838
