The complexes of IFN-gamma and A01BM-03 Fab

entry_id	9vnp
deposition_date	2025-06-30
title	The complexes of IFN-gamma and A01BM-03 Fab
keywords	Antibody, IFN-gamma, IMMUNE SYSTEM; IMMUNE SYSTEM
method	X-RAY DIFFRACTION

rg_guinier	29.55 Å
rg_electron	29.48 Å
i0	55220100.00
molecular_weight	57875.0 kDa
excluded_volume	72286 ų
envelope_volume	99451 ų
shell_volume	29637 ų
envelope_diameter	107.4 Å
shell_rg	34.77 Å
envelope_rg	30.08 Å
shape_rg	29.43 Å
total_rg	30.12 Å
total_atoms	4074
n_residues	528
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	103.9 Å
rg_real	29.78 Å
rg_real_error	1.03 Å
i0_real	5.5220e+07
i0_real_error	9.1590e+05
rg_reciprocal	29.68 Å
i0_reciprocal	55220000.0000
total_estimate	0.8425
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	30.8 Å
skewness	0.598
kurtosis	-0.015
angular_range	— – 0.2700 Å−1
current_alpha	0.0000
highest_alpha	7465000.0000
n_real_points	55
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.722; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.896; Smooth: 0.886

Unit Cell

length_a	127.328 Å
length_b	59.103 Å
length_c	77.788 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	4

Symmetry

space_group	P 21 21 2
int_tables_number	18
crystal_system	—

Refinement

resolution	3.020 Å
resolution_low	32.000 Å
r_factor	—
r_work	0.2288
r_free	0.2477

Diffraction

temperature

100.0 K

Files (7)

• pr_distribution /app/data/pr_computation/vn/9vnp/pr_distribution.json
• pr_output /app/data/pr_computation/vn/9vnp/9vnp.pr.out

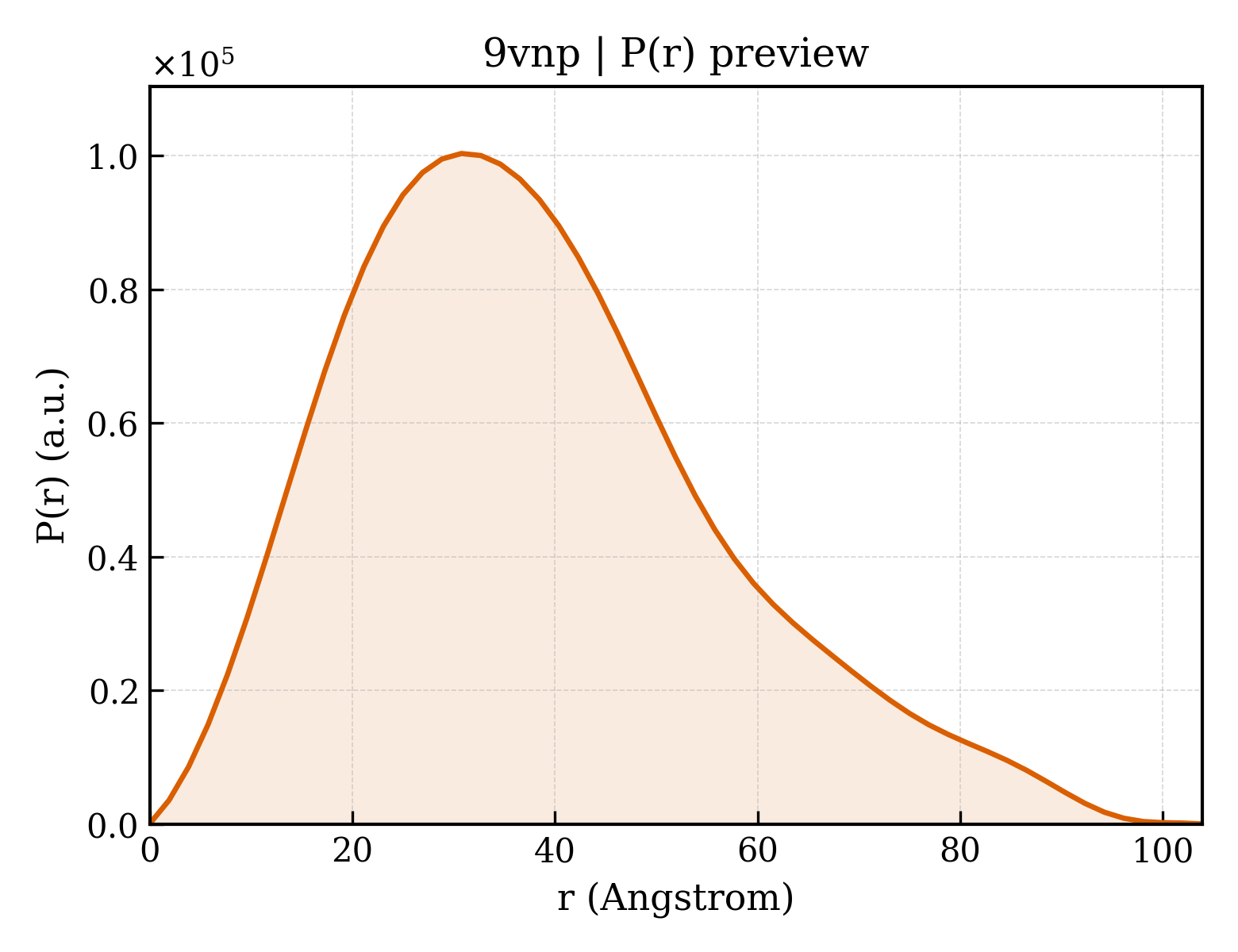

• pr_plot /app/data/visualization/pr_computation/vn/9vnp/9vnp_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/vn/9vnp/9vnp.dat
• saxs_fit /app/data/saxs_computation/vn/9vnp/9vnp.fit
• saxs_log /app/data/saxs_computation/vn/9vnp/9vnp.log
• saxs_plot /app/data/visualization/saxs_computation/vn/9vnp/9vnp_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/vn/9vnp/9vnp.fit
pddf	/app/data/pr_computation/vn/9vnp/9vnp.pr.out
profile	/app/data/saxs_computation/vn/9vnp/9vnp.dat
