9vut
Crystal structure of SADS-CoV main protease (Lys35Val)
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9vut |
| deposition_date | 2025-07-14 |
| title | Crystal structure of SADS-CoV main protease (Lys35Val) |
| keywords | swine acute diarrhea syndrome coronavirus, main protease, VIRAL PROTEIN; VIRAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.54 Å |
| rg_electron | 25.41 Å |
| i0 | 68999900.00 |
| molecular_weight | 64501.0 kDa |
| excluded_volume | 80558 ų |
| envelope_volume | 96894 ų |
| shell_volume | 31543 ų |
| envelope_diameter | 86.5 Å |
| shell_rg | 32.80 Å |
| envelope_rg | 25.40 Å |
| shape_rg | 25.41 Å |
| total_rg | 26.20 Å |
| total_atoms | 4532 |
| n_residues | 600 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

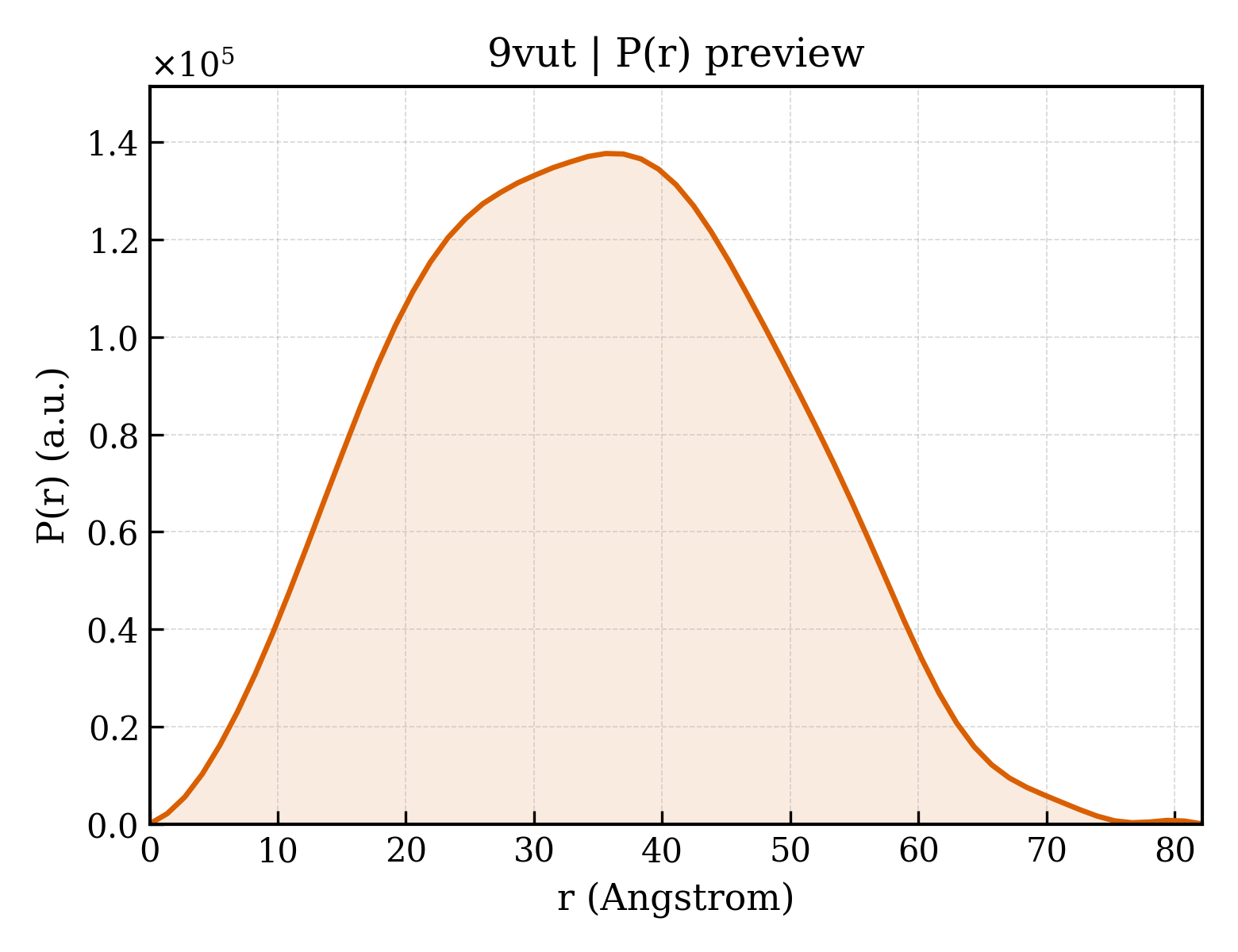

3. P(r) Analysis (GNOM)
| dmax | 82.2 Å |
| rg_real | 26.39 Å |
| rg_real_error | 0.49 Å |
| i0_real | 6.9000e+07 |
| i0_real_error | 8.6080e+05 |
| rg_reciprocal | 26.44 Å |
| i0_reciprocal | 69000000.0000 |
| total_estimate | 0.9083 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 35.6 Å |
| skewness | 0.112 |
| kurtosis | -0.584 |
| angular_range | — – 0.3000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 28250000.0000 |
| n_real_points | 61 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.939; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.990 |
