9vx7
Transcription factor

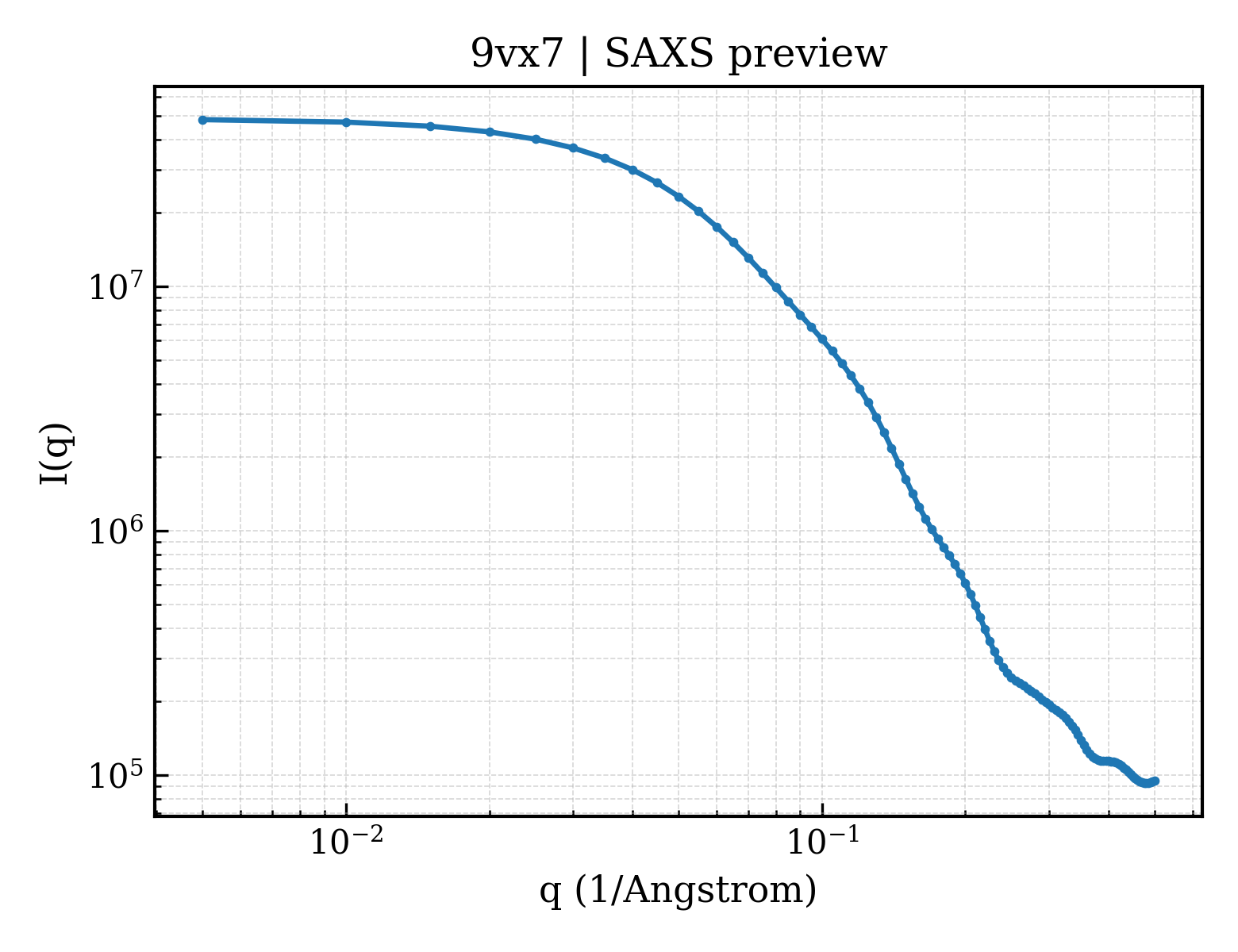

SAXS Profile

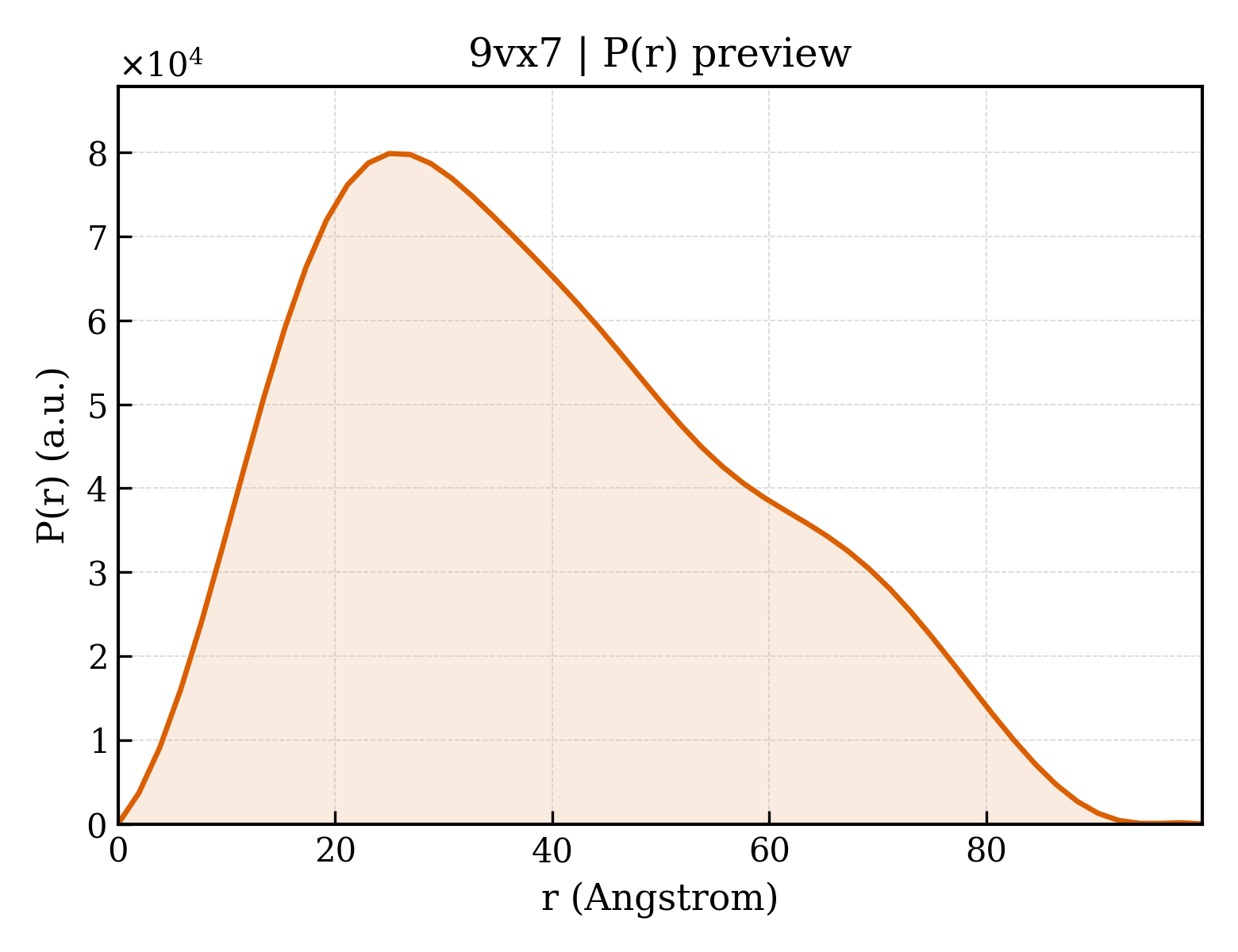

P(r) Distribution
1. Structure Basics
| entry_id | 9vx7 |
| deposition_date | 2025-07-18 |
| last_revision | 2026-05-27 |
| title | Transcription factor |
| keywords | transcription factor, TRANSCRIPTION, TRANSCRIPTION-DNA complex; TRANSCRIPTION/DNA |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 30.24 Å |
| rg_electron | 30.56 Å |
| i0 | 48572600.00 |
| molecular_weight | 46980.0 kDa |
| excluded_volume | 55685 ų |
| envelope_volume | 80726 ų |
| shell_volume | 23968 ų |
| envelope_diameter | 98.4 Å |
| shell_rg | 34.79 Å |
| envelope_rg | 29.86 Å |
| shape_rg | 30.56 Å |
| total_rg | 30.93 Å |
| total_atoms | 3234 |
| n_residues | 336 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 99.9 Å |
| rg_real | 30.48 Å |
| rg_real_error | 0.86 Å |
| i0_real | 4.8570e+07 |
| i0_real_error | 7.8680e+05 |
| rg_reciprocal | 30.38 Å |
| i0_reciprocal | 48570000.0000 |
| total_estimate | 0.8544 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 25.0 Å |
| skewness | 0.424 |
| kurtosis | -0.637 |
| angular_range | — – 0.2600 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4435000.0000 |
| n_real_points | 53 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.832; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.683; Smooth: 0.923 |
