1. Protein Identity and Related Structures Protein Identity & Related Structures

Photosystem I-associated linker protein CpcL

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 40	C-phycocyanin alpha subunit × 18 （P07121） C-phycocyanin beta subunit × 18 （P07120） Phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod × 2 （P07123） Phycobilisome 34.5 kDa linker polypeptide, phycoerythrocyanin-associated, rod × 1 （P31329） PHYCOCYANOBILIN × 54	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CPCL_NOSS1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain 1； PDBConstruct 1–192； UniProt 1–192

C-phycocyanin alpha subunit

OrganismNot specified

UniProt P07121

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 40	Photosystem I-associated linker protein CpcL × 1 （P29988） C-phycocyanin beta subunit × 18 （P07120） Phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod × 2 （P07123） Phycobilisome 34.5 kDa linker polypeptide, phycoerythrocyanin-associated, rod × 1 （P31329） PHYCOCYANOBILIN × 54	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHCA_NOSS1
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–163； UniProt 1–163 Author chain D； PDBConstruct 1–163； UniProt 1–163 Author chain F； PDBConstruct 1–163； UniProt 1–163 Author chain H； PDBConstruct 1–163； UniProt 1–163 Author chain J； PDBConstruct 1–163； UniProt 1–163 Author chain L； PDBConstruct 1–163； UniProt 1–163 Author chain N； PDBConstruct 1–163； UniProt 1–163 Author chain O； PDBConstruct 1–163； UniProt 1–163 Author chain Q； PDBConstruct 1–163； UniProt 1–163 Author chain S； PDBConstruct 1–163； UniProt 1–163 Author chain U； PDBConstruct 1–163； UniProt 1–163 Author chain W； PDBConstruct 1–163； UniProt 1–163 Author chain Y； PDBConstruct 1–163； UniProt 1–163 Author chain b； PDBConstruct 1–163； UniProt 1–163 Author chain d； PDBConstruct 1–163； UniProt 1–163 Author chain f； PDBConstruct 1–163； UniProt 1–163 Author chain h； PDBConstruct 1–163； UniProt 1–163 Author chain j； PDBConstruct 1–163； UniProt 1–163

C-phycocyanin beta subunit

OrganismNot specified

UniProt P07120

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 40	Photosystem I-associated linker protein CpcL × 1 （P29988） C-phycocyanin alpha subunit × 18 （P07121） Phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod × 2 （P07123） Phycobilisome 34.5 kDa linker polypeptide, phycoerythrocyanin-associated, rod × 1 （P31329） PHYCOCYANOBILIN × 54	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHCB_NOSS1
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–173； UniProt 1–173 Author chain E； PDBConstruct 1–173； UniProt 1–173 Author chain G； PDBConstruct 1–173； UniProt 1–173 Author chain I； PDBConstruct 1–173； UniProt 1–173 Author chain K； PDBConstruct 1–173； UniProt 1–173 Author chain M； PDBConstruct 1–173； UniProt 1–173 Author chain P； PDBConstruct 1–173； UniProt 1–173 Author chain R； PDBConstruct 1–173； UniProt 1–173 Author chain T； PDBConstruct 1–173； UniProt 1–173 Author chain V； PDBConstruct 1–173； UniProt 1–173 Author chain X； PDBConstruct 1–173； UniProt 1–173 Author chain Z； PDBConstruct 1–173； UniProt 1–173 Author chain a； PDBConstruct 1–173； UniProt 1–173 Author chain c； PDBConstruct 1–173； UniProt 1–173 Author chain e； PDBConstruct 1–173； UniProt 1–173 Author chain g； PDBConstruct 1–173； UniProt 1–173 Author chain i； PDBConstruct 1–173； UniProt 1–173 Author chain k； PDBConstruct 1–173； UniProt 1–173

Phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod

OrganismNot specified

UniProt P07123

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 40	Photosystem I-associated linker protein CpcL × 1 （P29988） C-phycocyanin alpha subunit × 18 （P07121） C-phycocyanin beta subunit × 18 （P07120） Phycobilisome 34.5 kDa linker polypeptide, phycoerythrocyanin-associated, rod × 1 （P31329） PHYCOCYANOBILIN × 54	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PYR1_NOSS1
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain 2； PDBConstruct 1–286； UniProt 1–286 Author chain 3； PDBConstruct 1–286； UniProt 1–286

Phycobilisome 34.5 kDa linker polypeptide, phycoerythrocyanin-associated, rod

OrganismNot specified

UniProt P31329

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 40	Photosystem I-associated linker protein CpcL × 1 （P29988） C-phycocyanin alpha subunit × 18 （P07121） C-phycocyanin beta subunit × 18 （P07120） Phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod × 2 （P07123） PHYCOCYANOBILIN × 54	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PYR2_NOSS1
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain 4； PDBConstruct 1–66； UniProt 213–278

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9w4j
Deposition date deposition_date	2025-07-31
Structure title title	Cryo-EM structure of CpcL-PBS3
Keywords keywords	Phycobilisomes, PHOTOSYNTHESIS; PHOTOSYNTHESIS
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9w4j__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

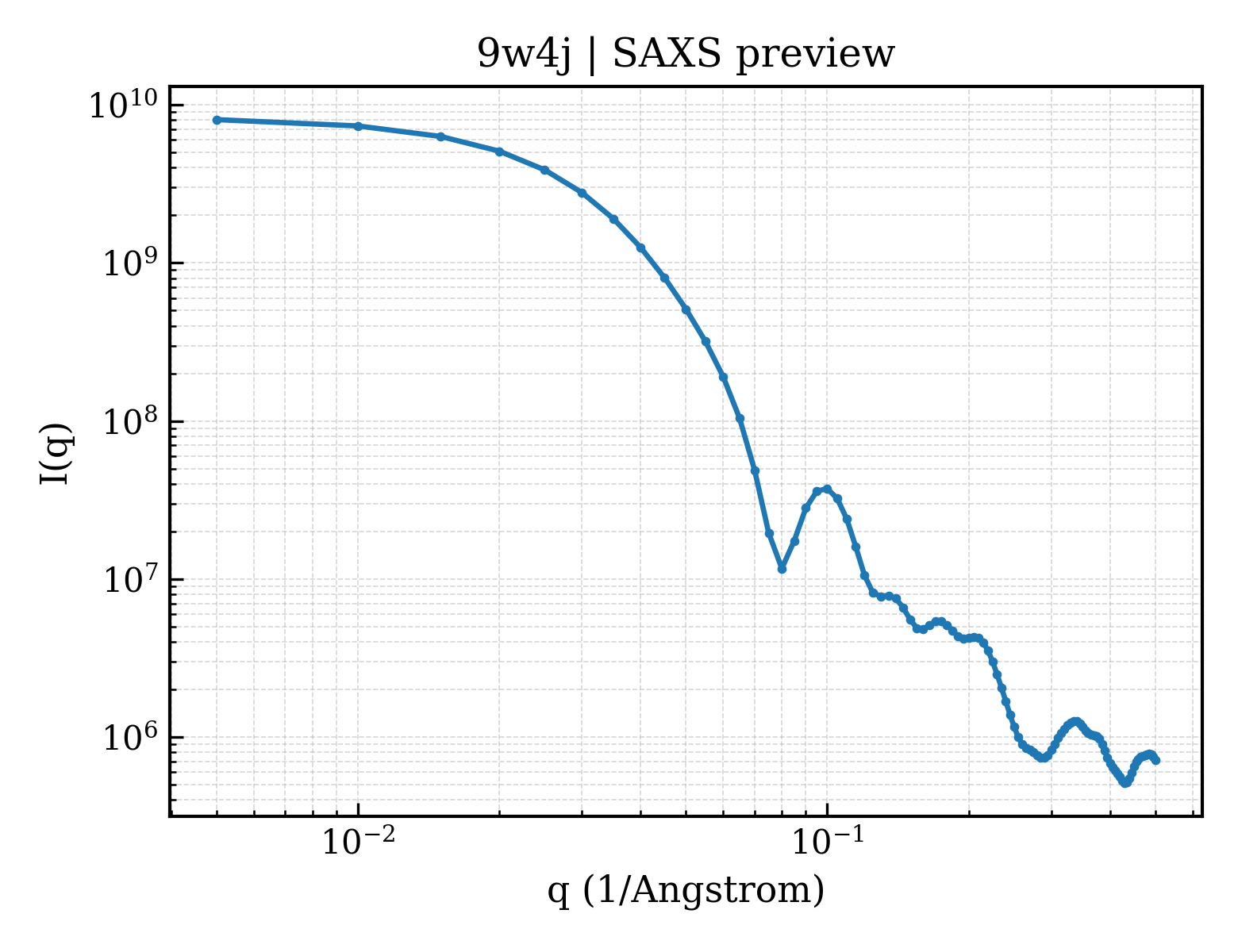

9w4j__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

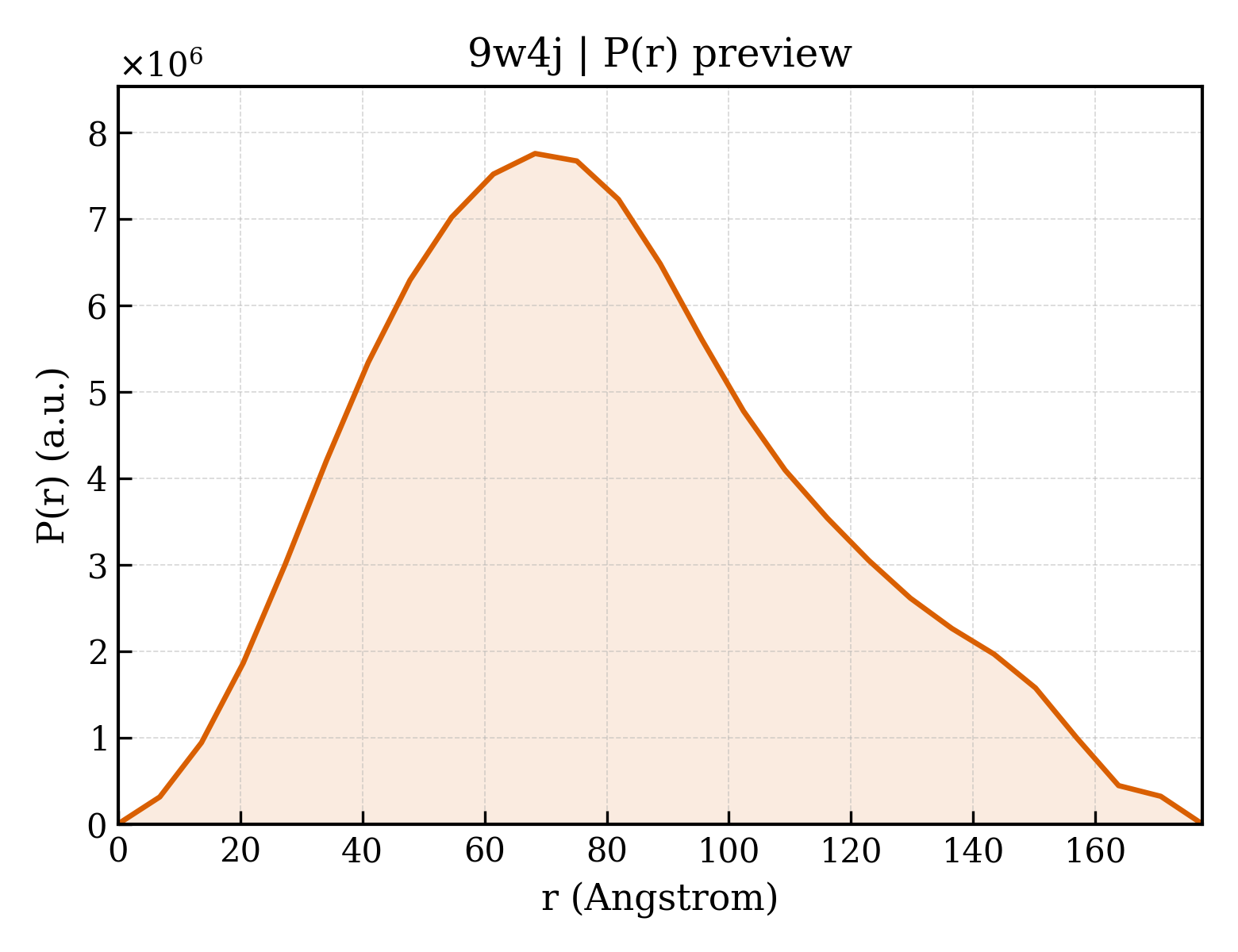

9w4j__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	60.61 Å
Rg (electron density)	60.39 Å
Total Rg	60.51 Å
Atom count	53917
Residues	6833
Excluded volume	954340 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9w4j__assembly_1__model_1`	40-meric （40）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Photosystem I-associated linker protein CpcL
Molecular weight formula_weight	22399.1 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	1
Atom count atom_count	53917

MALPLLEYKPTTQNQRVQSFGTADVNEDTPYIYRLENANSPSEIEELIWAAYRQVFNEQEILKFNRQIGLETQLKNRSITVKDFIRGLAKSERFYQLVVTPNNNYRLVEMSLKRLLGRSPYNEEEKIAWSIQIASKGWGGFVDALIDSTEYEQAFGDNTVPYQRKRLTTDRPFSFTPRYGADYRDRAGIVRP

Entity 2 Entity 2 polymer

Description description	C-phycocyanin alpha subunit
Molecular weight formula_weight	17475.5 kDa
Source method src_method	nat
Copy count entity_count	18

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H,J,L,O,Q,S,U,W,Y,N,b,d,f,h,j

MVKTPITEAIAAADTQGRFLGNTELQSARGRYERAAASLEAARGLTSNAQRLIDGATQAVYQKFPYTTQTPGPQFAADSRGKSKCARDVGHYLRIITYSLVAGGTGPLDEYLIAGLAEINSTFDLSPSWYVEALKHIKANHGLSGQAANEANTYIDYAINALS

Entity 3 Entity 3 polymer

Description description	C-phycocyanin beta subunit
Molecular weight formula_weight	18403.8 kDa
Source method src_method	nat
Copy count entity_count	18

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,E,G,I,K,M,P,R,T,V,X,Z,a,c,e,g,i,k

MTLDVFTKVVSQADSRGEFLSNEQLDALANVVKEGNKRLDVVNRITSNASAIVTNAARALFEEQPQLIAPGGNAYTNRRMAACLRDMEIILRYVTYAILAGDASVLDDRCLNGLRETYQALGTPGSSVAVGVQKMKDAAVGIANDPNGITKGDCSQLISEVASYFDRAAAAVG

Entity 4 Entity 4 polymer

Description description	Phycobilisome 32.1 kDa linker polypeptide, phycocyanin-associated, rod
Molecular weight formula_weight	32254.1 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	2,3

MAITTAASRLGTEPFSDAPKVELRPKASREEVESVIRAVYRHVLGNDYILASERLVSAESLLRDGNLTVREFVRSVAKSELYKKKFFYNSFQTRLIELNYKHLLGRAPYDESEVVYHLDLYQNKGYDAEIDSYIDSWEYQSNFGDNVVPYYRGFETQVGQKTAGFNRIFRLYRGYANSDRAQVEGTKSRLARELASNKASTIVGPSGTNDSWGFRASADVAPKKNLGNAVGEGDRVYRLEVTGIRSPGYPSVRRSSTVFIVPYERLSDKIQQVHKQGGKIVSVTSA

Entity 5 Entity 5 polymer

Description description	Phycobilisome 34.5 kDa linker polypeptide, phycoerythrocyanin-associated, rod
Molecular weight formula_weight	7233.3 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	4

AAPTLISSATKGDNRMFVIEAIAGGLNTNVAVRRSRQVYTVSYERLSATYQEIHKRGGKIVKISQV

Entity 6 Entity 6 non-polymer

Description description	PHYCOCYANOBILIN
Molecular weight formula_weight	588.7 kDa
Source method src_method	syn
Copy count entity_count	54

▶

Resolution resolution	2.93 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	74453
