1. Structure Basics

entry_id	9w4m
deposition_date	2025-07-31
title	ratTRPV1 bound with antagonist AMG517
keywords	antagonist, complex, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	45.32 Å
rg_electron	44.44 Å
i0	783300000.00
molecular_weight	248680.0 kDa
excluded_volume	317780 Å³
envelope_volume	456380 Å³
shell_volume	82493 Å³
envelope_diameter	138.3 Å
shell_rg	52.63 Å
envelope_rg	43.05 Å
shape_rg	44.45 Å
total_rg	44.79 Å
total_atoms	35110
n_residues	2148
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	136.0 Å
rg_real	44.93 Å
rg_real_error	0.88 Å
i0_real	7.8330e+08
i0_real_error	1.3550e+07
rg_reciprocal	45.32 Å
i0_reciprocal	783700000.0000
total_estimate	0.8888
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	62.1 Å
skewness	-0.050
kurtosis	-0.524
angular_range	— – 0.1750 Å⁻¹
current_alpha	0.0000
highest_alpha	49790000.0000
n_real_points	36
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.909; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.959; Smooth: 0.864

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Maltose/maltodextrin-binding periplasmic protein,Transient receptor potential cation channel subfamily V member 1
formula_weight	140466.6 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,C,D
atom_count	35110

MKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTNSGTGGGSGDDDDKSPMGSHHHHHHHHGSDYDIPTTENLYFQGAMDPMEQRASLDSEESESPPQENSCLDPPDRDPNCKPPPVKPHIFTTRSRTRLFGKGDSEEASPLDCPYEEGGLASCPIITVSSVLTIQRPGDGPASVRPSSQDSVSAGEKPPRLYDRRSIFDAVAQSNCQELESLLPFLQRSKKRLTDSEFKDPETGKTCLLKAMLNLHNGQNDTIALLLDVARKTDSLKQFVNASYTDSYYKGQTALHIAIERRNMTLVTLLVENGADVQAAANGDFFKKTKGRPGFYFGELPLSLAACTNQLAIVKFLLQNSWQPADISARDSVGNTVLHALVEVADNTVDNTKFVTSMYNEILILGAKLHPTLKLEEITNRKGLTPLALAASSGKIGVLAYILQREIHEPECRHLSRKFTEWAYGPVHSSLYDLSCIDTCEKNSVLEVIAYSSSETPNRHDMLLVEPLNRLLQDKWDRFVKRIFYFNFFVYCLYMIIFTAAAYYRPVEGLPPYKLKNTVGDYFRVTGEILSVSGGVYFFFRGIQYFLQRRPSLKSLFVDSYSEILFFVQSLFMLVSVVLYFSQRKEYVASMVFSLAMGWTNMLYYTRGFQQMGIYAVMIEKMILRDLCRFMFVYLVFLFGFSTAVVTLIEDGKNNSLPMESTPHKCRGSACKPGNSYNSLYSTCLELFKFTIGMGDLEFTENYDFKAVFIILLLAYVILTYILLLNMLIALMGETVNKIAQESKNIWKLQRAITILDTEKSFLKCMRKAFRSGKLLQVGFTPDGKDDYRWCFRVDEVNWTTWNTNVGIINEDPGNCEGVKRTLSFSLRSGRVSGRNWKNFALVPLLRDASTRDRHATQQEEVQLKHYTGSLKPEDAEVFKDSMVPGEK

Source

organism	Rattus norvegicus
common_name	Norway rat
ncbi_taxonomy_id	10116
host_organism	Homo sapiens

Entity 2 non-polymer

description	~{N}-[4-[6-[4-(trifluoromethyl)phenyl]pyrimidin-4-yl]oxy-1,3-benzothiazol-2-yl]ethanamide
formula_weight	430.4 kDa
src_method	syn
entity_count	4

Entity 3 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.700 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.70 Å
resolution_method	—
num_particles	368794

fit	/app/data/saxs_computation/w4/9w4m/9w4m.fit
pddf	/app/data/pr_computation/w4/9w4m/9w4m.pr.out
profile	/app/data/saxs_computation/w4/9w4m/9w4m.dat

ratTRPV1 bound with antagonist AMG517

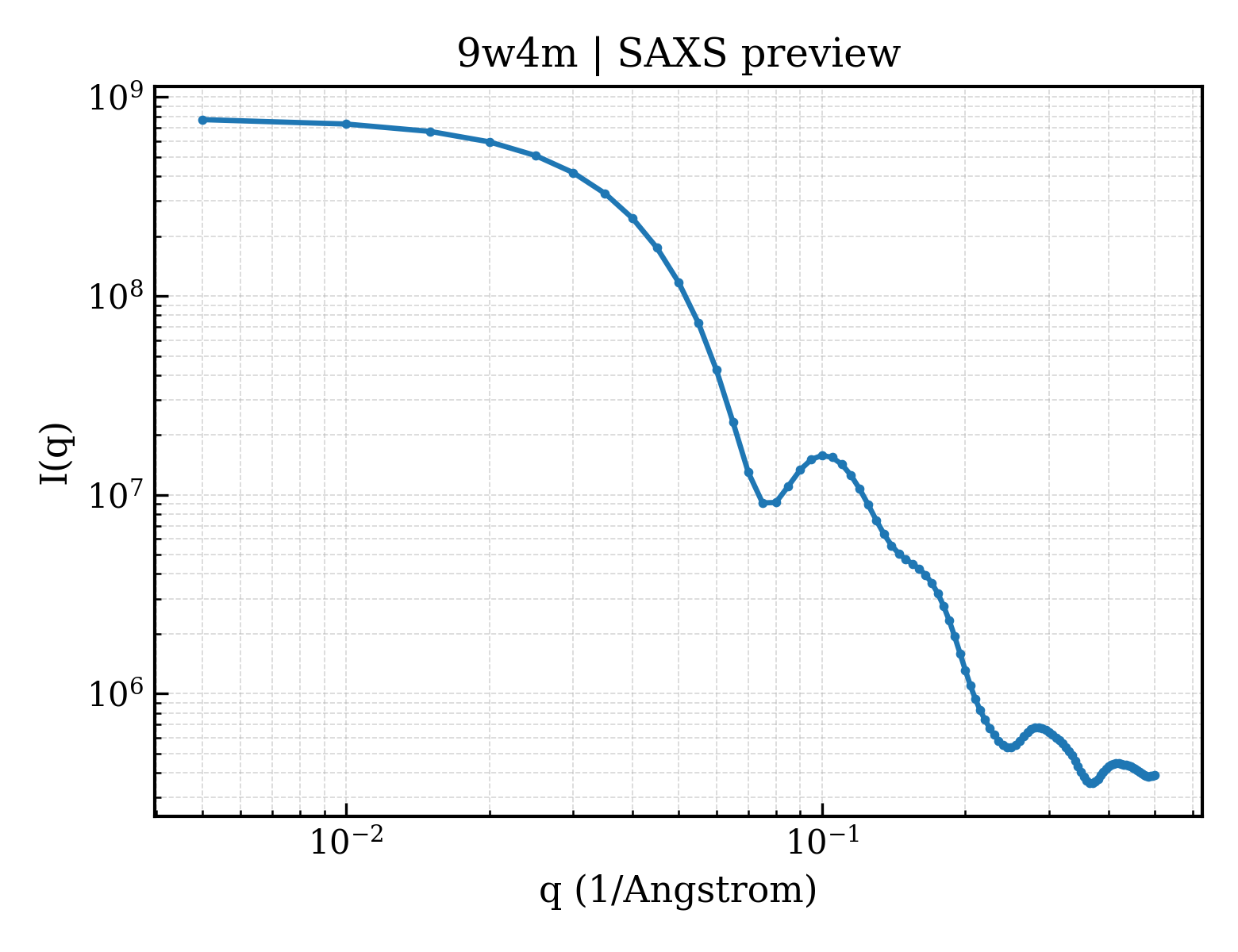

SAXS Profile

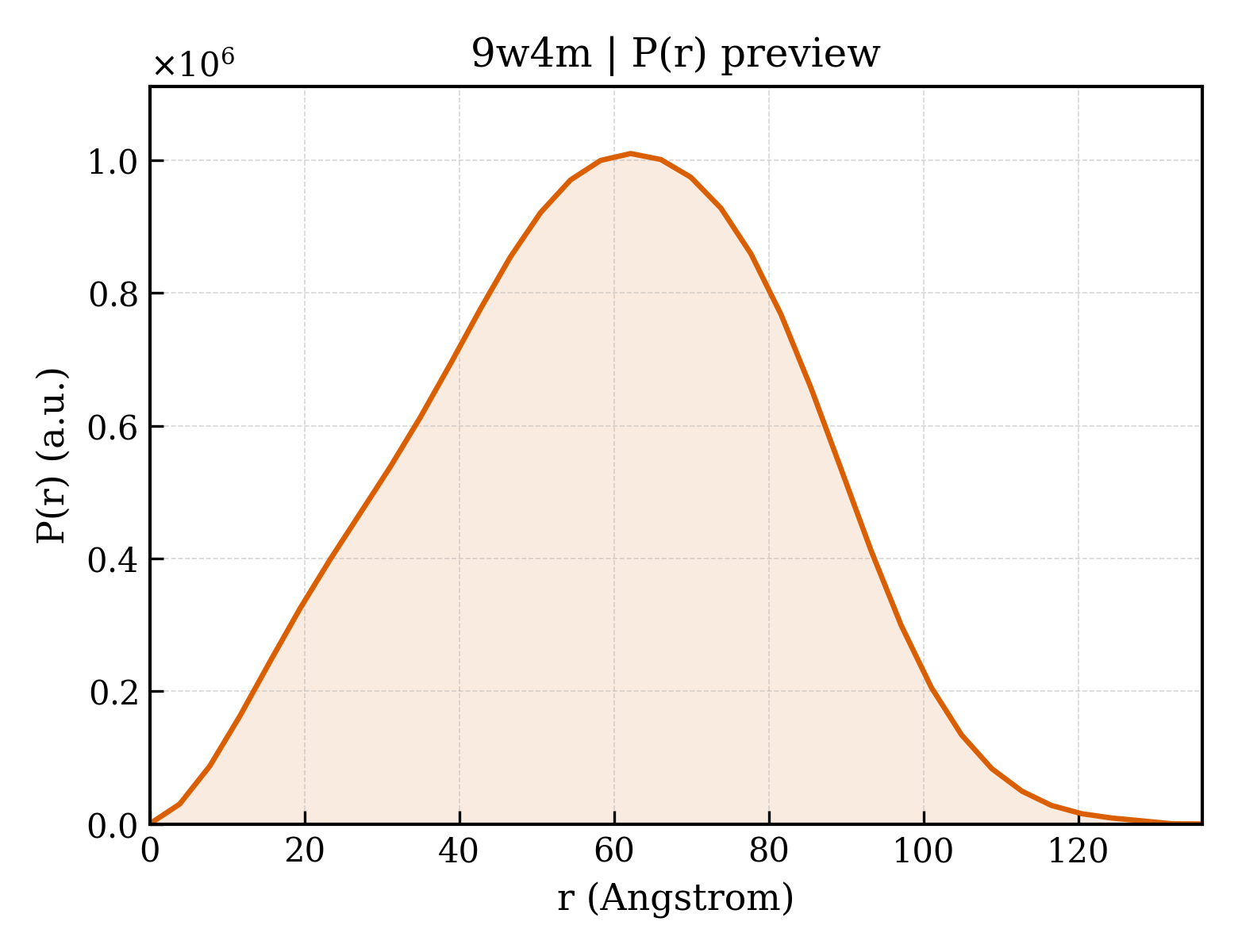

P(r) Distribution
