9w8n
Isomerase at 290K
SAXS Profile

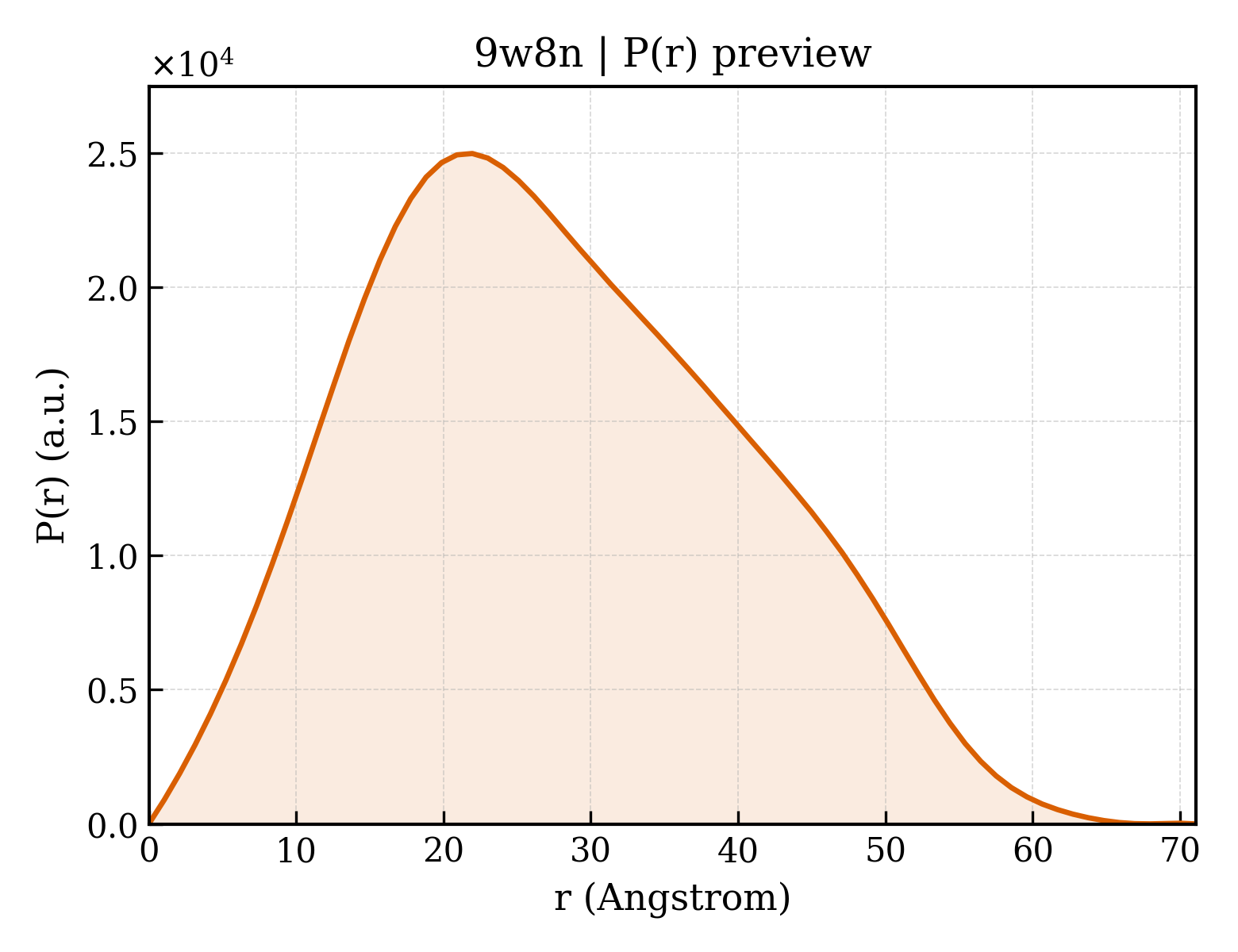

P(r) Distribution
1. Structure Basics
| entry_id | 9w8n |
| deposition_date | 2025-08-07 |
| last_revision | 2025-08-20 |
| title | Isomerase at 290K |
| keywords | Isomerase, Immunophilin; ISOMERASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 21.49 Å |
| rg_electron | 20.73 Å |
| i0 | 10290100.00 |
| molecular_weight | 23903.0 kDa |
| excluded_volume | 29936 ų |
| envelope_volume | 37661 ų |
| shell_volume | 15962 ų |
| envelope_diameter | 67.2 Å |
| shell_rg | 25.74 Å |
| envelope_rg | 20.57 Å |
| shape_rg | 20.71 Å |
| total_rg | 21.56 Å |
| total_atoms | 1680 |
| n_residues | 216 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 71.1 Å |
| rg_real | 21.52 Å |
| rg_real_error | 0.53 Å |
| i0_real | 1.0290e+07 |
| i0_real_error | 1.4120e+05 |
| rg_reciprocal | 21.52 Å |
| i0_reciprocal | 10290000.0000 |
| total_estimate | 0.8922 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.0 Å |
| skewness | 0.291 |
| kurtosis | -0.598 |
| angular_range | — – 0.3700 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1215000.0000 |
| n_real_points | 69 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.890; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.927; Smooth: 0.997 |
