SAXSdb — 9w9h

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Kinesin-like protein KIF3A

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Kinesin-like protein KIF3B × 1 （Q61771） Kinesin-associated protein 3 × 1 （P70188）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KIF3A_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 13–233； UniProt 481–701

Kinesin-like protein KIF3B

Mus musculus

UniProt Q61771

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Kinesin-like protein KIF3A × 1 （P28741） Kinesin-associated protein 3 × 1 （P70188）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KIF3B_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–273； UniProt 475–747

Kinesin-associated protein 3

Mus musculus

UniProt P70188

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Kinesin-like protein KIF3A × 1 （P28741） Kinesin-like protein KIF3B × 1 （Q61771）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KIFA3_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–693； UniProt 1–693

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9w9h
Deposition date deposition_date	2025-08-10
Structure title title	Cryo-EM structure of the mouse kinesin-2 tail in complex with KAP3 adaptor
Keywords keywords	Kinesin-2 motor Intracellular transport Kinesin-adaptor complex, MOTOR PROTEIN; MOTOR PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9w9h__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9w9h__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

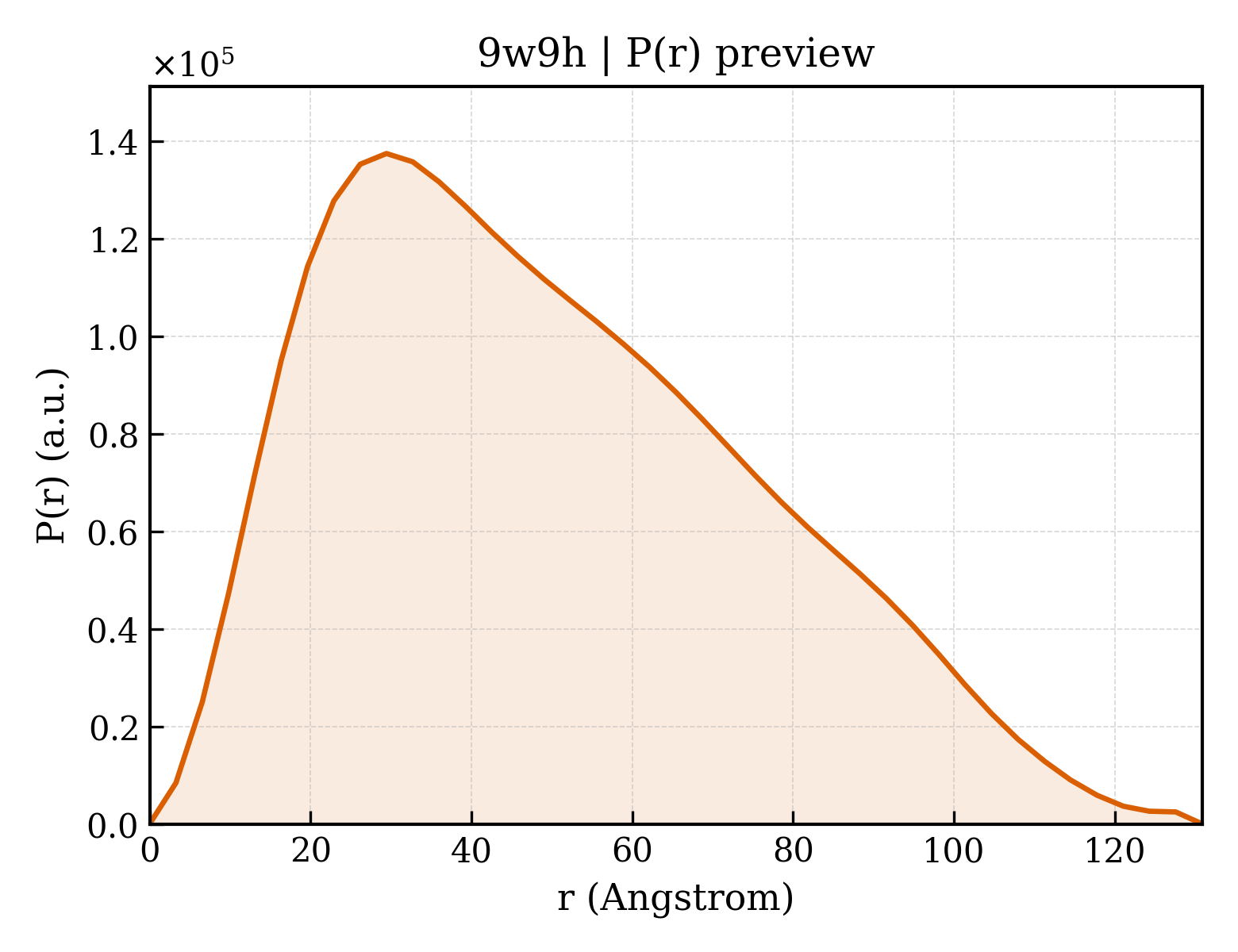

9w9h__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.11 Å
Rg (electron density)	39.49 Å
Total Rg	39.28 Å
Atom count	6085
Residues	742
Excluded volume	109560 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9w9h__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Kinesin-like protein KIF3A
Molecular weight formula_weight	27706.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6085

MGSSHHHHHHSQVIVGGVDLLAKAEEQEKLLEESNMELEERRRRAEQLRKELEEKEQERLDIEEKYTSLQEEAQGKTKKLKKVWTMLMAAKSEMADLQQEHQREIEGLLENIRQLSRELRLQMLIIDNFIPQDYQEMIENYVHWNEDIGEWQLKCVAYTGNNMRKQTPVPDKKERDPFEVDLSHVYLAYTEESLRQSLMKLERPRTSKGKARPKMGRRKRSAKPETVIDSLLQ

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	Kinesin-like protein KIF3B
Molecular weight formula_weight	31857.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

LVGGKNIVDHTNEQQKILEQKRQEIAEQKRREREIQQQMESRDEETLELKETYTSLQQEVDIKTKKLKKLFSKLQAVKAEIHDLQEEHIKERQELEQTQNELTRELKLKHLIIENFIPLEEKNKIMNRSFFDDEEDHWKLHPITRLENQQMMKRPVSAVGYKRPLSQHARMSMMIRPEPRYRAENIMLLELDMPSRTTRDYEGPAISPKVQAALDAALQDEDEIQVDASSFESTASRKPKARPKSGRKSGSSSSSSGNPASQFYPQSRGLVPK

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21

Entity 3 Entity 3 polymer

Description description	Kinesin-associated protein 3
Molecular weight formula_weight	80224.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MQGEDARYLKRKVKGGNIDVHPSEKALIVQYEVEATILGEMGDPMLGERKECQKIIRLKSLNANTDITSLARKVVEECKLIHPSKLSEVEQLLYYLQNRRDSLPGKEKKEKSSKPKDPPPFEGMEIDEVANINDMDEYIELLYEDIPDKVRGSALILQLARNPDNLEELLLNETALGALARVLREDWKQSVELATNIIYIFFCFSSFSHFHGLITHYKIGALCMNIIDHELKRHELWQEELSKKKKAVDEDLENQTLRKDYDKTFKKYQGLVVKQEQLLRVALYLLLNLAEDTRTELKMRNKNIVHMLVKALDRDNFELLILVVSFLKKLSIFMENKNDMVEMDIVEKLVKMIPCEHEDLLNITLRLLLNLSFDTGLRNKMVQVGLLPKLTALLGNENYKQIAMCVLYHISMDDRFKSMFAYTDCIPQLMKMLFECSDERIDLELISFCINLAANKRNVQLICEGNGLKMLMKRALKLKDPLLMKMIRNISQHDGPTKNLFIDYVGDLAAQISSDEEEEFVIECLGTLANLTIPDLDWELVLKEYKLVPFLKDKLKPGAAEDDLVLEVVIMIGTVSMDDSCAALLAKSGIIPALIELLNAQQEDDEFVCQIIYVFYQMVFHQATRDVIIKETQAPAYLIDLMHDKNNEIRKVCDNTLDIIAEYDEEWAKKIQSEKFRWHNSQWLEMVESRQLD

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli BL21

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.83 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	539244
