SAXSdb — 9wh1

▼

1. Structure Basics

entry_id	9wh1
deposition_date	2025-08-25
title	Structure of Klebsiella pneumoniae trypsin-HamAB bound with DNA, monomer
keywords	ATPase, Helicase, DNA BINDING PROTEIN/DNA, DNA BINDING PROTEIN-DNA complex; DNA BINDING PROTEIN/DNA
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	36.89 Å
rg_electron	36.76 Å
i0	264616000.00
molecular_weight	134180.0 kDa
excluded_volume	168920 Å³
envelope_volume	209280 Å³
shell_volume	48650 Å³
envelope_diameter	128.3 Å
shell_rg	41.55 Å
envelope_rg	36.98 Å
shape_rg	36.74 Å
total_rg	37.14 Å
total_atoms	9465
n_residues	1144
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	122.5 Å
rg_real	37.16 Å
rg_real_error	1.13 Å
i0_real	2.6460e+08
i0_real_error	4.0630e+06
rg_reciprocal	37.00 Å
i0_reciprocal	264600000.0000
total_estimate	0.8244
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	37.0 Å
skewness	0.550
kurtosis	-0.218
angular_range	— – 0.2150 Å⁻¹
current_alpha	0.0000
highest_alpha	98320000.0000
n_real_points	44
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.804; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.903; Smooth: 0.399

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Anti-bacteriophage protein A/HamA C-terminal domain-containing protein
formula_weight	59614.8 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	9465

MSIDIADKLGVKISYNNKNSSGFICHGDDYSYVLTAKHSICKSSPNDCKFKHKKCDTCVFSGVAKNKVSICKPDTDTFPLCKVKDVLLSPKKDVAILVLNKKSHIDLKTKELPSTKIINTANYNSSHKFVSCGYPAINEHQSVQPLHYNNFSLFRNEKICLQIINDTLTALEDPKNGLSGNSGAGIILNSSSCVGLLGLYTDTGDYGICYGDIVDFSINELLTSSGYVPLEMEEDLSNNFKALIQSDFMECFVRMECDLNLDKNRIVNLYRLCLDGKKYNYVKIGERLIDCIPSFSLSRKQLMRCRERNAFGKATLSAIRNFLKIERKTKISEMLLQGFLESYLHAPKLYSFDEINNAGFHGAHVKFNKNRNVELIHSAAFISNSLSDGVSYAIDVILKAFPELRSLDGLLGNTFLETNFTEDECQILASLLIPGESSYSQGYEDRLAIFIGYNHKIEESLIYENASRFPSLLEQKIILNVQQALEYRKEEINKLSIVNATIDCFFVPFDDVNKFNDEFIESLKNEED

Source

organism	Klebsiella pneumoniae
ncbi_taxonomy_id	573
host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

description	DNA polymerase theta (Helicase domain only)
formula_weight	99035.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MKKIDSFIIEKIFNSAYFKKLYKKIIKAYSALTIESENHFNISNTELRDIFRFIDLLANSSNQNARMCAYHWISLLEPFSDKWGKFSLISSLVYSKLGLYALDFNDHALPFSQRLENEAKKSAQTFSNTYIFTDAQFDIYTDMLKSPYYSFSGPTSLGKSFILKRYIEEIIQNSTSNIVILVPTRALISQFSLEIKNELHELIENFNYKIVTHGSLASKSDAVIIKHIFILTPERLLNLFSQGKVVSIDYLFVDEAHKLSNNDDSDVRSLTEYNAIDSALFNNPNMKIVFSSPNIENPEVFLNLFGREKIYASRIIESPVSQNLYLIDFHKKEIKYFSNSECIDIESGSLYTLNKKSDFIYNIGSRHGSNMIYCSSRAKAVDSALEFYQIRLSENIVLSPLLIDSIKKISNYIHPEYYLAMFLMKRIAYHHGQLPQAIRNIVEELFRKGDIDFIFCTPTLVEGVNMPTRNIFINCDDKIRLIADAKKNPNKTLAFWNLAGRAGRYCKELSGNIFCLQDESNRWDNTDIFLEKTAHLTTTIDARIESKSGLREIERYLSDTETDIYKRNQAIEYLANIMAVDTIRFKNNLKDSFVLRKFYDIHREELLSLAKLKANDILDIPIDIINSYKSLNFKIQRKVFDYVSVSPVNKKLPSLDYANILSVLELFYDLYRWGETETKYVKSKGQLTYFATLMNQWTNDYSINRIINENIDIKRTIVIERGQQPIPFDKNDINHVNKVIDDILYNIERILSFFFEKYFNHYYKCLAAILGEDNAGHNWATFLEYGSKNPLCISLQTLGISRHAANIIASSKELRKYLKFNEDSYEIISVNKQGLLNSLQKDSVEYGEVKIFL

Source

organism	Klebsiella pneumoniae
ncbi_taxonomy_id	573
host_organism	Escherichia coli BL21(DE3)

Entity 3 polymer

description	;DNA (5'-D(PAPAPAPAPAPAPAPAP*A)-3') ;
formula_weight	2773.9 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	C

AAAAAAAAA

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.23 Å
resolution_method	—
num_particles	55170

fit	/app/data/saxs_computation/wh/9wh1/9wh1.fit
pddf	/app/data/pr_computation/wh/9wh1/9wh1.pr.out
profile	/app/data/saxs_computation/wh/9wh1/9wh1.dat

Structure of Klebsiella pneumoniae trypsin-HamAB bound with DNA, monomer

SAXS Profile

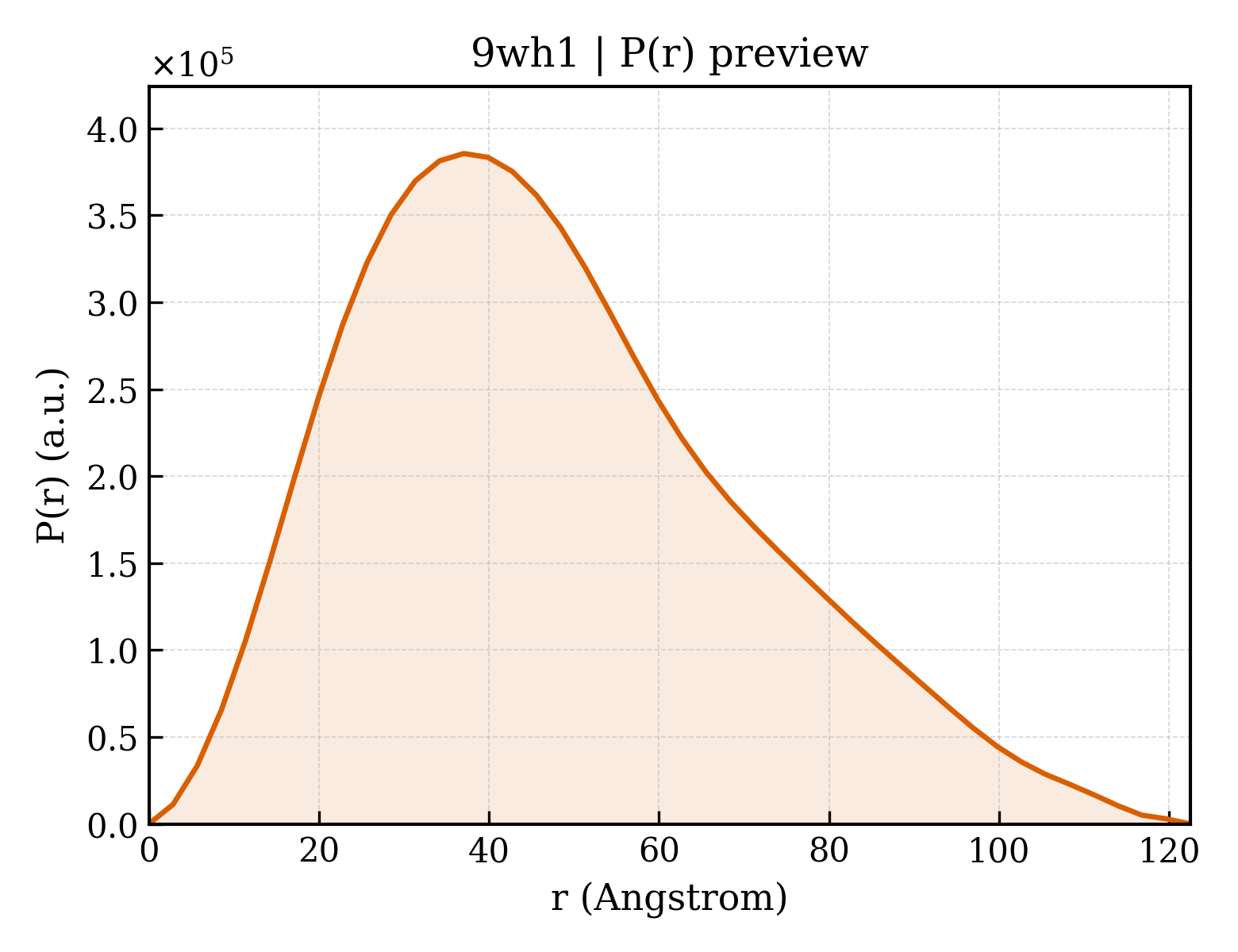

P(r) Distribution
