SAXSdb — 9whu

▼

1. Structure Basics

entry_id	9whu
deposition_date	2025-08-27
title	Structure of Klebsiella pneumoniae trypsin-HamAB bound with DNA, trimer
keywords	ATPase, Helicase, DNA BINDING PROTEIN/DNA, DNA BINDING PROTEIN-DNA complex; DNA BINDING PROTEIN/DNA
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	60.36 Å
rg_electron	60.65 Å
i0	2176130000.00
molecular_weight	401290.0 kDa
excluded_volume	505580 Å³
envelope_volume	688080 Å³
shell_volume	97061 Å³
envelope_diameter	211.6 Å
shell_rg	58.65 Å
envelope_rg	59.58 Å
shape_rg	60.63 Å
total_rg	60.64 Å
total_atoms	28311
n_residues	3428
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	215.2 Å
rg_real	60.67 Å
rg_real_error	2.41 Å
i0_real	2.1760e+09
i0_real_error	4.5740e+07
rg_reciprocal	60.06 Å
i0_reciprocal	2174000000.0000
total_estimate	0.8555
solution_quality	GOOD a GOOD solution
n_peaks	0
r_peak_primary	— Å
skewness	0.399
kurtosis	-0.500
angular_range	— – 0.1300 Å⁻¹
current_alpha	0.0002
highest_alpha	174600000.0000
n_real_points	27
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.771; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.818

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Anti-bacteriophage protein A/HamA C-terminal domain-containing protein
formula_weight	59614.8 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,D,G
atom_count	28311

MSIDIADKLGVKISYNNKNSSGFICHGDDYSYVLTAKHSICKSSPNDCKFKHKKCDTCVFSGVAKNKVSICKPDTDTFPLCKVKDVLLSPKKDVAILVLNKKSHIDLKTKELPSTKIINTANYNSSHKFVSCGYPAINEHQSVQPLHYNNFSLFRNEKICLQIINDTLTALEDPKNGLSGNSGAGIILNSSSCVGLLGLYTDTGDYGICYGDIVDFSINELLTSSGYVPLEMEEDLSNNFKALIQSDFMECFVRMECDLNLDKNRIVNLYRLCLDGKKYNYVKIGERLIDCIPSFSLSRKQLMRCRERNAFGKATLSAIRNFLKIERKTKISEMLLQGFLESYLHAPKLYSFDEINNAGFHGAHVKFNKNRNVELIHSAAFISNSLSDGVSYAIDVILKAFPELRSLDGLLGNTFLETNFTEDECQILASLLIPGESSYSQGYEDRLAIFIGYNHKIEESLIYENASRFPSLLEQKIILNVQQALEYRKEEINKLSIVNATIDCFFVPFDDVNKFNDEFIESLKNEED

Source

organism	Klebsiella pneumoniae
ncbi_taxonomy_id	573
host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

description	DNA polymerase theta (Helicase domain only)
formula_weight	99035.9 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	B,E,H

MKKIDSFIIEKIFNSAYFKKLYKKIIKAYSALTIESENHFNISNTELRDIFRFIDLLANSSNQNARMCAYHWISLLEPFSDKWGKFSLISSLVYSKLGLYALDFNDHALPFSQRLENEAKKSAQTFSNTYIFTDAQFDIYTDMLKSPYYSFSGPTSLGKSFILKRYIEEIIQNSTSNIVILVPTRALISQFSLEIKNELHELIENFNYKIVTHGSLASKSDAVIIKHIFILTPERLLNLFSQGKVVSIDYLFVDEAHKLSNNDDSDVRSLTEYNAIDSALFNNPNMKIVFSSPNIENPEVFLNLFGREKIYASRIIESPVSQNLYLIDFHKKEIKYFSNSECIDIESGSLYTLNKKSDFIYNIGSRHGSNMIYCSSRAKAVDSALEFYQIRLSENIVLSPLLIDSIKKISNYIHPEYYLAMFLMKRIAYHHGQLPQAIRNIVEELFRKGDIDFIFCTPTLVEGVNMPTRNIFINCDDKIRLIADAKKNPNKTLAFWNLAGRAGRYCKELSGNIFCLQDESNRWDNTDIFLEKTAHLTTTIDARIESKSGLREIERYLSDTETDIYKRNQAIEYLANIMAVDTIRFKNNLKDSFVLRKFYDIHREELLSLAKLKANDILDIPIDIINSYKSLNFKIQRKVFDYVSVSPVNKKLPSLDYANILSVLELFYDLYRWGETETKYVKSKGQLTYFATLMNQWTNDYSINRIINENIDIKRTIVIERGQQPIPFDKNDINHVNKVIDDILYNIERILSFFFEKYFNHYYKCLAAILGEDNAGHNWATFLEYGSKNPLCISLQTLGISRHAANIIASSKELRKYLKFNEDSYEIISVNKQGLLNSLQKDSVEYGEVKIFL

Source

organism	Klebsiella pneumoniae
ncbi_taxonomy_id	573
host_organism	Escherichia coli BL21(DE3)

Entity 3 polymer

description	;DNA (5'-D(PAPAPAPAPAPAP*A)-3') ;
formula_weight	2147.5 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	F

AAAAAAA

Entity 4 polymer

description	;DNA (5'-D(PAPAPAPAPAPAPAPA)-3') ;
formula_weight	2460.7 kDa
src_method	syn
entity_count	2

Polymer

type	polydeoxyribonucleotide
strand_id	I,C

AAAAAAAA

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	3.50 Å
resolution_method	—
num_particles	50060

fit	/app/data/saxs_computation/wh/9whu/9whu.fit
pddf	/app/data/pr_computation/wh/9whu/9whu.pr.out
profile	/app/data/saxs_computation/wh/9whu/9whu.dat

Structure of Klebsiella pneumoniae trypsin-HamAB bound with DNA, trimer

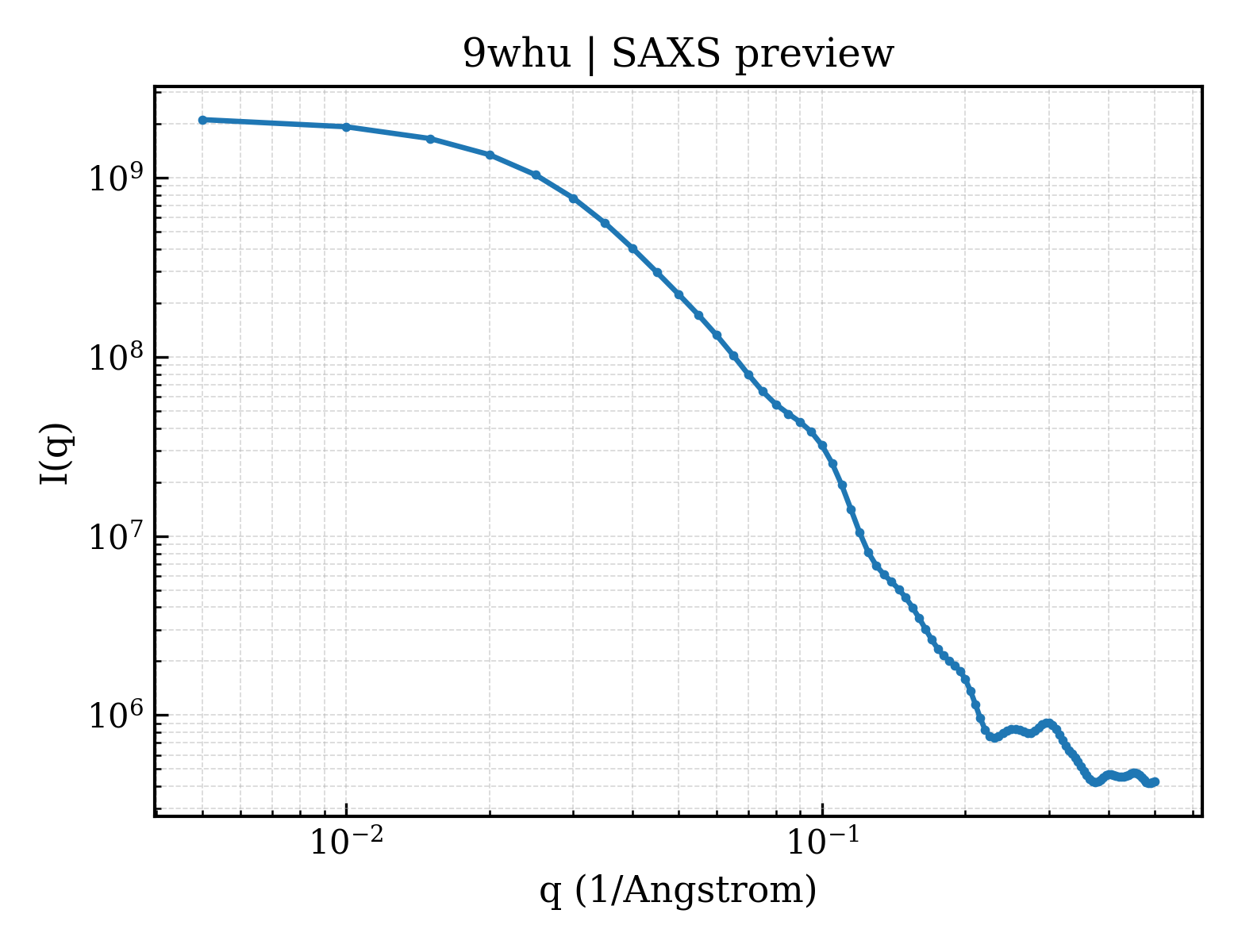

SAXS Profile

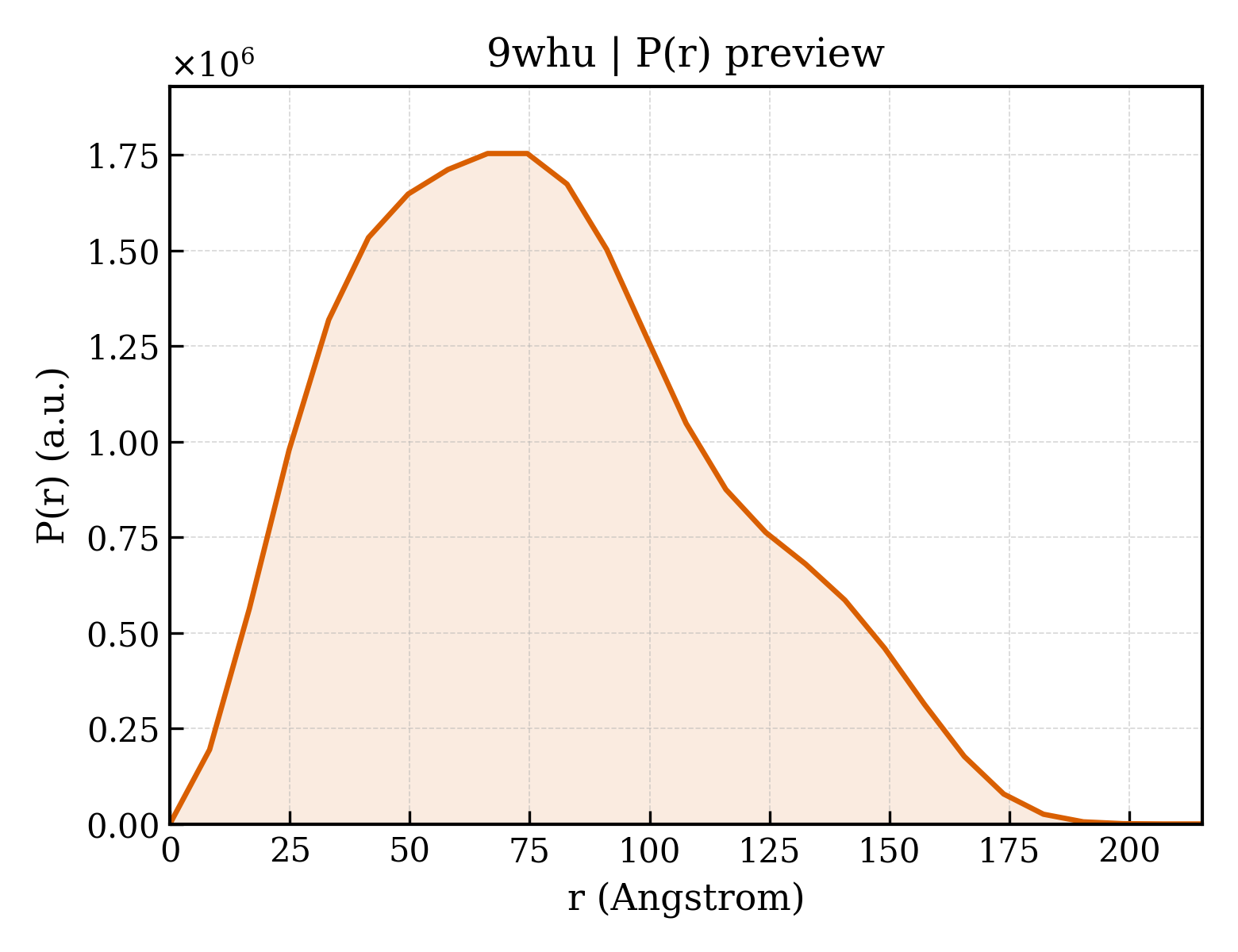

P(r) Distribution
