9wl5
ALECT2 type Ia filament from renal biopsy tissue of an individual with ALECT2 amyloidosis
SAXS Profile

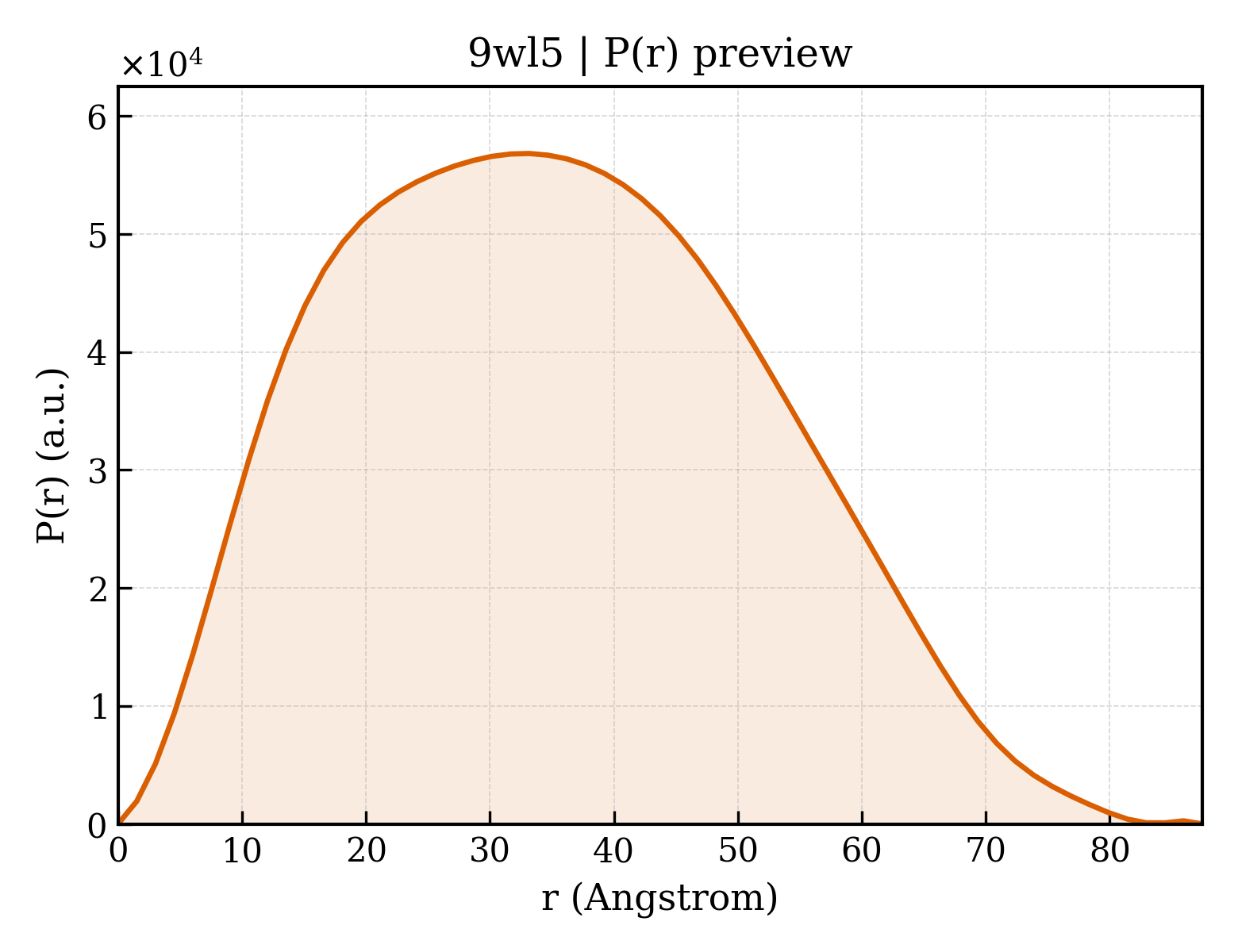

P(r) Distribution
1. Structure Basics
| entry_id | 9wl5 |
| deposition_date | 2025-09-02 |
| title | ALECT2 type Ia filament from renal biopsy tissue of an individual with ALECT2 amyloidosis |
| keywords | Leukocyte chemotactic factor 2 amyloid filament, PROTEIN FIBRIL; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 27.36 Å |
| rg_electron | 26.52 Å |
| i0 | 33779400.00 |
| molecular_weight | 43745.0 kDa |
| excluded_volume | 54386 ų |
| envelope_volume | 67436 ų |
| shell_volume | 21894 ų |
| envelope_diameter | 87.1 Å |
| shell_rg | 32.74 Å |
| envelope_rg | 26.76 Å |
| shape_rg | 26.47 Å |
| total_rg | 27.38 Å |
| total_atoms | 3066 |
| n_residues | 399 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 87.5 Å |
| rg_real | 27.39 Å |
| rg_real_error | 0.78 Å |
| i0_real | 3.3780e+07 |
| i0_real_error | 5.5860e+05 |
| rg_reciprocal | 27.38 Å |
| i0_reciprocal | 33780000.0000 |
| total_estimate | 0.9023 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 33.2 Å |
| skewness | 0.223 |
| kurtosis | -0.667 |
| angular_range | — – 0.2900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2086000.0000 |
| n_real_points | 59 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.960; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.926; Smooth: 0.920 |
