9wl7
ALECT2 type IIa filament from renal biopsy tissue of an individual with ALECT2 amyloidosis

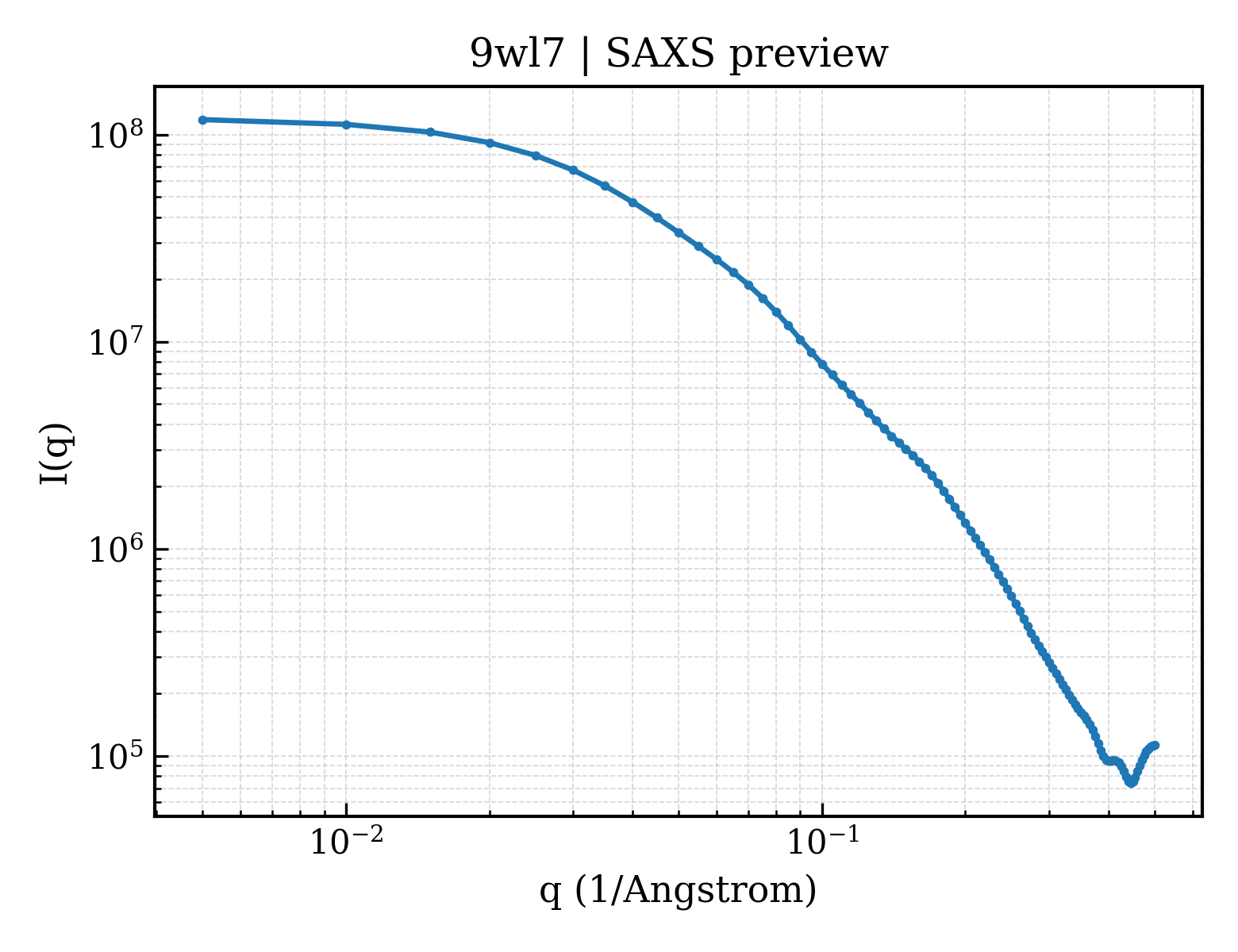

SAXS Profile

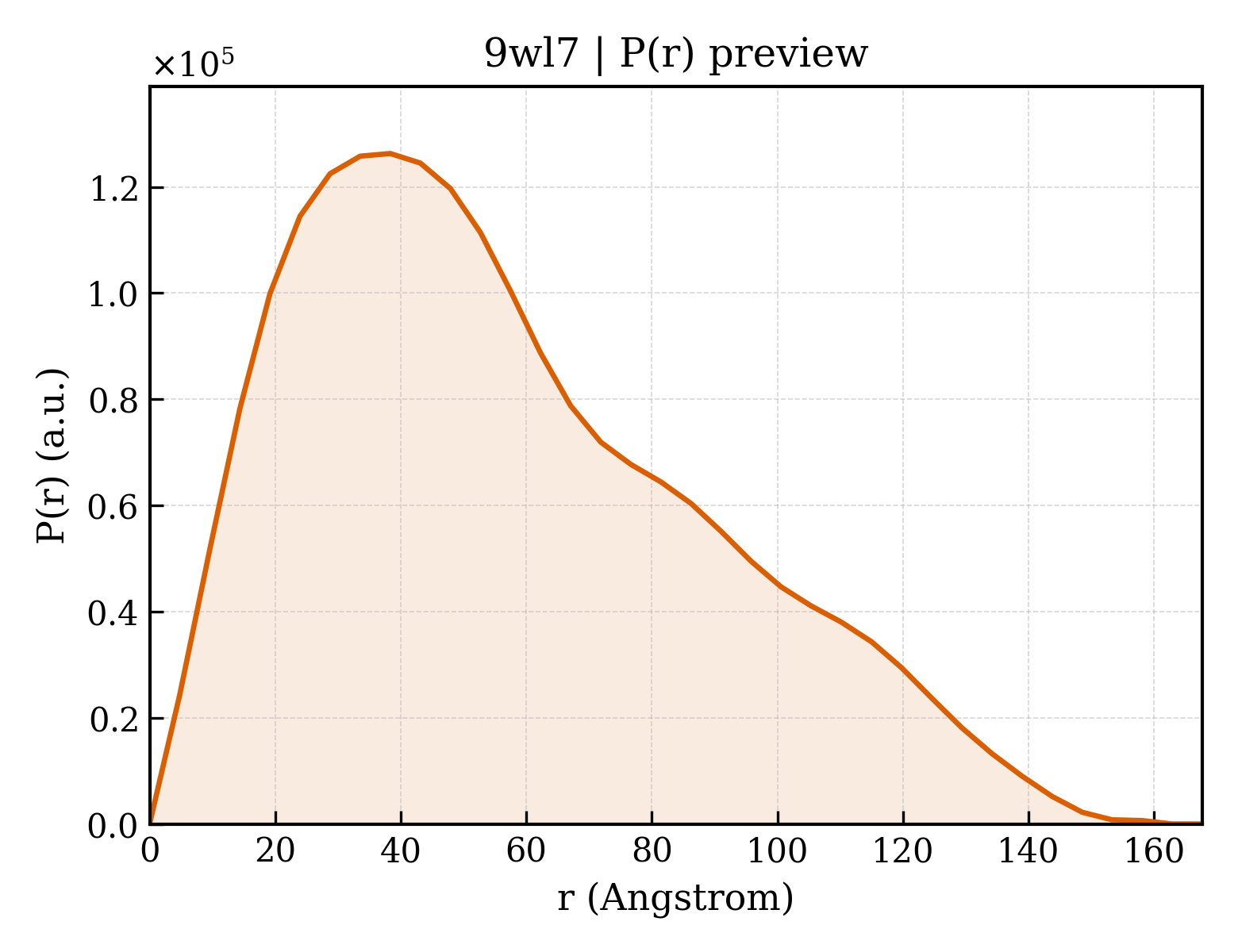

P(r) Distribution
1. Structure Basics
| entry_id | 9wl7 |
| deposition_date | 2025-09-02 |
| title | ALECT2 type IIa filament from renal biopsy tissue of an individual with ALECT2 amyloidosis |
| keywords | Leukocyte chemotactic factor 2 amyloid filament, PROTEIN FIBRIL; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 45.20 Å |
| rg_electron | 47.13 Å |
| i0 | 120204000.00 |
| molecular_weight | 87491.0 kDa |
| excluded_volume | 108770 ų |
| envelope_volume | 145350 ų |
| shell_volume | 29439 ų |
| envelope_diameter | 166.2 Å |
| shell_rg | 41.84 Å |
| envelope_rg | 47.52 Å |
| shape_rg | 47.13 Å |
| total_rg | 46.91 Å |
| total_atoms | 6132 |
| n_residues | 798 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 167.7 Å |
| rg_real | 46.08 Å |
| rg_real_error | 2.67 Å |
| i0_real | 1.2020e+08 |
| i0_real_error | 2.5710e+06 |
| rg_reciprocal | 45.21 Å |
| i0_reciprocal | 120100000.0000 |
| total_estimate | 0.7289 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 38.3 Å |
| skewness | 0.601 |
| kurtosis | -0.410 |
| angular_range | — – 0.1750 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3391000.0000 |
| n_real_points | 36 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.509; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.207; Smooth: 0.740 |
