9wmn

Structure of the apo-state human proline transporter purified in DDM/CHS buffer

Method: ELECTRON MICROSCOPY D_max: 81.6 Å Quality: GOOD

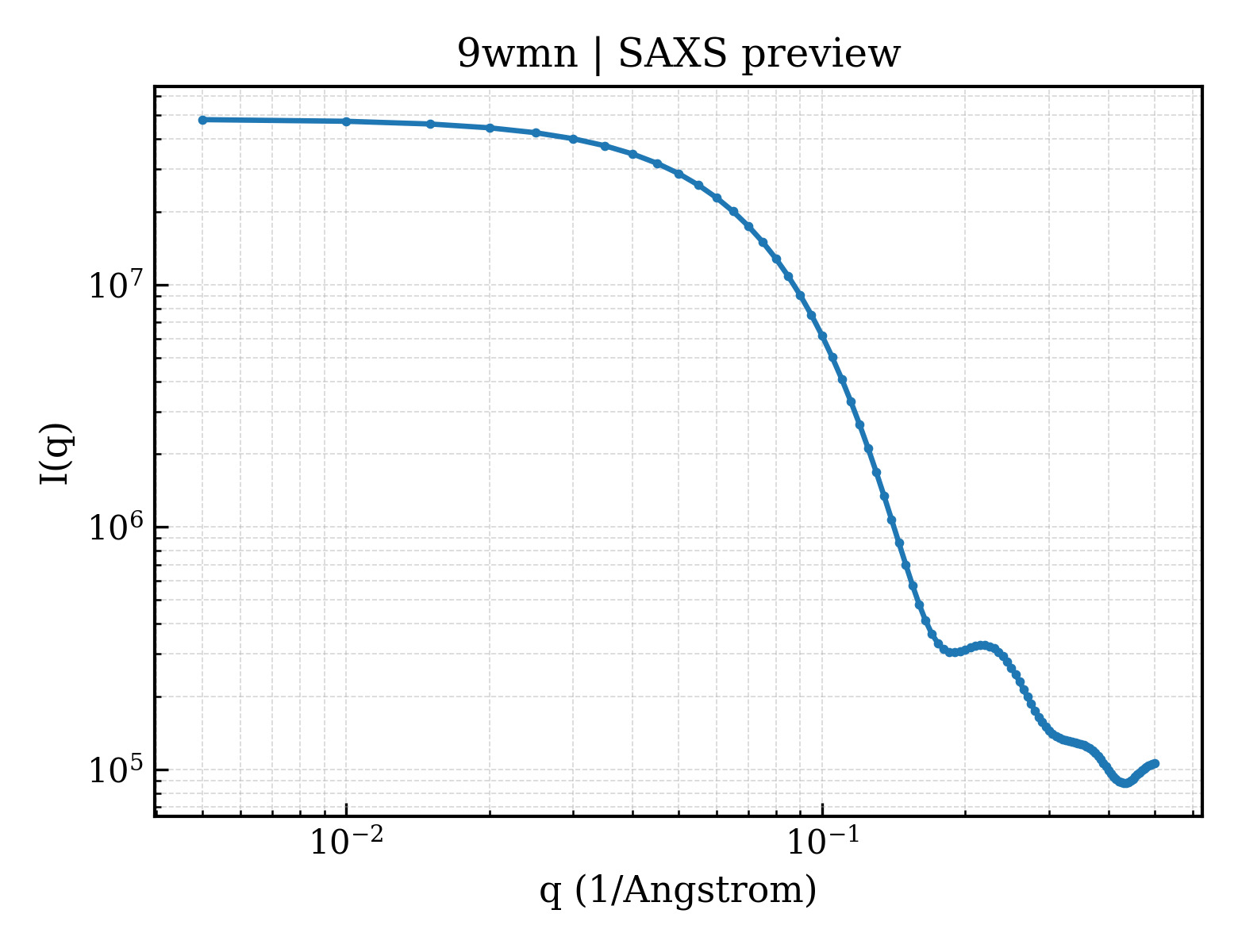

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9wmn
deposition_date	2025-09-03
title	Structure of the apo-state human proline transporter purified in DDM/CHS buffer
keywords	human proline transporter purified, 12 transmembrane helices, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	24.92 Å
rg_electron	23.57 Å
i0	48263400.00
molecular_weight	63171.0 kDa
excluded_volume	82763 Å³
envelope_volume	90865 Å³
shell_volume	31213 Å³
envelope_diameter	83.0 Å
shell_rg	31.71 Å
envelope_rg	23.94 Å
shape_rg	23.57 Å
total_rg	24.56 Å
total_atoms	4461
n_residues	540
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	81.6 Å
rg_real	24.89 Å
rg_real_error	0.55 Å
i0_real	4.8260e+07
i0_real_error	6.2850e+05
rg_reciprocal	24.90 Å
i0_reciprocal	48260000.0000
total_estimate	0.8842
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	29.8 Å
skewness	0.372
kurtosis	-0.206
angular_range	— – 0.3200 Å⁻¹
current_alpha	0.0000
highest_alpha	7951000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.839; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.977

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (5)

Entity 1 polymer

description	Sodium-dependent proline transporter
formula_weight	70960.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4461

MKKLQGAHLRKPVTPDLLMTPSDQGDVDLDVDFAAHRGNWTGKLDFLLSCIGYCVGLGNVWRFPYRAYTNGGGAFLVPYFLMLAICGIPLFFLELSLGQFSSLGPLAVWKISPLFKGAGAAMLLIVGLVAIYYNMIIAYVLFYLFASLTSDLPWEHCGNWWNTELCLEHRVSKDGNGALPLNLTCTVSPSEEYWSRYVLHIQGSQGIGSPGEIRWNLCLCLLLAWVIVFLCILKGVKSSGKVVYFTATFPYLILLMLLVRGVTLPGAWKGIQFYLTPQFHHLLSSKVWIEAALQIFYSLGVGFGGLLTFASYNTFHQNIYRDTFIVTLGNAITSILAGFAIFSVLGYMSQELGVPVDQVAKAGPGLAFVVYPQAMTMLPLSPFWSFLFFFMLLTLGLDSQFAFLETIVTAVTDEFPYYLRPKKAVFSGLICVAMYLMGLILTTDGGMYWLVLLDDYSASFGLMVVVITTCLAVTRVYGIQRFCRDIHMMLGFKPGLYFRACWLFLSPATLLALMVYSIVKYQPSEYGSYRFPPWAELLGILMGLLSCLMIPAGMLVAVLREEGSLWERLQQASRPAMDWGPSLEENRTGMYVATLAGSQSPKPLMVHMRKYGGITSFENTAIEVDREIAEEEESMM

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	CHOLESTEROL HEMISUCCINATE
formula_weight	486.7 kDa
src_method	syn
entity_count	4

Entity 5 non-polymer

description	CHOLESTEROL
formula_weight	386.7 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.91 Å
resolution_method	—
num_particles	56150
