9wx9

Structure of the L-proline-free human proline transporter purified in DDM buffer

Method: ELECTRON MICROSCOPY D_max: 82.2 Å Quality: GOOD

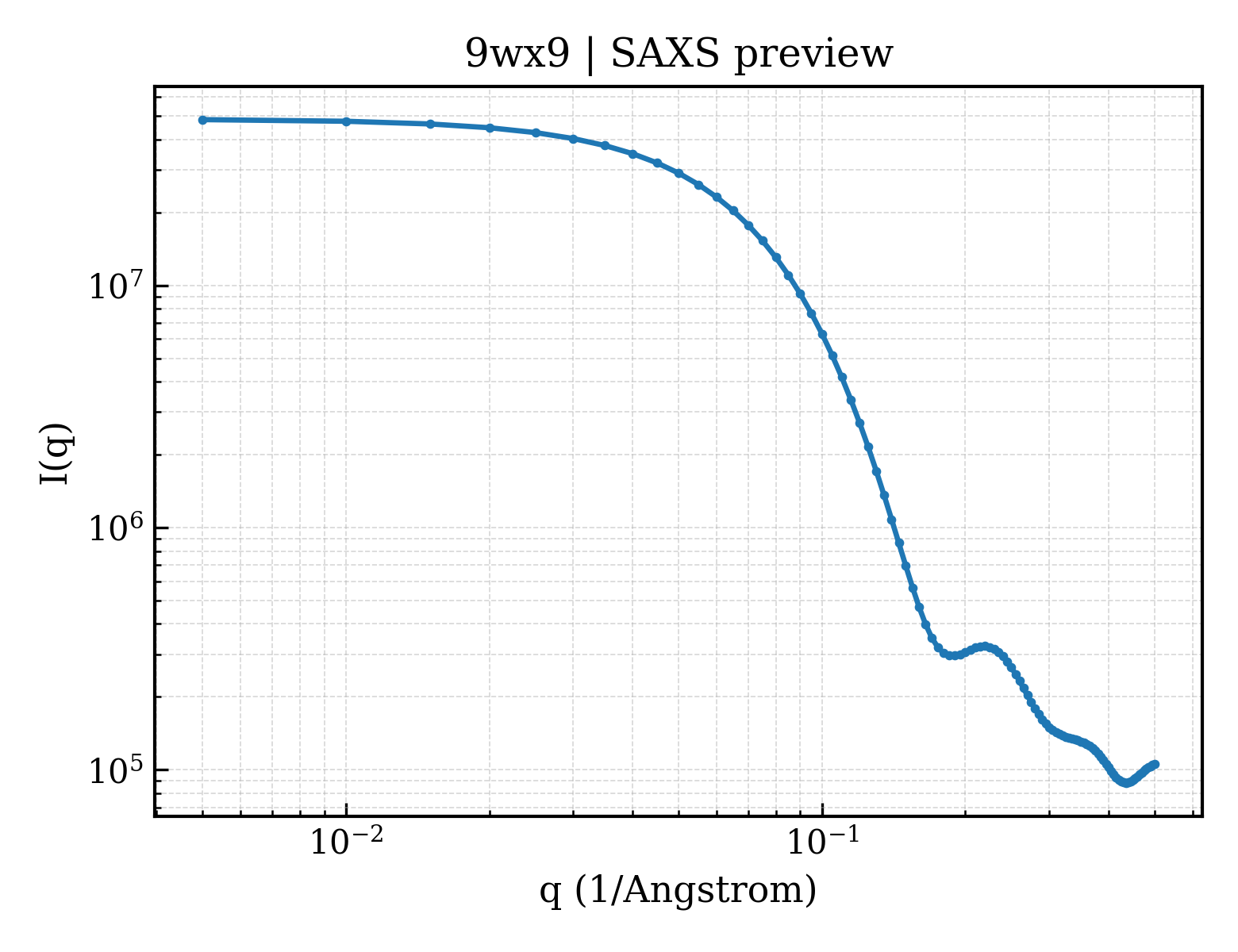

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9wx9
deposition_date	2025-09-25
title	Structure of the L-proline-free human proline transporter purified in DDM buffer
keywords	human proline transporter purified, 12 transmembrane helices, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	24.82 Å
rg_electron	23.59 Å
i0	48554900.00
molecular_weight	60450.0 kDa
excluded_volume	78174 Å³
envelope_volume	87391 Å³
shell_volume	30290 Å³
envelope_diameter	83.0 Å
shell_rg	31.48 Å
envelope_rg	23.85 Å
shape_rg	23.59 Å
total_rg	24.55 Å
total_atoms	4265
n_residues	540
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	82.2 Å
rg_real	24.79 Å
rg_real_error	0.52 Å
i0_real	4.8550e+07
i0_real_error	7.1810e+05
rg_reciprocal	24.80 Å
i0_reciprocal	48560000.0000
total_estimate	0.8792
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	30.0 Å
skewness	0.379
kurtosis	-0.187
angular_range	— – 0.3200 Å⁻¹
current_alpha	0.0000
highest_alpha	7902000.0000
n_real_points	64
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.817; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.982

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Sodium-dependent proline transporter
formula_weight	70960.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	4265

MKKLQGAHLRKPVTPDLLMTPSDQGDVDLDVDFAAHRGNWTGKLDFLLSCIGYCVGLGNVWRFPYRAYTNGGGAFLVPYFLMLAICGIPLFFLELSLGQFSSLGPLAVWKISPLFKGAGAAMLLIVGLVAIYYNMIIAYVLFYLFASLTSDLPWEHCGNWWNTELCLEHRVSKDGNGALPLNLTCTVSPSEEYWSRYVLHIQGSQGIGSPGEIRWNLCLCLLLAWVIVFLCILKGVKSSGKVVYFTATFPYLILLMLLVRGVTLPGAWKGIQFYLTPQFHHLLSSKVWIEAALQIFYSLGVGFGGLLTFASYNTFHQNIYRDTFIVTLGNAITSILAGFAIFSVLGYMSQELGVPVDQVAKAGPGLAFVVYPQAMTMLPLSPFWSFLFFFMLLTLGLDSQFAFLETIVTAVTDEFPYYLRPKKAVFSGLICVAMYLMGLILTTDGGMYWLVLLDDYSASFGLMVVVITTCLAVTRVYGIQRFCRDIHMMLGFKPGLYFRACWLFLSPATLLALMVYSIVKYQPSEYGSYRFPPWAELLGILMGLLSCLMIPAGMLVAVLREEGSLWERLQQASRPAMDWGPSLEENRTGMYVATLAGSQSPKPLMVHMRKYGGITSFENTAIEVDREIAEEEESMM

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	1

Entity 3 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.84 Å
resolution_method	—
num_particles	356183
