9wpr
Solution structure of N-terminal domain of mouse HBS1L protein
SAXS Profile

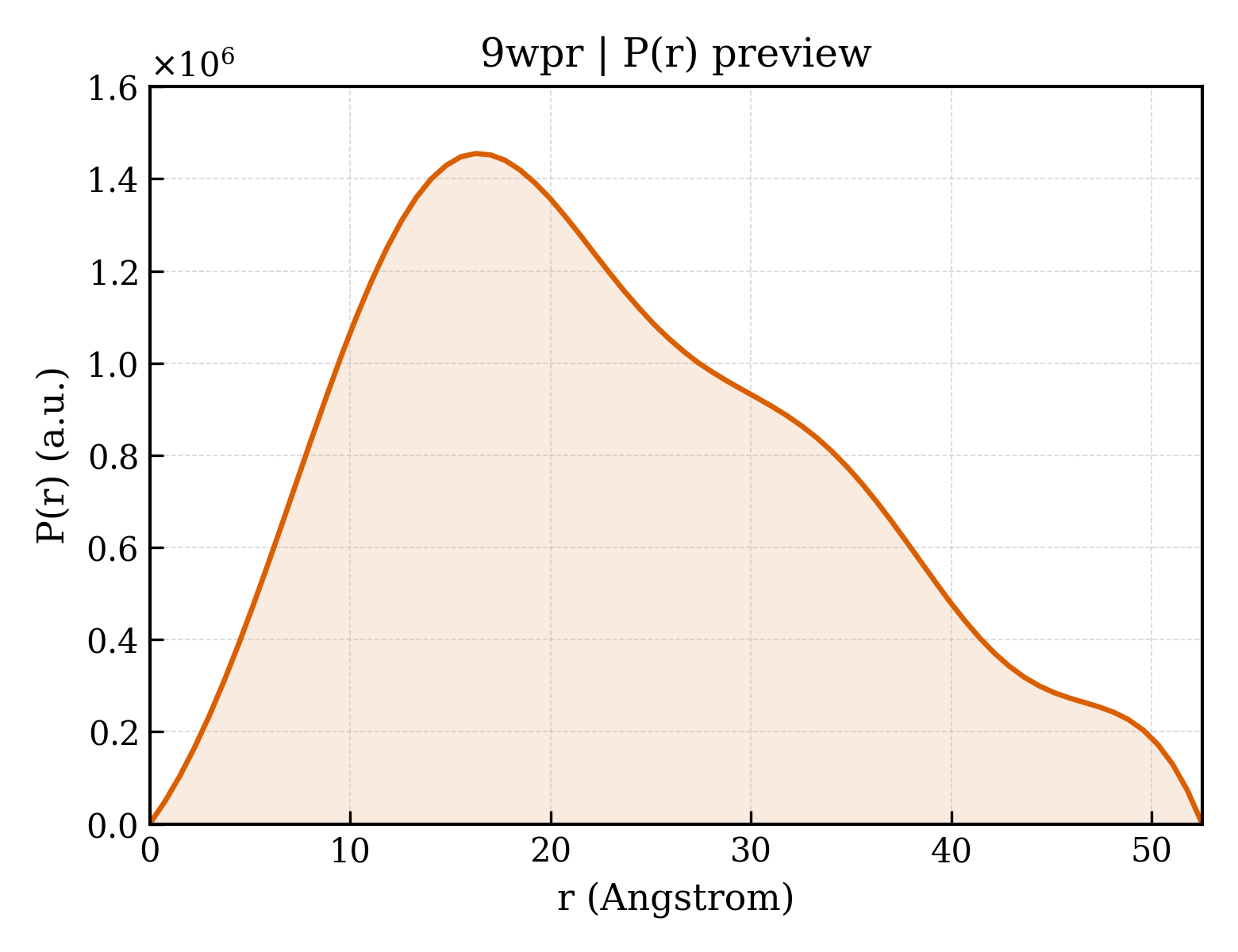

P(r) Distribution
1. Structure Basics
| entry_id | 9wpr |
| deposition_date | 2025-09-09 |
| title | Solution structure of N-terminal domain of mouse HBS1L protein |
| keywords | ;HBS1L Ribosome ribosome quality control trigger complex, Structural Genomics, PSI-2, Protein Structure Initiative, RIKEN Structural Genomics/Proteomics Initiative, RSGI, TRANSLATION ;; TRANSLATION |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.61 Å |
| rg_electron | 18.73 Å |
| i0 | 533534000.00 |
| molecular_weight | 179150.0 kDa |
| excluded_volume | 218800 ų |
| envelope_volume | 101080 ų |
| shell_volume | 30521 ų |
| envelope_diameter | 109.9 Å |
| shell_rg | 34.11 Å |
| envelope_rg | 29.79 Å |
| shape_rg | 18.77 Å |
| total_rg | 19.29 Å |
| total_atoms | 24540 |
| n_residues | 1660 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.5 Å |
| rg_real | 17.96 Å |
| rg_real_error | 0.13 Å |
| i0_real | 5.0610e+08 |
| i0_real_error | 5.0250e+06 |
| rg_reciprocal | 20.11 Å |
| i0_reciprocal | 533500000.0000 |
| total_estimate | 0.6707 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 16.3 Å |
| skewness | 0.419 |
| kurtosis | -0.551 |
| angular_range | — – 0.4050 Å−1 |
| current_alpha | 2.8080 |
| highest_alpha | 446100.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.010; Oscil: 0.962; Stabil: 0.991; Sysdev: 0.000; Positv: 1.000; Valcen: 0.861; Smooth: 0.000 |
