SAXSdb — 9wqo

▼

1. Structure Basics

entry_id	9wqo
deposition_date	2025-09-11
title	GRM1-Acc State Conformation 1
keywords	Receptor complex, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	53.54 Å
rg_electron	55.39 Å
i0	417212000.00
molecular_weight	174620.0 kDa
excluded_volume	220570 Å³
envelope_volume	318950 Å³
shell_volume	52289 Å³
envelope_diameter	180.8 Å
shell_rg	50.23 Å
envelope_rg	54.98 Å
shape_rg	55.39 Å
total_rg	55.23 Å
total_atoms	12256
n_residues	1540
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

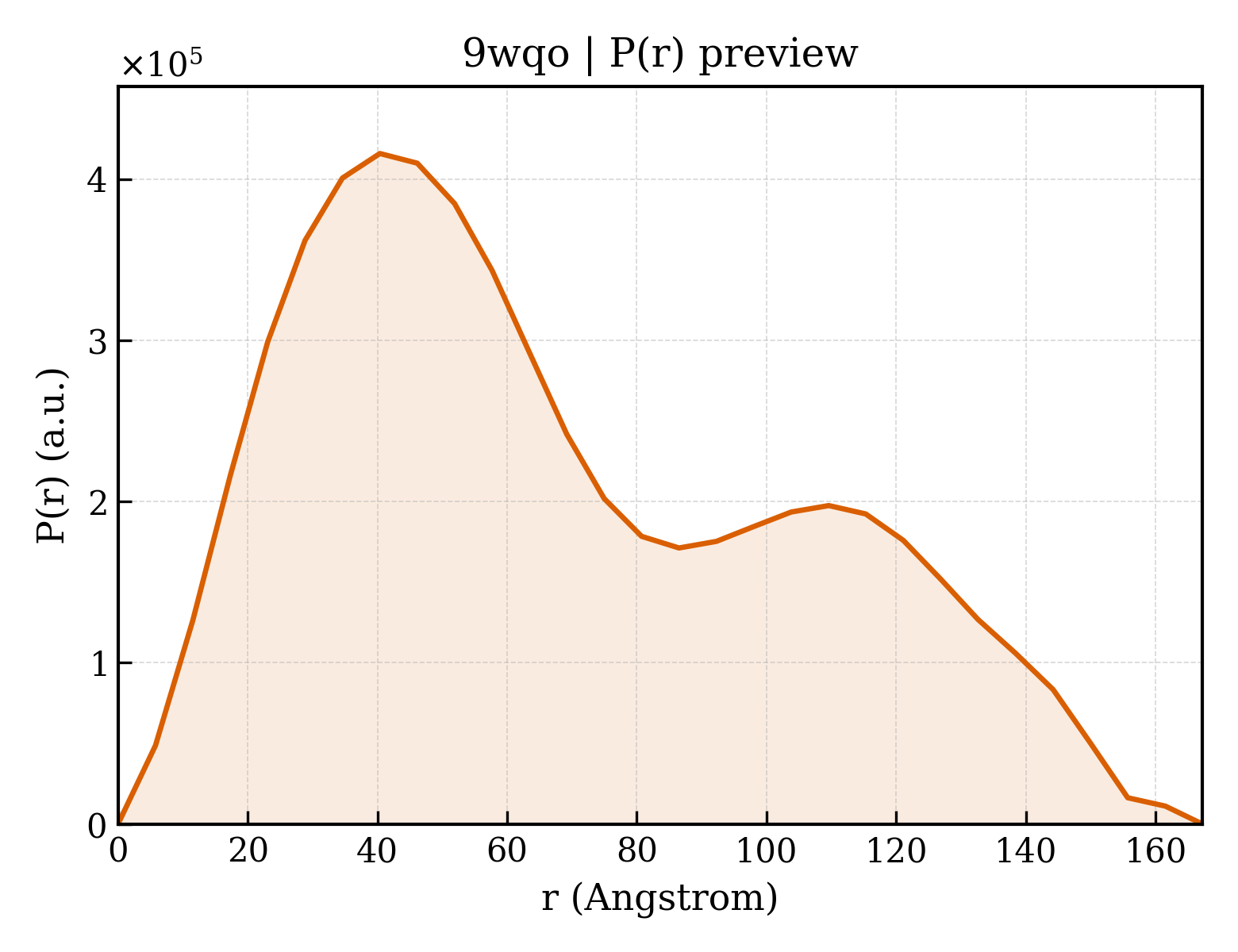

3. P(r) Analysis (GNOM)

dmax	167.2 Å
rg_real	54.16 Å
rg_real_error	2.12 Å
i0_real	4.1720e+08
i0_real_error	9.8550e+06
rg_reciprocal	52.98 Å
i0_reciprocal	416500000.0000
total_estimate	0.7221
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	40.4 Å
skewness	0.502
kurtosis	-0.798
angular_range	— – 0.1450 Å⁻¹
current_alpha	0.0000
highest_alpha	19340000.0000
n_real_points	30
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.580; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.653; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Metabotropic glutamate receptor 1
formula_weight	97322.3 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	X,Y
atom_count	12256

DYKDDDDKTGASSQRSVARMDGDVIIGALFSVHHQPPAEKVPERKCGEIREQYGIQRVEAMFHTLDKINADPVLLPNITLGSEIRDSCWHSSVALEQSIEFIRDSLISIRDEKDGINRCLPDGQSLPPGRTKKPIAGVIGPGSSSVAIQVQNLLQLFDIPQIAYSATSIDLSDKTLYKYFLRVVPSDTLQARAMLDIVKRYNWTYVSAVHTEGNYGESGMDAFKELAAQEGLCIAHSDKIYSNAGEKSFDRLLRKLRERLPKARVVVCFCEGMTVRGLLSAMRRLGVVGEFSLIGSDGWADRDEVIEGYEVEANGGITIKLQSPEVRSFDDYFLKLRLDTNTRNPWFPEFWQHRFQCRLPGHLLENPNFKRICTGNESLEENYVQDSKMGFVINAIYAMAHGLQNMHHALCPGHVGLCDAMKPIDGSKLLDFLIKSSFIGVSGEEVWFDEKGDAPGRYDIMNLQYTEANRYDYVHVGTWHEGVLNIDDYKIQMNKSGVVRSVCSEPCLKGQIKVIRKGEVSCCWICTACKENEYVQDEFTCKACDLGWWPNADLTGCEPIPVRYLEWSNIESIIAIAFSCLGILVTLFVTLIFVLYRDTPVVKSSSRELCYIILAGIFLGYVCPFTLIAKPTTTSCYLQRLLVGLSSAMCYSALVTKTNRIARILAGSKKKICTRKPRFMSAWAQVIIASILISVQLTLVVTLIIMEPPMPILSYPSIKEVYLICNTSNLGVVAPLGYNGLLIMSCTYYAFKTRNVPANFNEAKYIAFTMYTTCIIWLAFVPIYFGSNYKIITTCFAVSLSVTVALGCMFTPKMYIIIAKPERNVRSAFTTSDVVRMHVGDGKLPCRSNTFLNIFRRKKAGAGNANSNG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 non-polymer

description	GAMMA-L-GLUTAMIC ACID
formula_weight	147.1 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	8

Entity 4 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	2

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.900 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.90 Å
resolution_method	—
num_particles	122033

fit	/app/data/saxs_computation/wq/9wqo/9wqo.fit
pddf	/app/data/pr_computation/wq/9wqo/9wqo.pr.out
profile	/app/data/saxs_computation/wq/9wqo/9wqo.dat
