SAXSdb — 9wqp

▼

1. Structure Basics

entry_id	9wqp
deposition_date	2025-09-11
title	GRM1-Acc State Conformation 2
keywords	Receptor, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	54.26 Å
rg_electron	55.41 Å
i0	864013000.00
molecular_weight	164480.0 kDa
excluded_volume	160230 Å³
envelope_volume	315550 Å³
shell_volume	51575 Å³
envelope_diameter	177.6 Å
shell_rg	50.20 Å
envelope_rg	54.86 Å
shape_rg	55.47 Å
total_rg	55.17 Å
total_atoms	12432
n_residues	1555
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	168.1 Å
rg_real	54.90 Å
rg_real_error	1.87 Å
i0_real	8.6400e+08
i0_real_error	1.4860e+07
rg_reciprocal	53.67 Å
i0_reciprocal	862400000.0000
total_estimate	0.6989
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	40.6 Å
skewness	0.470
kurtosis	-0.887
angular_range	— – 0.1450 Å⁻¹
current_alpha	0.0000
highest_alpha	24660000.0000
n_real_points	30
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.506; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.570; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Metabotropic glutamate receptor 1
formula_weight	97322.3 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	X,Y
atom_count	12432

DYKDDDDKTGASSQRSVARMDGDVIIGALFSVHHQPPAEKVPERKCGEIREQYGIQRVEAMFHTLDKINADPVLLPNITLGSEIRDSCWHSSVALEQSIEFIRDSLISIRDEKDGINRCLPDGQSLPPGRTKKPIAGVIGPGSSSVAIQVQNLLQLFDIPQIAYSATSIDLSDKTLYKYFLRVVPSDTLQARAMLDIVKRYNWTYVSAVHTEGNYGESGMDAFKELAAQEGLCIAHSDKIYSNAGEKSFDRLLRKLRERLPKARVVVCFCEGMTVRGLLSAMRRLGVVGEFSLIGSDGWADRDEVIEGYEVEANGGITIKLQSPEVRSFDDYFLKLRLDTNTRNPWFPEFWQHRFQCRLPGHLLENPNFKRICTGNESLEENYVQDSKMGFVINAIYAMAHGLQNMHHALCPGHVGLCDAMKPIDGSKLLDFLIKSSFIGVSGEEVWFDEKGDAPGRYDIMNLQYTEANRYDYVHVGTWHEGVLNIDDYKIQMNKSGVVRSVCSEPCLKGQIKVIRKGEVSCCWICTACKENEYVQDEFTCKACDLGWWPNADLTGCEPIPVRYLEWSNIESIIAIAFSCLGILVTLFVTLIFVLYRDTPVVKSSSRELCYIILAGIFLGYVCPFTLIAKPTTTSCYLQRLLVGLSSAMCYSALVTKTNRIARILAGSKKKICTRKPRFMSAWAQVIIASILISVQLTLVVTLIIMEPPMPILSYPSIKEVYLICNTSNLGVVAPLGYNGLLIMSCTYYAFKTRNVPANFNEAKYIAFTMYTTCIIWLAFVPIYFGSNYKIITTCFAVSLSVTVALGCMFTPKMYIIIAKPERNVRSAFTTSDVVRMHVGDGKLPCRSNTFLNIFRRKKAGAGNANSNG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 non-polymer

description	GAMMA-L-GLUTAMIC ACID
formula_weight	147.1 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	2-acetamido-2-deoxy-beta-D-glucopyranose
formula_weight	221.2 kDa
src_method	syn
entity_count	8

Entity 4 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	CHOLESTEROL
formula_weight	386.7 kDa
src_method	syn
entity_count	2

Entity 6 non-polymer

description	N-[4-(trifluoromethyl)-1,3-oxazol-2-yl]-9H-xanthene-9-carboxamide
formula_weight	360.3 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.200 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.20 Å
resolution_method	—
num_particles	59726

fit	/app/data/saxs_computation/wq/9wqp/9wqp.fit
pddf	/app/data/pr_computation/wq/9wqp/9wqp.pr.out
profile	/app/data/saxs_computation/wq/9wqp/9wqp.dat

GRM1-Acc State Conformation 2

SAXS Profile

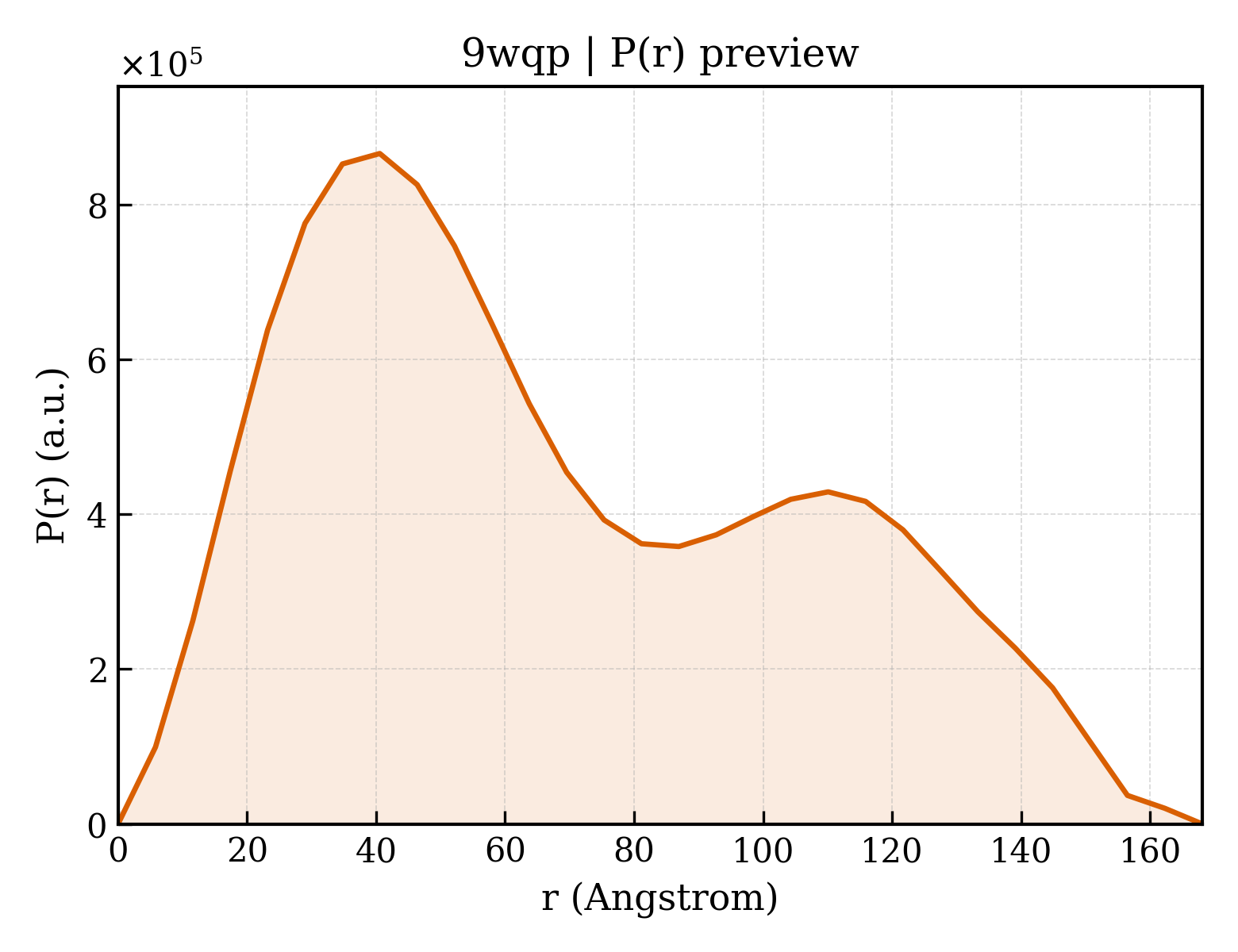

P(r) Distribution
