9wvh
Crystal structure of TONSL UBL domain

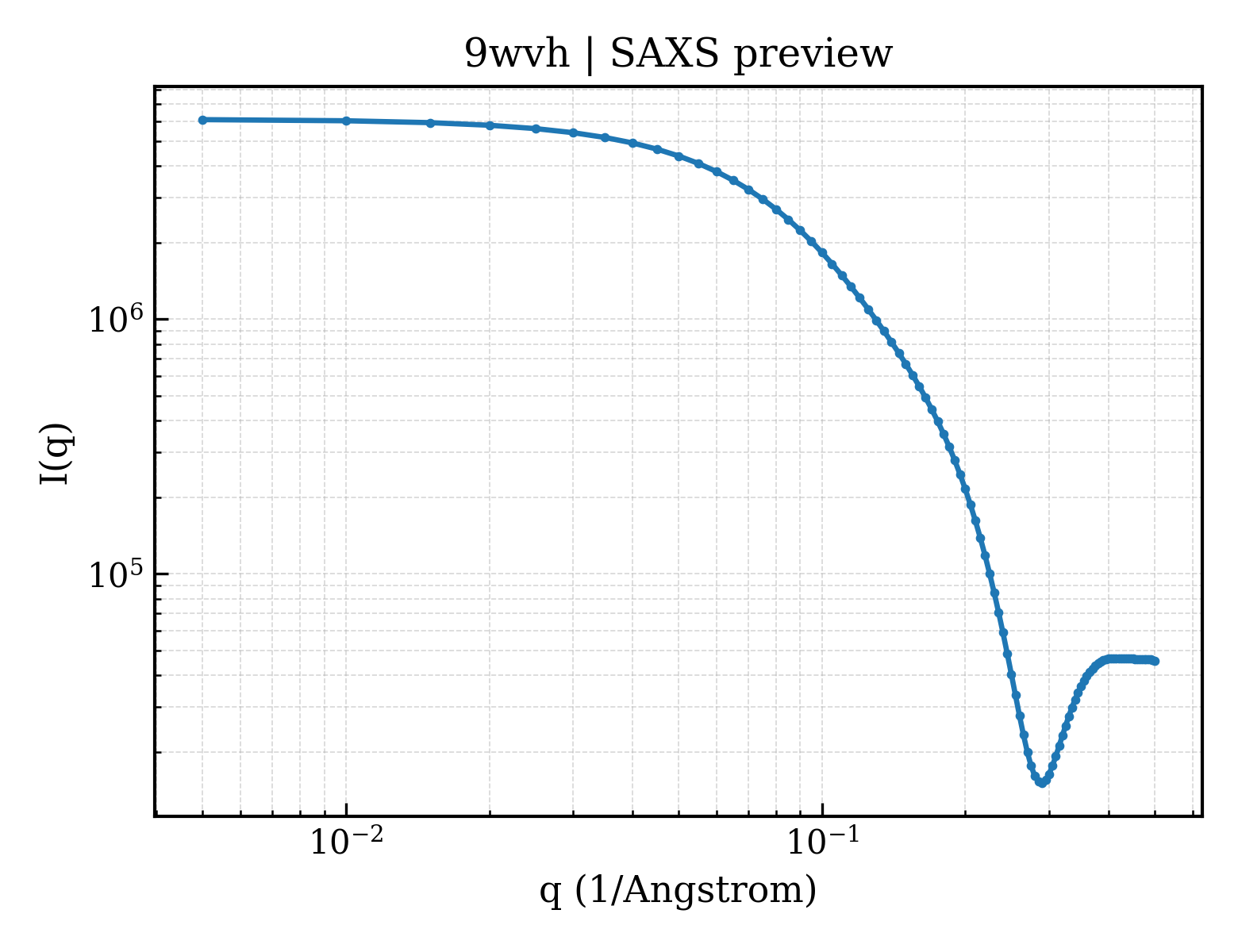

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9wvh |
| deposition_date | 2025-09-20 |
| last_revision | 2025-10-08 |
| title | Crystal structure of TONSL UBL domain |
| keywords | Oligomerization, DNA repair, TONSL, Sponastrime dysplasia, CHAPERONE; CHAPERONE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.95 Å |
| rg_electron | 19.29 Å |
| i0 | 6100580.00 |
| molecular_weight | 18142.0 kDa |
| excluded_volume | 22768 ų |
| envelope_volume | 27445 ų |
| shell_volume | 13118 ų |
| envelope_diameter | 71.8 Å |
| shell_rg | 23.56 Å |
| envelope_rg | 19.62 Å |
| shape_rg | 19.31 Å |
| total_rg | 19.95 Å |
| total_atoms | 1283 |
| n_residues | 159 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 70.3 Å |
| rg_real | 20.18 Å |
| rg_real_error | 0.51 Å |
| i0_real | 6.1010e+06 |
| i0_real_error | 7.7780e+04 |
| rg_reciprocal | 20.14 Å |
| i0_reciprocal | 6100000.0000 |
| total_estimate | 0.7034 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 17.8 Å |
| skewness | 0.560 |
| kurtosis | -0.250 |
| angular_range | — – 0.4000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 4638000.0000 |
| n_real_points | 72 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.522; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.575; Smooth: 0.000 |
