9wvi
Crystal structure of TONSL UBL mutant - R934W
SAXS Profile

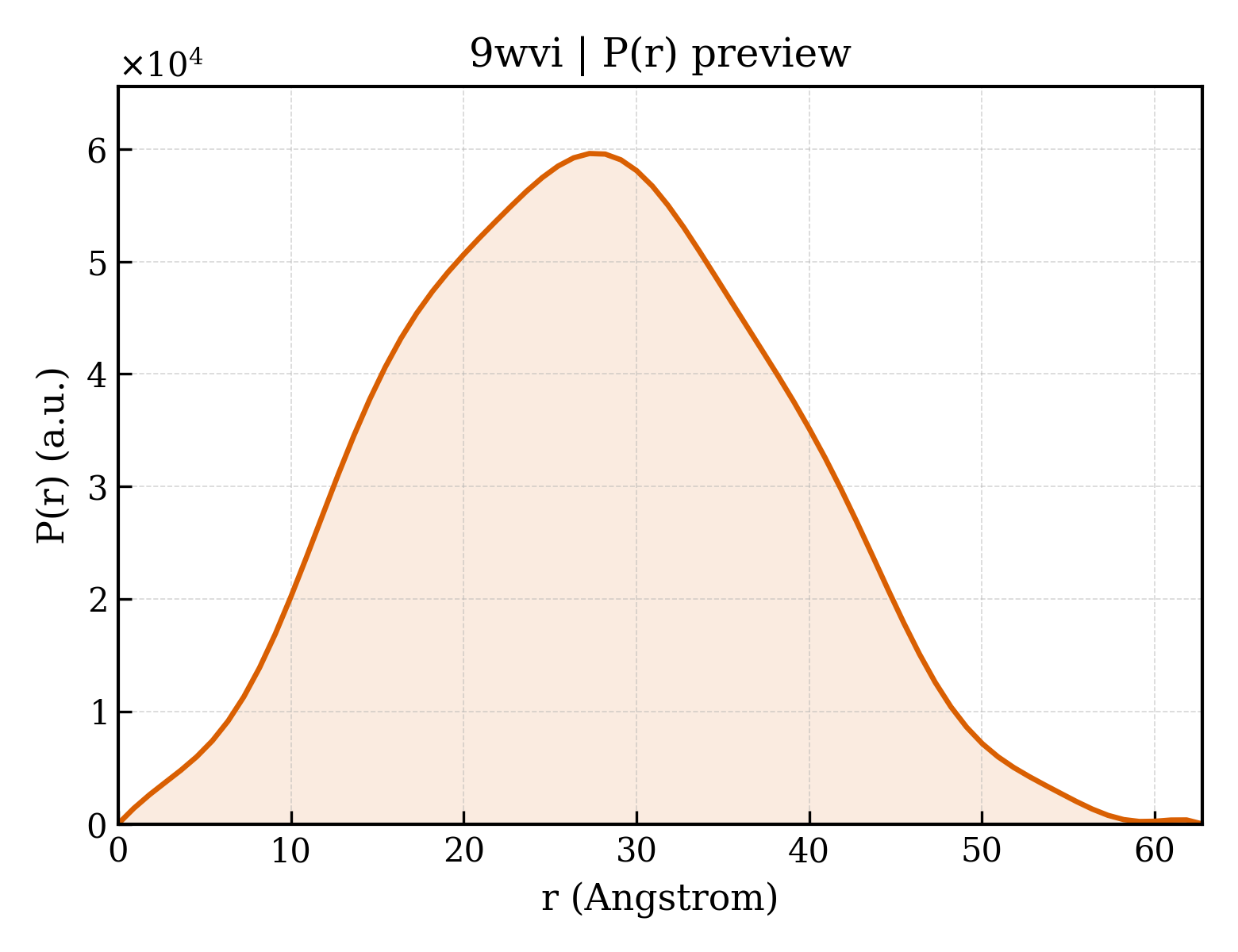

P(r) Distribution
1. Structure Basics
| entry_id | 9wvi |
| deposition_date | 2025-09-20 |
| last_revision | 2025-10-08 |
| title | Crystal structure of TONSL UBL mutant - R934W |
| keywords | TONSL, Sponastrime dysplasia, Mutation, Oligomerisation, DNA repair, CHAPERONE; CHAPERONE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.98 Å |
| rg_electron | 19.82 Å |
| i0 | 21689800.00 |
| molecular_weight | 35989.0 kDa |
| excluded_volume | 45282 ų |
| envelope_volume | 53924 ų |
| shell_volume | 22436 ų |
| envelope_diameter | 62.2 Å |
| shell_rg | 26.41 Å |
| envelope_rg | 19.79 Å |
| shape_rg | 19.82 Å |
| total_rg | 20.74 Å |
| total_atoms | 2549 |
| n_residues | 316 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 62.8 Å |
| rg_real | 20.82 Å |
| rg_real_error | 0.31 Å |
| i0_real | 2.1690e+07 |
| i0_real_error | 2.8040e+05 |
| rg_reciprocal | 20.85 Å |
| i0_reciprocal | 21690000.0000 |
| total_estimate | 0.9054 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 27.3 Å |
| skewness | 0.103 |
| kurtosis | -0.484 |
| angular_range | — – 0.3800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 8283000.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.933; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.980; Smooth: 0.988 |
