9x1l

The cryo-EM structure of HerA-NurA complex with AMPPNP from Thermococcus kodakarensis

Method: ELECTRON MICROSCOPY D_max: 178.5 Å Quality: GOOD

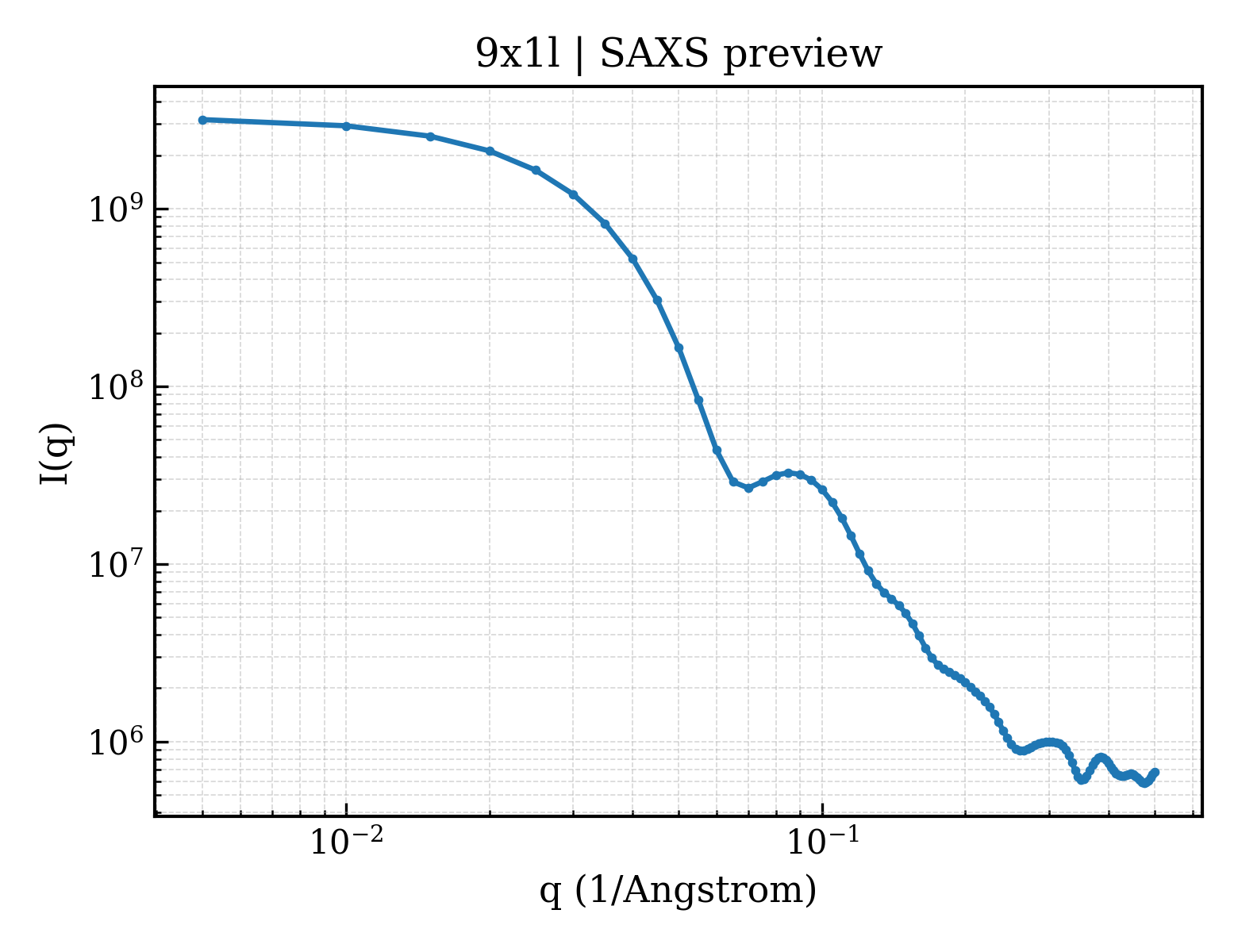

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9x1l
deposition_date	2025-10-02
title	The cryo-EM structure of HerA-NurA complex with AMPPNP from Thermococcus kodakarensis
keywords	HerA, Helicase, NurA, Nuclease, TRANSLOCASE; TRANSLOCASE
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	56.61 Å
rg_electron	56.02 Å
i0	3262470000.00
molecular_weight	482020.0 kDa
excluded_volume	605020 Å³
envelope_volume	995610 Å³
shell_volume	143360 Å³
envelope_diameter	179.5 Å
shell_rg	63.68 Å
envelope_rg	53.84 Å
shape_rg	56.05 Å
total_rg	56.10 Å
total_atoms	33946
n_residues	4278
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	178.5 Å
rg_real	56.32 Å
rg_real_error	1.10 Å
i0_real	3.2620e+09
i0_real_error	5.5340e+07
rg_reciprocal	56.84 Å
i0_reciprocal	3265000000.0000
total_estimate	0.8601
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	76.5 Å
skewness	0.160
kurtosis	-0.391
angular_range	— – 0.1400 Å⁻¹
current_alpha	0.0000
highest_alpha	488400000.0000
n_real_points	29
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.882; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.955; Smooth: 0.576

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	DNA helicase
formula_weight	66118.1 kDa
ec_number	3.6.4.12
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F
atom_count	33946

MRIAEDINKPVGIVTGEATVSSFQFYAHPDTDLKFGDFVVARLCKEAKDQNCRWGENEEGVEWVIGTIRGLKNINWLLSEGKSTYTSLELDIREYGESIGENEALIVTVHVLGKVQLNGEKAEVVPTRVPVPNGNRVYLASSDLLRAIYYGGNGYIELGRLIIREDVPVYLNVNELVSRHFAILAVTGAGKSNTVSVMLWKLVEELGGTVIVLDPHGDYTKLSLPGTGREYVNLIEAKIRPEAMDGEELADLMEIQSNASIQRSYLLRAWDTVLHENQGIGGREAVKLVHDLLQRWASEGGGTYWDPHAGQYRDLGEIKSAEKETIMRLTMKVSRFLRNYGHLLSSEDIVALIEPGKVNVIDLGPLDEGQMKLVVAKFLEKVFETRMDYEKARKRLDYLRTAYSSNISAVSDEINELEEFLRGVEKNYPALAEPVMVIVEEAHIFAPHGEKGGAVRILGRIAREGRKFGVGLGLVSQRPSRLSEDVLSQTNTKIIMRIVNPNDQQYVVRASEQVSGELMSDIAGLGKGEAVIVGQAISLPALVKIYNFKALGGNYGGEDIGAVERWLERKRRELEEKEKEEMYEEEGIEVDF

Source

organism	Thermococcus kodakarensis
ncbi_taxonomy_id	311400
host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

description	;5'-3' nuclease, encoded next to Rad50 and Mre11 homologs ;
formula_weight	51035.7 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	G,H

MYRLIDRRSVDRIKALLERGYREAESKLAEIEWKPLPKERKQTRVYAVDGSQGKQRLSGTIFYAVSSYAFGNGPAYRLVYTNAMLYNQGISDQIIRLQMETLENKLGYLSAKLGDVDYVMMDGTLTGSLTRPPVYPESVKGLTTIENALGKGKLKELVKKFVSLLDEHYKELEDGLREKGKINGNVILADEKLEEFEEFYKAMKGYKVRDFAGTTPRGIKISRATIDEYLKGRKSAEEIFQELLNEYGEERELSLDDARNAVHVVLGYLEYLYSLEKLLRLNLVYVAKSFYNRKLTQKLGIDIVDVPYLDAYLRKRFGEEIPGYFIITQGGKAISHKMPKVLRETFPLVEHYIEHGVPMAYVRTMKGGVIYLLQSNREVDDDLLSEILWHESNGYFRPLQRAHEGVKIEKKAFEAELKALLNIIKAESPELRVFLKYGRSPLE

Source

organism	Thermococcus kodakarensis
ncbi_taxonomy_id	311400
host_organism	Escherichia coli BL21(DE3)

Entity 3 non-polymer

description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
formula_weight	506.2 kDa
src_method	syn
entity_count	6

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.800 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.80 Å
resolution_method	—
num_particles	204172

fit	/app/data/saxs_computation/x1/9x1l/9x1l.fit
pddf	/app/data/pr_computation/x1/9x1l/9x1l.pr.out
profile	/app/data/saxs_computation/x1/9x1l/9x1l.dat
