9x1n

The cryo-EM structure of HerA-NurA complex with ATPgammaS and dsDNA from Thermococcus kodakarensis (State 1)

Method: ELECTRON MICROSCOPY D_max: 175.0 Å Quality: GOOD

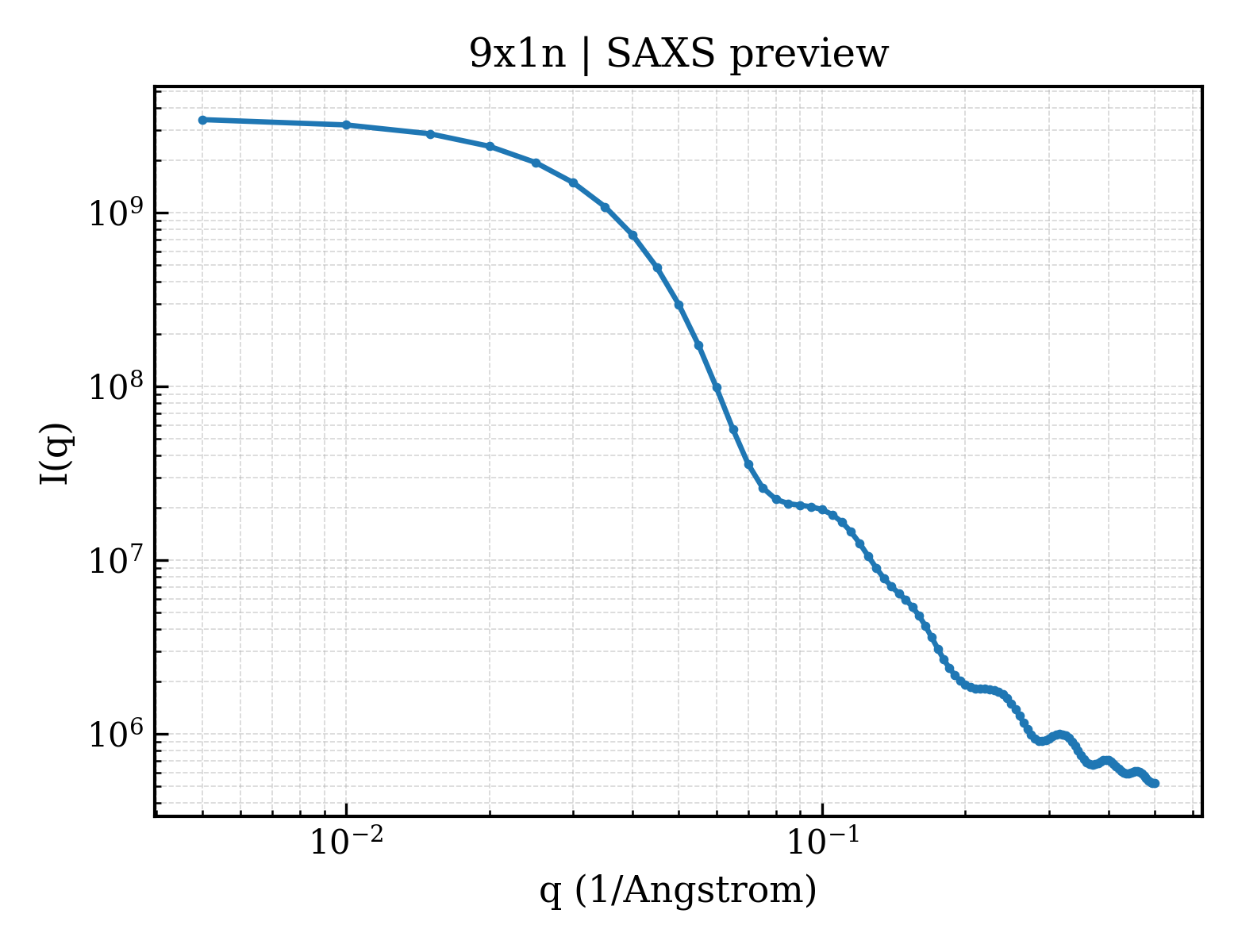

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9x1n
deposition_date	2025-10-02
title	The cryo-EM structure of HerA-NurA complex with ATPgammaS and dsDNA from Thermococcus kodakarensis (State 1)
keywords	HerA, Helicase, NurA, Nuclease, DNA BINDING PROTEIN; DNA BINDING PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	52.98 Å
rg_electron	52.57 Å
i0	3518780000.00
molecular_weight	492230.0 kDa
excluded_volume	614240 Å³
envelope_volume	889160 Å³
shell_volume	134930 Å³
envelope_diameter	176.8 Å
shell_rg	60.93 Å
envelope_rg	51.18 Å
shape_rg	52.60 Å
total_rg	52.67 Å
total_atoms	34582
n_residues	4298
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	175.0 Å
rg_real	52.82 Å
rg_real_error	1.17 Å
i0_real	3.5190e+09
i0_real_error	6.1480e+07
rg_reciprocal	53.11 Å
i0_reciprocal	3520000000.0000
total_estimate	0.8677
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	64.2 Å
skewness	0.259
kurtosis	-0.331
angular_range	— – 0.1500 Å⁻¹
current_alpha	0.0000
highest_alpha	580400000.0000
n_real_points	31
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.828; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.959; Smooth: 0.832

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	DNA helicase
formula_weight	66118.1 kDa
ec_number	3.6.4.12
src_method	man
entity_count	6

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F
atom_count	34582

MRIAEDINKPVGIVTGEATVSSFQFYAHPDTDLKFGDFVVARLCKEAKDQNCRWGENEEGVEWVIGTIRGLKNINWLLSEGKSTYTSLELDIREYGESIGENEALIVTVHVLGKVQLNGEKAEVVPTRVPVPNGNRVYLASSDLLRAIYYGGNGYIELGRLIIREDVPVYLNVNELVSRHFAILAVTGAGKSNTVSVMLWKLVEELGGTVIVLDPHGDYTKLSLPGTGREYVNLIEAKIRPEAMDGEELADLMEIQSNASIQRSYLLRAWDTVLHENQGIGGREAVKLVHDLLQRWASEGGGTYWDPHAGQYRDLGEIKSAEKETIMRLTMKVSRFLRNYGHLLSSEDIVALIEPGKVNVIDLGPLDEGQMKLVVAKFLEKVFETRMDYEKARKRLDYLRTAYSSNISAVSDEINELEEFLRGVEKNYPALAEPVMVIVEEAHIFAPHGEKGGAVRILGRIAREGRKFGVGLGLVSQRPSRLSEDVLSQTNTKIIMRIVNPNDQQYVVRASEQVSGELMSDIAGLGKGEAVIVGQAISLPALVKIYNFKALGGNYGGEDIGAVERWLERKRRELEEKEKEEMYEEEGIEVDF

Source

organism	Thermococcus kodakarensis
ncbi_taxonomy_id	311400
host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

description	;5'-3' nuclease, encoded next to Rad50 and Mre11 homologs ;
formula_weight	50991.7 kDa
mutation	D49A
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	G,H

MYRLIDRRSVDRIKALLERGYREAESKLAEIEWKPLPKERKQTRVYAVAGSQGKQRLSGTIFYAVSSYAFGNGPAYRLVYTNAMLYNQGISDQIIRLQMETLENKLGYLSAKLGDVDYVMMDGTLTGSLTRPPVYPESVKGLTTIENALGKGKLKELVKKFVSLLDEHYKELEDGLREKGKINGNVILADEKLEEFEEFYKAMKGYKVRDFAGTTPRGIKISRATIDEYLKGRKSAEEIFQELLNEYGEERELSLDDARNAVHVVLGYLEYLYSLEKLLRLNLVYVAKSFYNRKLTQKLGIDIVDVPYLDAYLRKRFGEEIPGYFIITQGGKAISHKMPKVLRETFPLVEHYIEHGVPMAYVRTMKGGVIYLLQSNREVDDDLLSEILWHESNGYFRPLQRAHEGVKIEKKAFEAELKALLNIIKAESPELRVFLKYGRSPLE

Source

organism	Thermococcus kodakarensis
ncbi_taxonomy_id	311400
host_organism	Escherichia coli BL21

Entity 3 polymer

description	DNA
formula_weight	6219.2 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	I

AAAAAAAAAAAAAAAAAAAA

Entity 4 polymer

description	DNA
formula_weight	6038.9 kDa
src_method	syn
entity_count	1

Polymer

type	polydeoxyribonucleotide
strand_id	J

TTTTTTTTTTTTTTTTTTTT

Entity 5 non-polymer

description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
formula_weight	523.2 kDa
src_method	syn
entity_count	6

Entity 6 non-polymer

description	MANGANESE (II) ION
formula_weight	54.9 kDa
src_method	syn
entity_count	8

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.100 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.10 Å
resolution_method	—
num_particles	37584

fit	/app/data/saxs_computation/x1/9x1n/9x1n.fit
pddf	/app/data/pr_computation/x1/9x1n/9x1n.pr.out
profile	/app/data/saxs_computation/x1/9x1n/9x1n.dat
