9x45
Cryo-EM structure of renal amyloid fibril from an immunoglobulin light chain amyloidosis patient in polymorph A

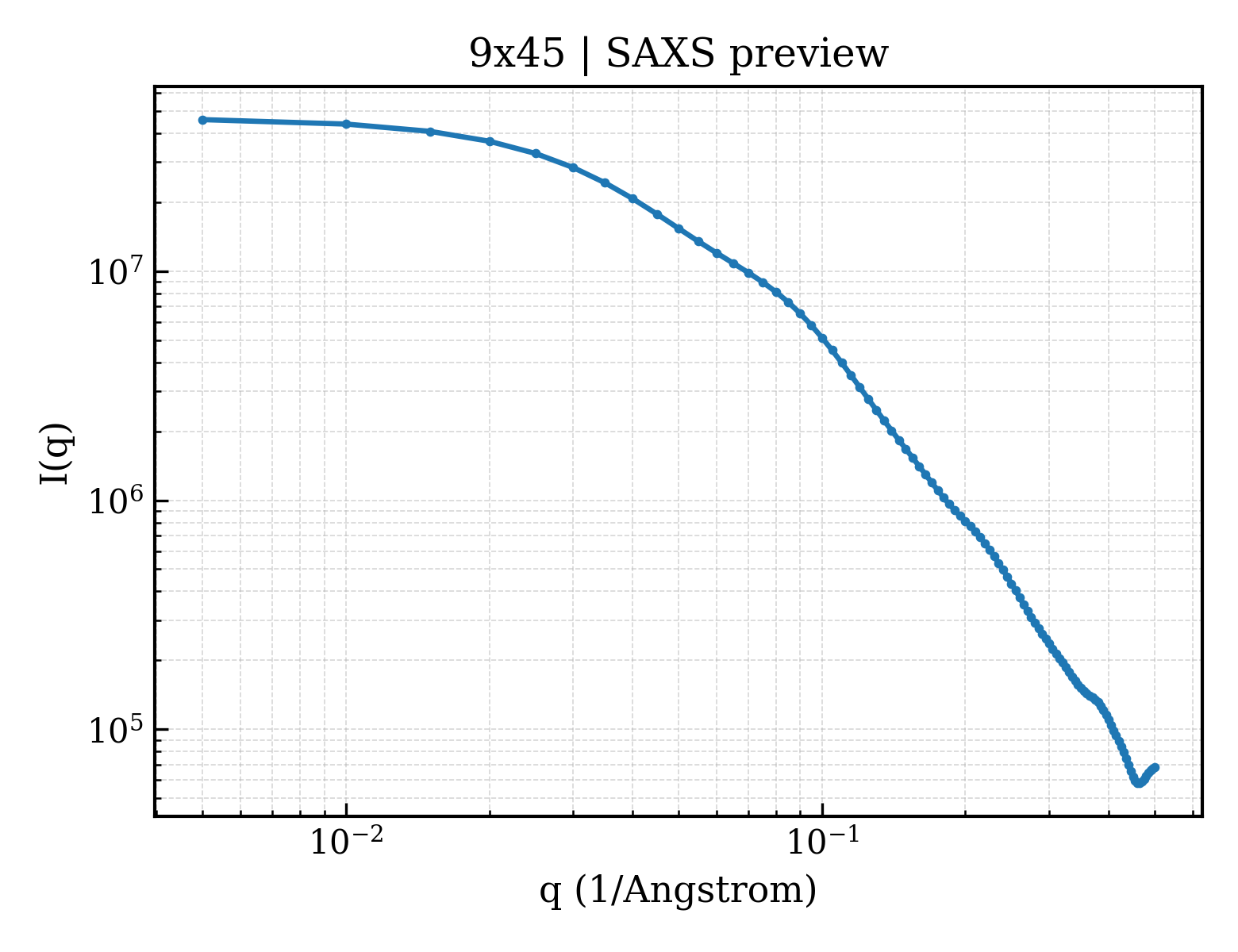

SAXS Profile

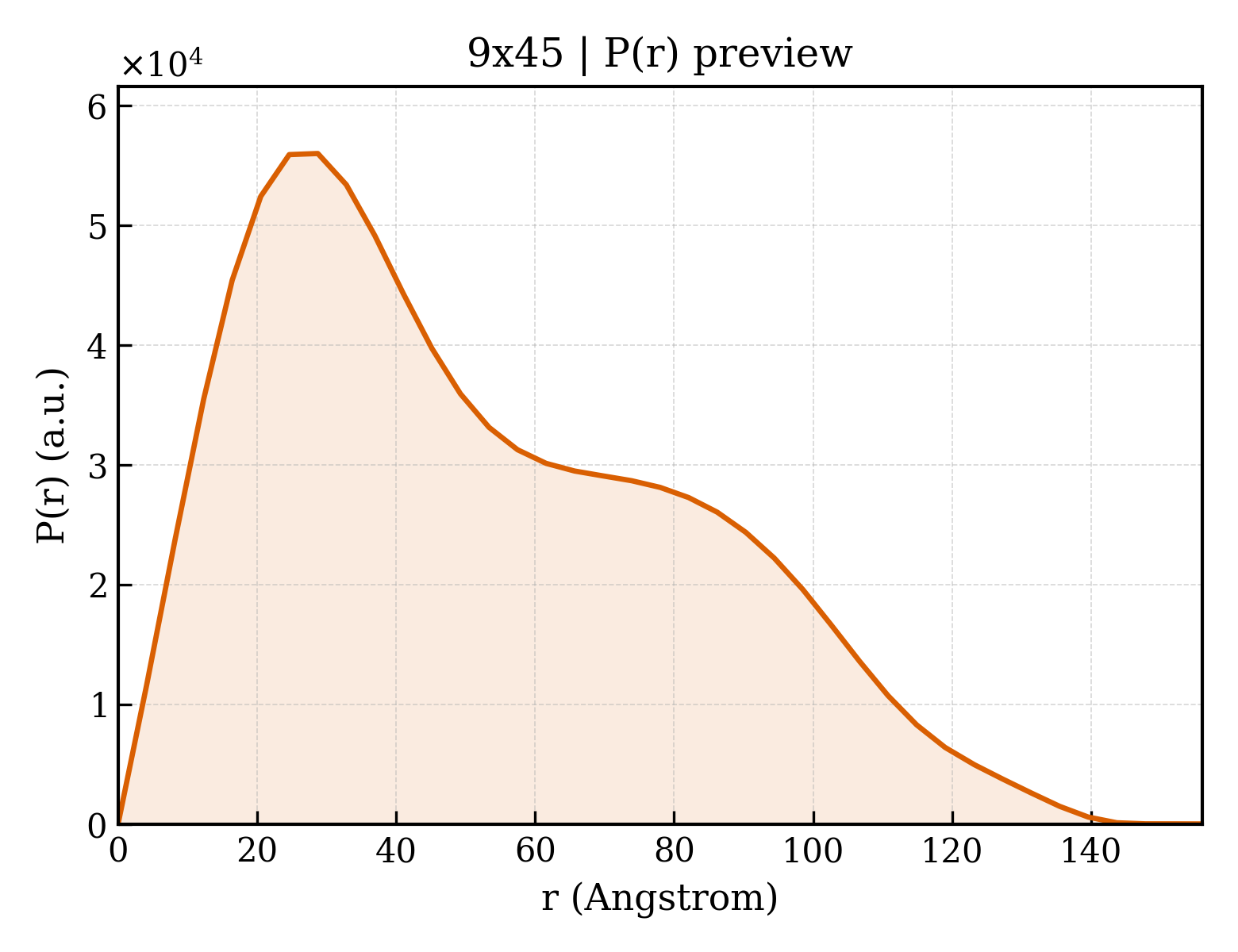

P(r) Distribution
1. Structure Basics
| entry_id | 9x45 |
| deposition_date | 2025-10-10 |
| title | Cryo-EM structure of renal amyloid fibril from an immunoglobulin light chain amyloidosis patient in polymorph A |
| keywords | Amyloid fibril, PROTEIN FIBRIL; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 41.70 Å |
| rg_electron | 41.81 Å |
| i0 | 46512900.00 |
| molecular_weight | 50936.0 kDa |
| excluded_volume | 62108 ų |
| envelope_volume | 86602 ų |
| shell_volume | 20528 ų |
| envelope_diameter | 147.1 Å |
| shell_rg | 37.28 Å |
| envelope_rg | 42.57 Å |
| shape_rg | 41.78 Å |
| total_rg | 41.60 Å |
| total_atoms | 3588 |
| n_residues | 480 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 156.0 Å |
| rg_real | 42.41 Å |
| rg_real_error | 2.63 Å |
| i0_real | 4.6510e+07 |
| i0_real_error | 9.2810e+05 |
| rg_reciprocal | 41.71 Å |
| i0_reciprocal | 46480000.0000 |
| total_estimate | 0.6712 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 28.7 Å |
| skewness | 0.535 |
| kurtosis | -0.640 |
| angular_range | — – 0.1900 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1704000.0000 |
| n_real_points | 39 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.251; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.113; Smooth: 0.856 |
