1. Structure Basics

entry_id	9xb9
deposition_date	2025-10-23
title	Human KCNQ2-CaM in complex with QO-58 and PIP2
keywords	voltage-gated potassium channel, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	42.46 Å
rg_electron	41.73 Å
i0	768582000.00
molecular_weight	234650.0 kDa
excluded_volume	295740 Å³
envelope_volume	400620 Å³
shell_volume	76875 Å³
envelope_diameter	126.5 Å
shell_rg	50.08 Å
envelope_rg	40.61 Å
shape_rg	41.72 Å
total_rg	42.18 Å
total_atoms	32816
n_residues	2028
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	117.8 Å
rg_real	42.16 Å
rg_real_error	0.79 Å
i0_real	7.6860e+08
i0_real_error	1.2500e+07
rg_reciprocal	42.45 Å
i0_reciprocal	768800000.0000
total_estimate	0.8556
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	54.1 Å
skewness	0.010
kurtosis	-0.563
angular_range	— – 0.1850 Å⁻¹
current_alpha	0.0000
highest_alpha	45240000.0000
n_real_points	38
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.988; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.176

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	Potassium voltage-gated channel subfamily KQT member 2
formula_weight	95976.7 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	A,B,C,D
atom_count	32816

MVQKSRNGGVYPGPSGEKKLKVGFVGLDPGAPDSTRDGALLIAGSEAPKRGSILSKPRAGGAGAGKPPKRNAFYRKLQNFLYNVLERPRGWAFIYHAYVFLLVFSCLVLSVFSTIKEYEKSSEGALYILEIVTIVVFGVEYFVRIWAAGCCCRYRGWRGRLKFARKPFCVIDIMVLIASIAVLAAGSQGNVFATSALRSLRFLQILRMIRMDRRGGTWKLLGSVVYAHSKELVTAWYIGFLCLILASFLVYLAEKGENDHFDTYADALWWGLITLTTIGYGDKYPQTWNGRLLAATFTLIGVSFFALPAGILGSGFALKVQEQHRQKHFEKRRNPAAGLIQSAWRFYATNLSRTDLHSTWQYYERTVTVPMYSSQTQTYGASRLIPPLNQLELLRNLKSKSGLAFRKDPPPEPSPSKGSPCRGPLCGCCPGRSSQKVSLKDRVFSSPRGVAAKGKGSPQAQTVRRSPSADQSLEDSPSKVPKSWSFGDRSRARQAFRIKGAASRQNSEEASLPGEDIVDDKSCPCEFVTEDLTPGLKVSIRAVCVMRFLVSKRKFKESLRPYDVMDVIEQYSAGHLDMLSRIKSLQSRVDQIVGRGPAITDKDRTKGPAEAELPEDPSMMGRLGKVEKQVLSMEKKLDFLVNIYMQRMGIPPTETEAYFGAKEPEPAPPYHSPEDSREHVDRHGCIVKIVRSSSSTGQKNFSAPPAAPPVQCPPSTSWQPQSHPRQGHGTSPVGDHGSLVRIPPPPAHERSLSAYGGGNRASMEFLRQEDTPGCRPPEGNLRDSDTSISIPSVDHEELERSFSGFSISQSKENLDALNSCYAAVAPCAKVRPYIAEGESDTDSDLCTPCGPPPRSATGEGPFGDVGWAGPRK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Calmodulin-1
formula_weight	16852.5 kDa
src_method	man
entity_count	4

Polymer

type	polypeptide(L)
strand_id	E,F,G,H

MADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVQMMTAK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 non-polymer

description	;[(2R)-2-octanoyloxy-3-[oxidanyl-[(1R,2R,3S,4R,5R,6S)-2,3,6-tris(oxidanyl)-4,5-diphosphonooxy-cyclohexyl]oxy-phosphoryl]oxy-propyl] octanoate ;
formula_weight	746.6 kDa
src_method	syn
entity_count	4

Entity 4 non-polymer

description	QO-58
formula_weight	443.2 kDa
src_method	syn
entity_count	4

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.10 Å
resolution_method	—
num_particles	73437

fit	/app/data/saxs_computation/xb/9xb9/9xb9.fit
pddf	/app/data/pr_computation/xb/9xb9/9xb9.pr.out
profile	/app/data/saxs_computation/xb/9xb9/9xb9.dat

Human KCNQ2-CaM in complex with QO-58 and PIP2

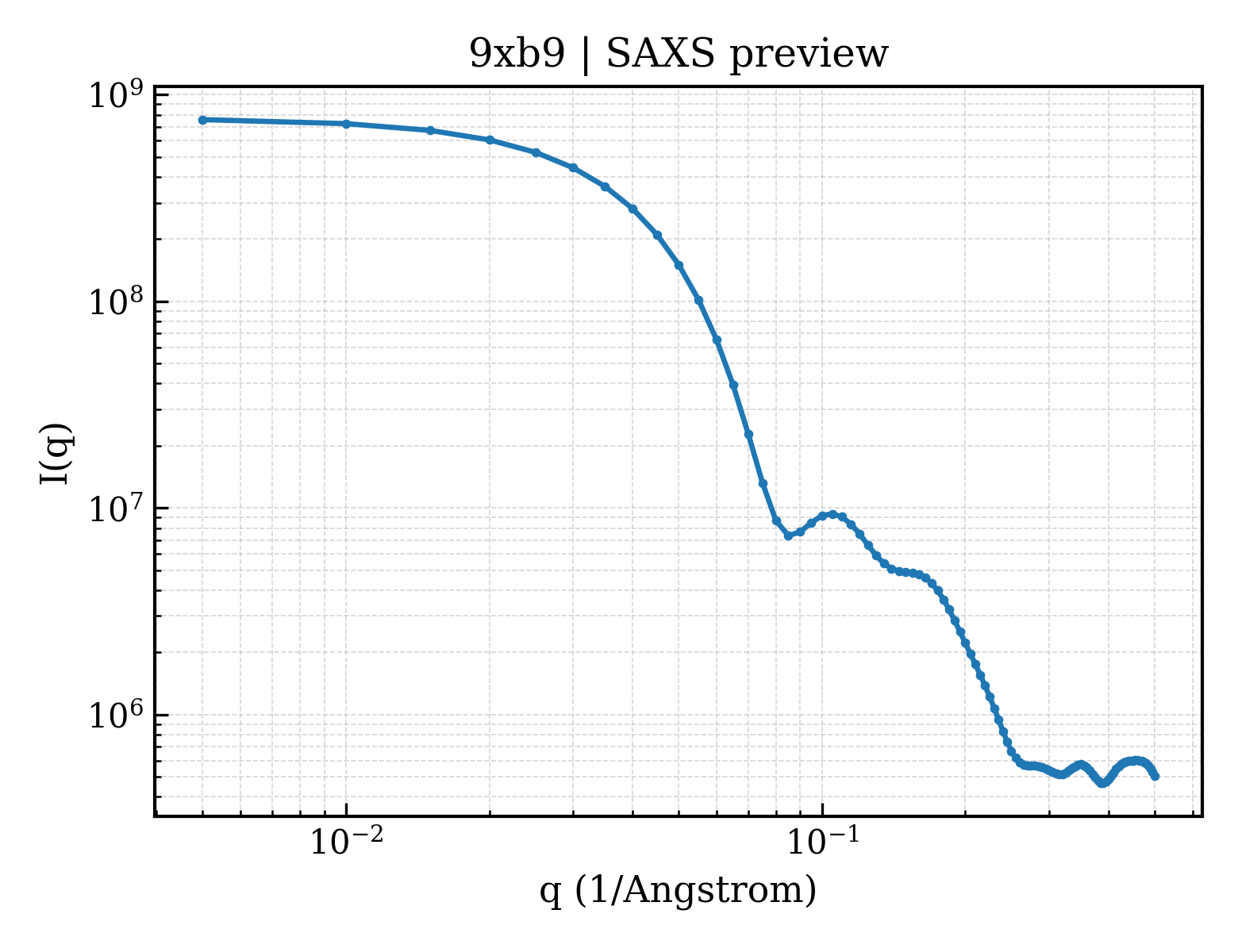

SAXS Profile

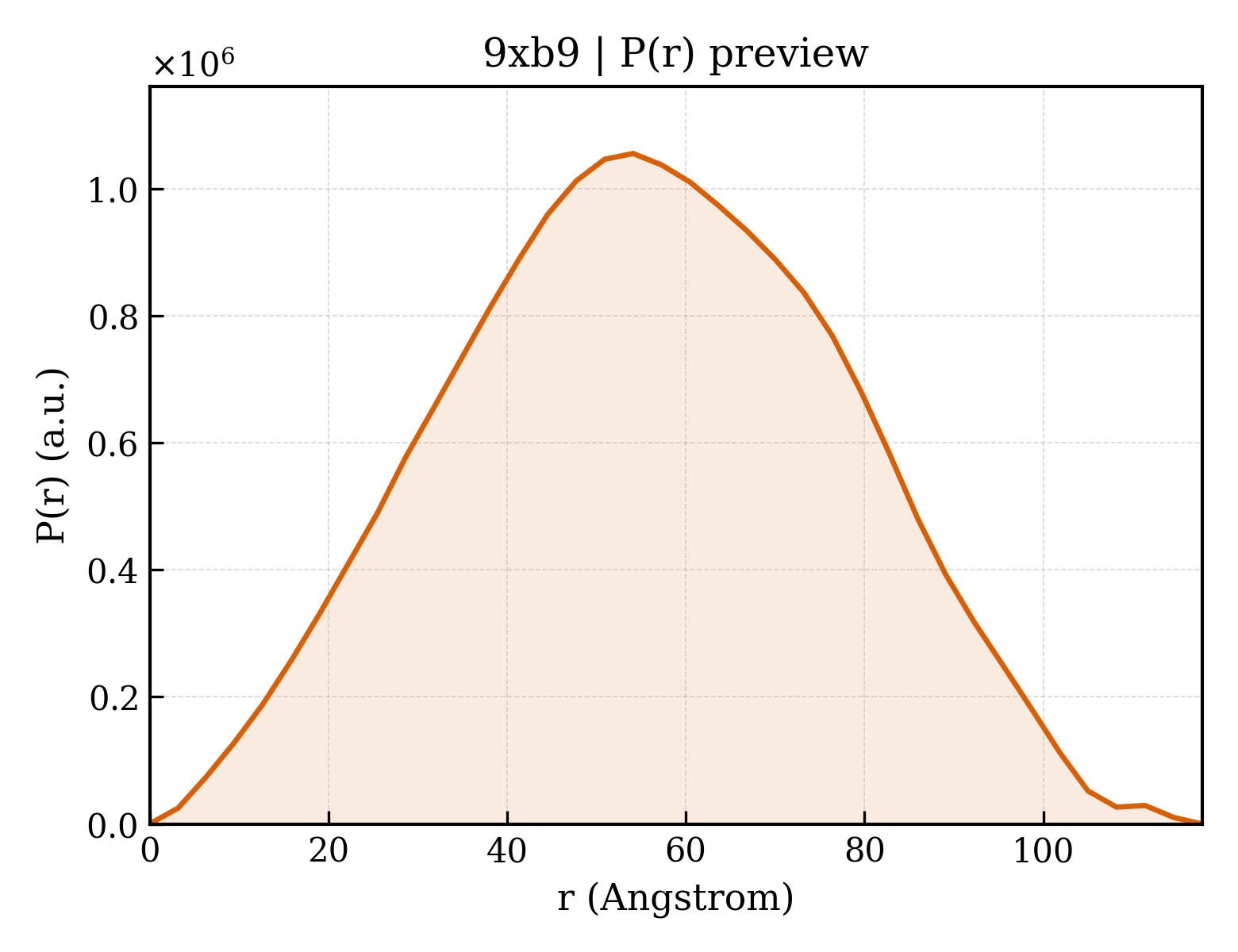

P(r) Distribution
