SAXSdb — 9xzq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

tRNA (guanine(9)-N1)-methyltransferase

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–RNA Monomer Protein × 1 RNA 1 PDB declaration: dimeric（2） Consistent with all polymer counts	Chain B； UniProt 1–293	Not recorded	Transfer RNA (Gly) × 1 AN6 5'-{[(3S)-3-amino-3-carboxypropyl](ethyl)amino}-5'-deoxyadenosine × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.63 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9XZQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4JWJ Crystal structure of scTrm10(84)-SAH complex Deposited 2013-03-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 84–276（193 aa） Fragment：UNP RESIDUES 84-276	Not recorded	SO4 SULFATE ION × 3 SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；287 K；1.5M Lithium sulfate monohydrate, 0.1M BIS-TRIS propane, pH 7.0, vapor diffusion, hanging drop, temperature 287K	Resolution 1.76 Å R-free 0.251
4JWJ Crystal structure of scTrm10(84)-SAH complex Deposited 2013-03-27	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 84–276（193 aa） Fragment：UNP RESIDUES 84-276	Not recorded	SO4 SULFATE ION × 1 SAH S-ADENOSYL-L-HOMOCYSTEINE × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；287 K；1.5M Lithium sulfate monohydrate, 0.1M BIS-TRIS propane, pH 7.0, vapor diffusion, hanging drop, temperature 287K	Resolution 1.76 Å R-free 0.251
9XZR Trm10-tRNA complex (open conformation) Deposited 2025-08-27	Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: dimeric	Chain B 1–293（293 aa）	Not recorded	AN6 5'-{[(3S)-3-amino-3-carboxypropyl](ethyl)amino}-5'-deoxyadenosine × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.37 Å
9XZS Trm10-tRNA complex (Two Trm10 monomers bound to one tRNA) Deposited 2025-08-27	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein–RNA Homooligomer；Protein × 2 PDB declaration: trimeric	Chain B 1–293（293 aa） Chain C 1–293（293 aa）	Not recorded	AN6 5'-{[(3S)-3-amino-3-carboxypropyl](ethyl)amino}-5'-deoxyadenosine × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.89 Å

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TRM10_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–293； UniProt 1–293

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9xzq
Deposition date deposition_date	2025-08-27
Structure title title	Trm10-tRNA complex (closed conformation)
Keywords keywords	SPOUT methyltransferase, Complex, tRNA, methylation, RNA BINDING PROTEIN, RNA BINDING PROTEIN-RNA complex; RNA BINDING PROTEIN/RNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.70 Å
Radius of gyration Rg (electron density) rg_electron	23.48 Å
Forward intensity I(0) i0	63613900.00
Molecular weight molecular_weight	45363.0 kDa
Excluded volume excluded_volume	49493 Å³
Envelope volume envelope_volume	69870 Å³
Hydration-shell volume shell_volume	25682 Å³
Envelope diameter envelope_diameter	86.2 Å
Shell Rg shell_rg	29.76 Å
Envelope Rg envelope_rg	23.11 Å
Shape Rg shape_rg	23.40 Å
Total Rg total_rg	24.20 Å
Total atoms total_atoms	3090
Residues n_residues	259
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	82.2 Å
Rg (real space) rg_real	24.64 Å
Rg uncertainty (real space) rg_real_error	0.67 Å
I(0) (real space) i0_real	6.3610e+07
I(0) uncertainty (real space) i0_real_error	9.1320e+05
Rg (reciprocal space) rg_reciprocal	24.66 Å
I(0) (reciprocal space) i0_reciprocal	63610000.0000
Solution quality estimate total_estimate	0.8112
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	31.3 Å
Skewness Skewness skewness	0.279
Kurtosis Kurtosis kurtosis	-0.354
Angular range angular_range	— – 0.3200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4586000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.858; Stabil: 0.995; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Transfer RNA (Gly)
Molecular weight formula_weight	22809.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	A
Atom count atom_count	3090

GCGCAAGUGGUUUAGUGGUAAAAUCCAACGUUGCCAUCGUUGGGCCCCCGGUUCGAUUCCGGGCUUGCGCA

Entity 2 Entity 2 polymer

Description description	tRNA (guanine(9)-N1)-methyltransferase
Molecular weight formula_weight	34583.6 kDa
EC 编号 ec_number	2.1.1.221
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSNDEINQNEEKVKRTPPLPPVPEGMSKKQWKKMCKRQRWEENKAKYNAERRVKKKRLRHERSAKIQEYIDRGEEVPQELIREPRINVNQTDSGIEIILDCSFDELMNDKEIVSLSNQVTRAYSANRRANHFAEIKVAPFDKRLKQRFETTLKNTNYENWNHFKFLPDDKIMFGDEHISKDKIVYLTADTEEKLEKLEPGMRYIVGGIVDKNRYKELCLKKAQKMGIPTRRLPIDEYINLEGRRVLTTTHVVQLMLKYFDDHNWKNAFESVLPPRKLDAEAKSASSSPAPKDT

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	5'-{[(3S)-3-amino-3-carboxypropyl](ethyl)amino}-5'-deoxyadenosine
Molecular weight formula_weight	395.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.63 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	1398183

fit	/app/data/saxs_computation/xz/9xzq/9xzq.fit
pddf	/app/data/pr_computation/xz/9xzq/9xzq.pr.out
profile	/app/data/saxs_computation/xz/9xzq/9xzq.dat

Trm10-tRNA complex (closed conformation)

1. Protein Identity and Related Structures Protein Identity & Related Structures

tRNA (guanine(9)-N1)-methyltransferase

State in the Current Structure

Other States of the Same Protein in the Database

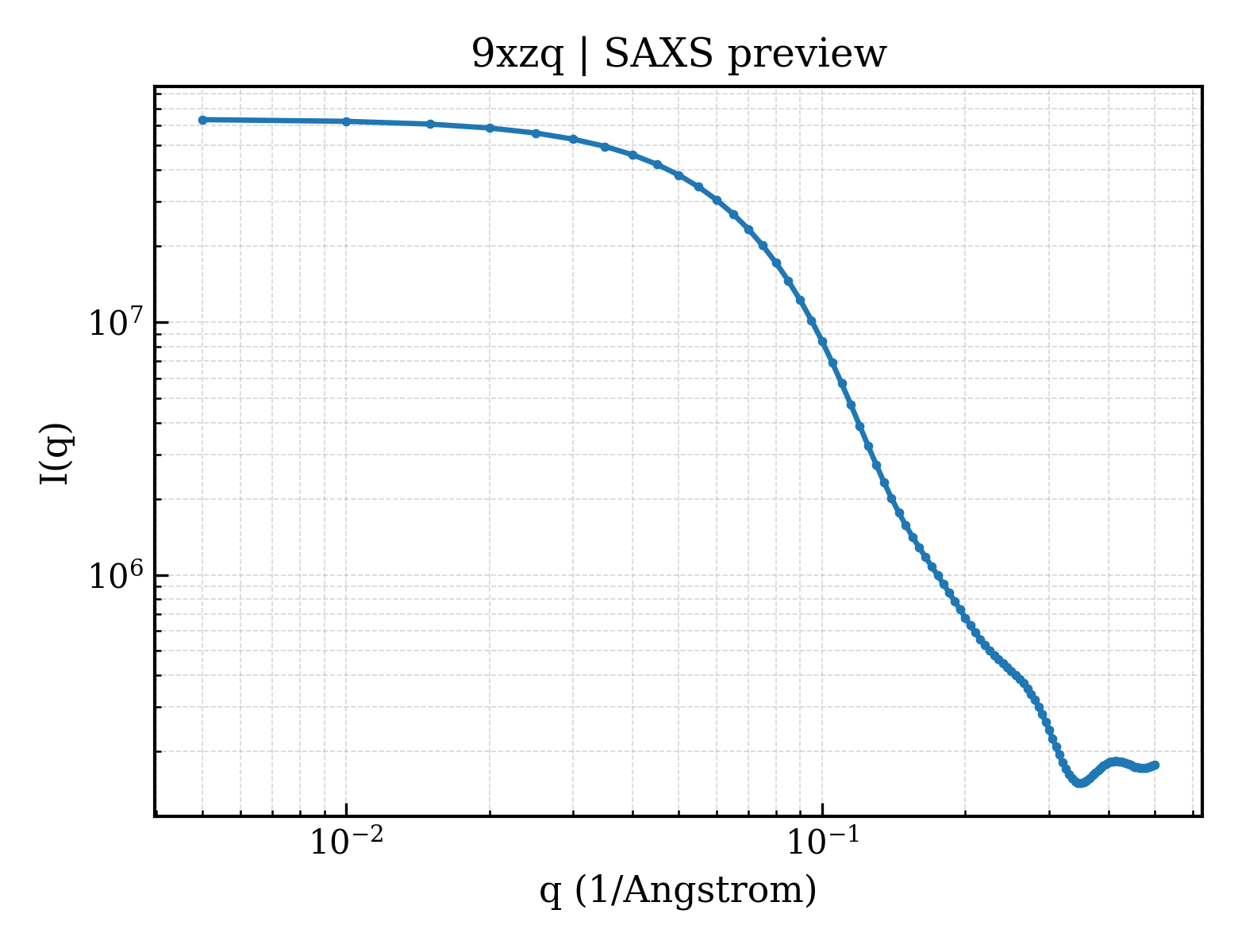

SAXS scattering curve SAXS Profile
