9y00
Zinc Rubredoxin from Pyrococcus Furiosus at 140K, A2 Nterminus

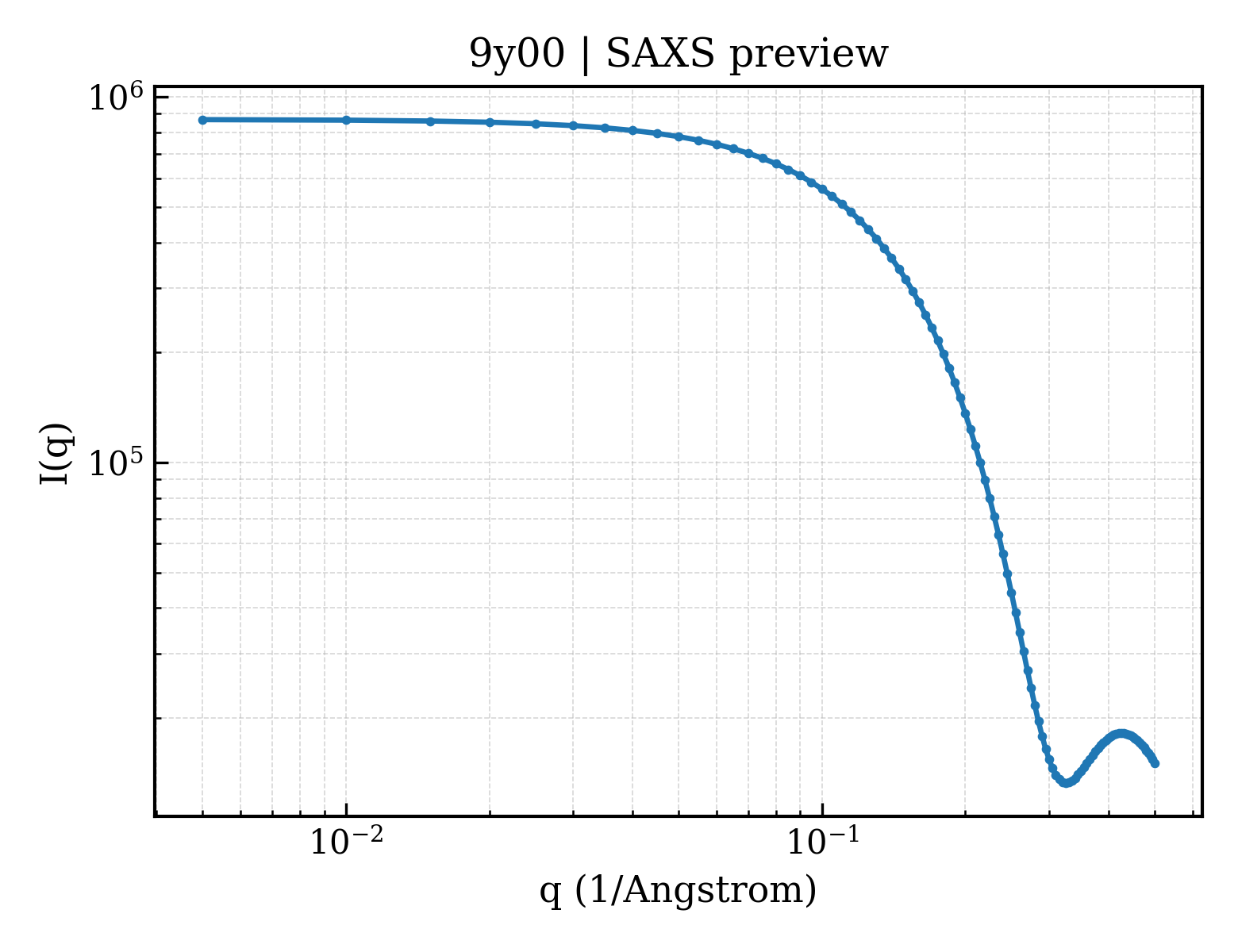

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9y00 |
| deposition_date | 2025-08-28 |
| last_revision | 2026-04-29 |
| title | Zinc Rubredoxin from Pyrococcus Furiosus at 140K, A2 Nterminus |
| keywords | IRON-SULFUR PROTEIN, ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.43 Å |
| rg_electron | 9.98 Å |
| i0 | 868098.00 |
| molecular_weight | 5992.0 kDa |
| excluded_volume | 7399 ų |
| envelope_volume | 7796 ų |
| shell_volume | 6956 ų |
| envelope_diameter | 36.4 Å |
| shell_rg | 15.08 Å |
| envelope_rg | 10.38 Å |
| shape_rg | 9.92 Å |
| total_rg | 11.55 Å |
| total_atoms | 415 |
| n_residues | 53 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 36.4 Å |
| rg_real | 11.36 Å |
| rg_real_error | 0.24 Å |
| i0_real | 8.6810e+05 |
| i0_real_error | 9.4380e+03 |
| rg_reciprocal | 11.37 Å |
| i0_reciprocal | 868100.0000 |
| total_estimate | 0.8874 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.2 Å |
| skewness | 0.119 |
| kurtosis | -0.256 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 89860.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.852; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.978 |
