9y29
Rubredoxin from Pyrococcus Furiosus at 280K, Alanine-2 N terminus
SAXS Profile

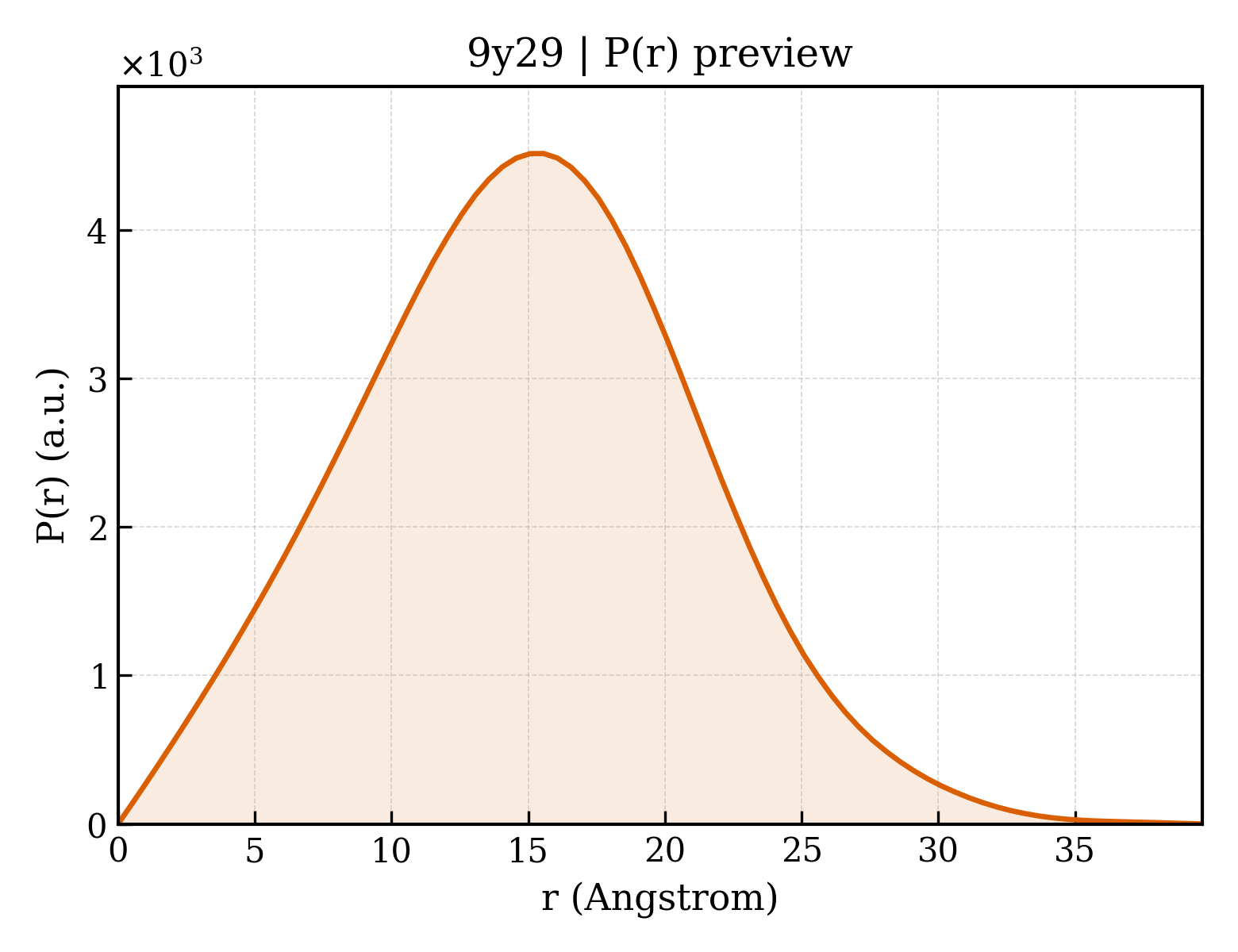

P(r) Distribution
1. Structure Basics
| entry_id | 9y29 |
| deposition_date | 2025-08-31 |
| last_revision | 2026-04-29 |
| title | Rubredoxin from Pyrococcus Furiosus at 280K, Alanine-2 N terminus |
| keywords | IRON-SULFUR PROTEIN, ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.53 Å |
| rg_electron | 10.01 Å |
| i0 | 883780.00 |
| molecular_weight | 5953.0 kDa |
| excluded_volume | 7312 ų |
| envelope_volume | 7839 ų |
| shell_volume | 6981 ų |
| envelope_diameter | 36.2 Å |
| shell_rg | 15.11 Å |
| envelope_rg | 10.42 Å |
| shape_rg | 9.97 Å |
| total_rg | 11.51 Å |
| total_atoms | 414 |
| n_residues | 53 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 39.6 Å |
| rg_real | 11.47 Å |
| rg_real_error | 0.29 Å |
| i0_real | 8.8380e+05 |
| i0_real_error | 9.2840e+03 |
| rg_reciprocal | 11.47 Å |
| i0_reciprocal | 883800.0000 |
| total_estimate | 0.7121 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 15.6 Å |
| skewness | 0.148 |
| kurtosis | -0.203 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 97920.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.719; Stabil: 1.000; Sysdev: 0.368; Positv: 1.000; Valcen: 0.997; Smooth: 0.994 |
