9y32
Rubredoxin from Pyrococcus Furiosus at 373K, formyl-Methionine N-terminus

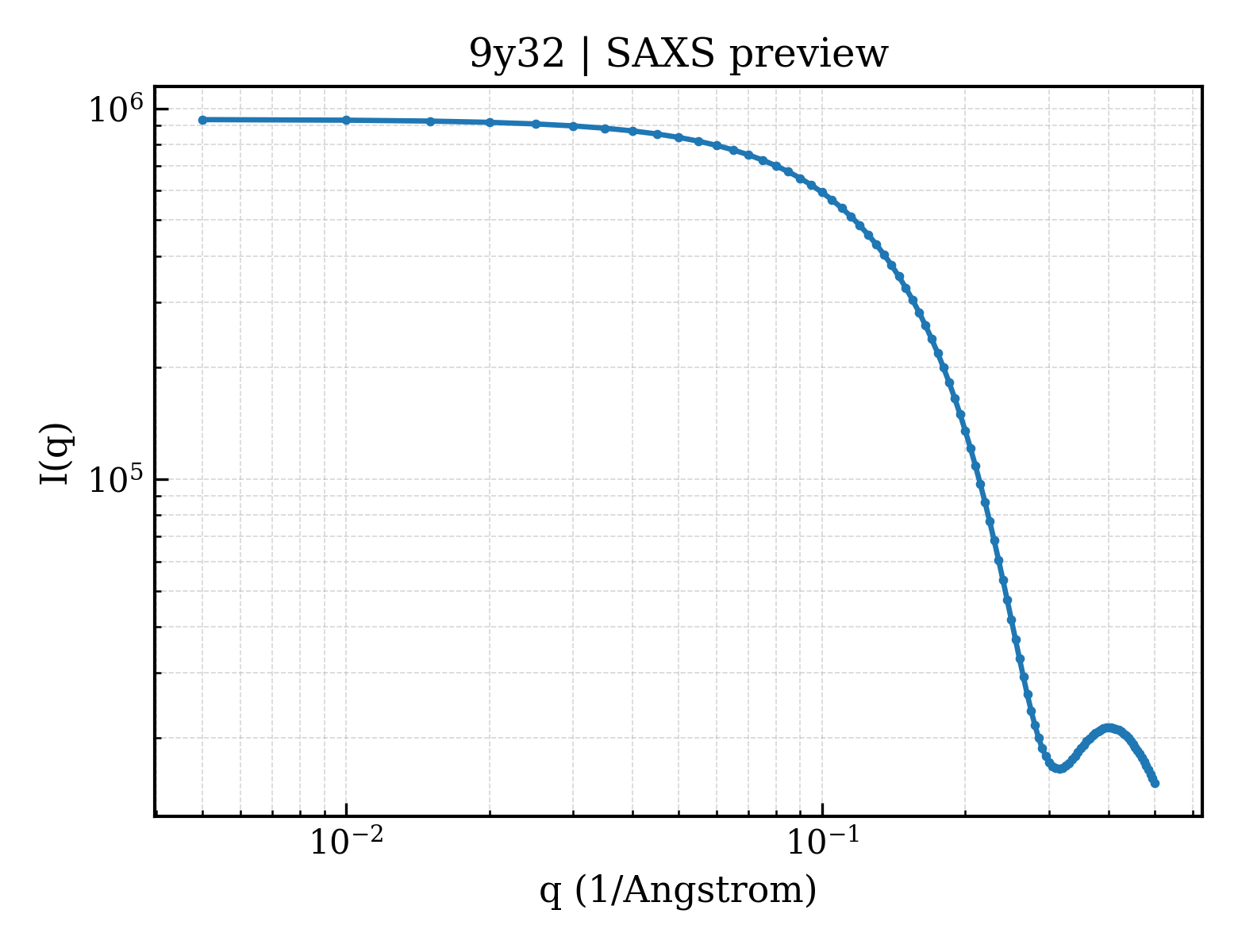

SAXS Profile

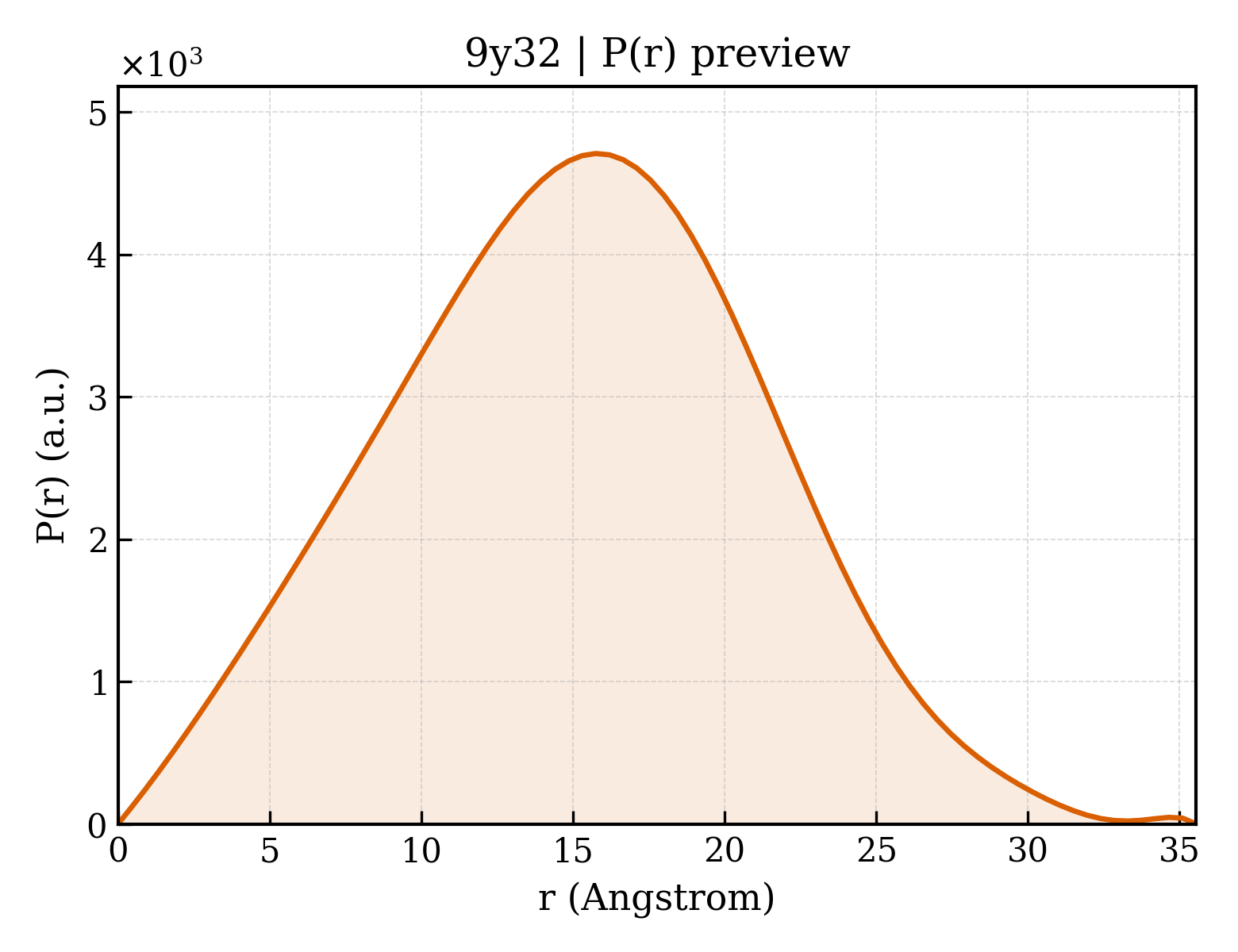

P(r) Distribution
1. Structure Basics
| entry_id | 9y32 |
| deposition_date | 2025-09-01 |
| last_revision | 2026-04-29 |
| title | Rubredoxin from Pyrococcus Furiosus at 373K, formyl-Methionine N-terminus |
| keywords | IRON-SULFUR PROTEIN, ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.62 Å |
| rg_electron | 10.09 Å |
| i0 | 934417.00 |
| molecular_weight | 6112.0 kDa |
| excluded_volume | 7498 ų |
| envelope_volume | 8032 ų |
| shell_volume | 7081 ų |
| envelope_diameter | 34.1 Å |
| shell_rg | 15.20 Å |
| envelope_rg | 10.42 Å |
| shape_rg | 10.05 Å |
| total_rg | 11.60 Å |
| total_atoms | 424 |
| n_residues | 53 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 35.5 Å |
| rg_real | 11.53 Å |
| rg_real_error | 0.19 Å |
| i0_real | 9.3440e+05 |
| i0_real_error | 9.3080e+03 |
| rg_reciprocal | 11.53 Å |
| i0_reciprocal | 934400.0000 |
| total_estimate | 0.9005 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 15.8 Å |
| skewness | 0.041 |
| kurtosis | -0.387 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 76610.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.913; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.992; Smooth: 0.971 |
