9y38
Rubredoxin from Pyrococcus Furiosus at 313K, formyl-Methionine N-terminus

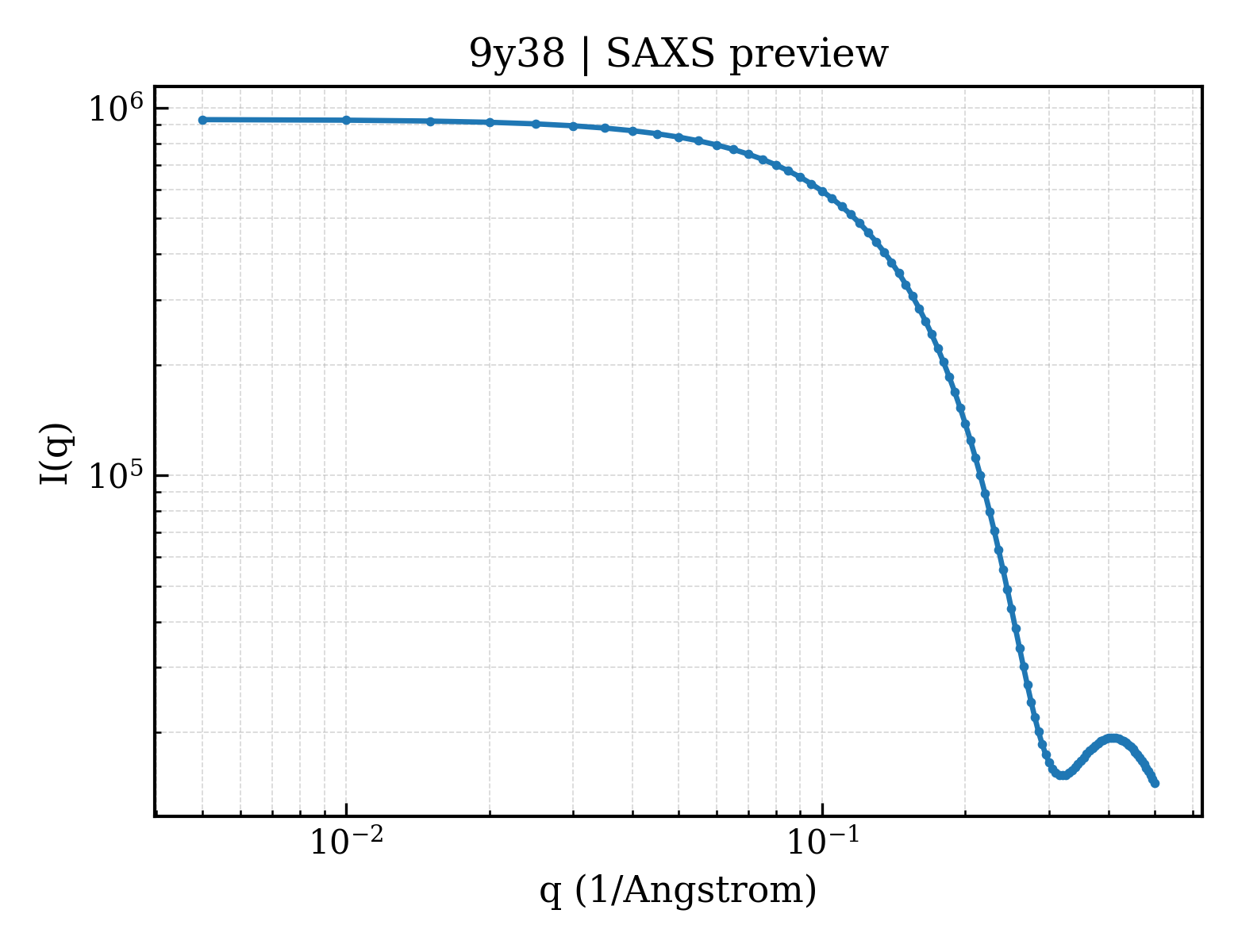

SAXS Profile

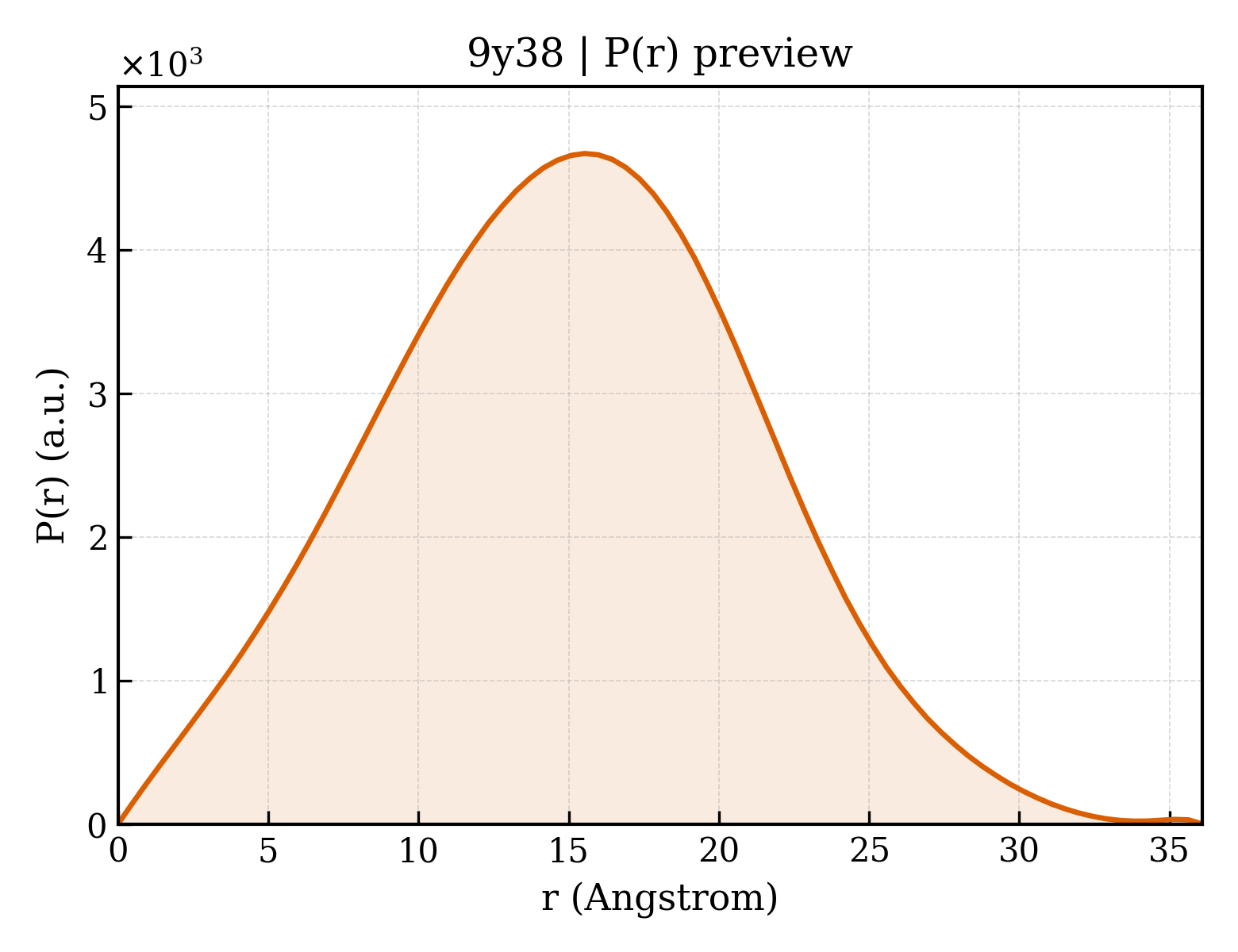

P(r) Distribution
1. Structure Basics
| entry_id | 9y38 |
| deposition_date | 2025-09-01 |
| last_revision | 2026-04-29 |
| title | Rubredoxin from Pyrococcus Furiosus at 313K, formyl-Methionine N-terminus |
| keywords | IRON-SULFUR PROTEIN, ELECTRON TRANSPORT; ELECTRON TRANSPORT |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.55 Å |
| rg_electron | 10.05 Å |
| i0 | 928885.00 |
| molecular_weight | 6112.0 kDa |
| excluded_volume | 7498 ų |
| envelope_volume | 7980 ų |
| shell_volume | 7060 ų |
| envelope_diameter | 33.9 Å |
| shell_rg | 15.19 Å |
| envelope_rg | 10.36 Å |
| shape_rg | 10.00 Å |
| total_rg | 11.56 Å |
| total_atoms | 424 |
| n_residues | 53 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 36.1 Å |
| rg_real | 11.47 Å |
| rg_real_error | 0.27 Å |
| i0_real | 9.2890e+05 |
| i0_real_error | 9.9560e+03 |
| rg_reciprocal | 11.48 Å |
| i0_reciprocal | 928900.0000 |
| total_estimate | 0.8973 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.5 Å |
| skewness | 0.071 |
| kurtosis | -0.351 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 87780.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.891; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.993 |
